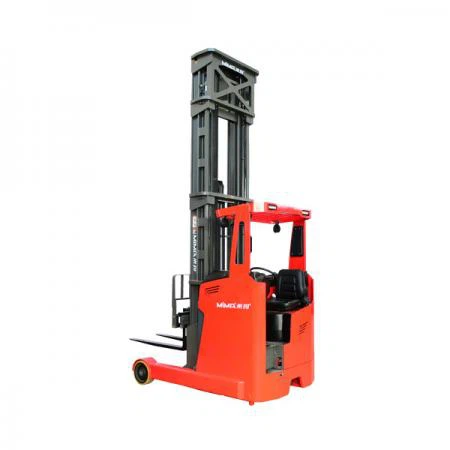

Electric Reach Forklift 2.5m-8m
The TFZ series is a new type of reach forklift with a carrying capacity of 1.6 to 2.0 tons. The mast can be
Move forward or retract as a whole, with a smaller body and turning radius and higher
Send Inquiry
Product Introduction
electric reach forklift 2.5m-8m
| Brand | NOELIFT | NOELIFT | |
| Model | TFZ16H(High-performance mast) | TFZ20H(High-performance mast) | |
| Power type | Battery | Battery | |
| Operation type | Seated | Seated | |
| Rated capacity | Q(kg) | 1600 | 2000 |
| Load center | C(mm) | 500 | 500 |
| Front overhang | x(mm) | 205 | 205 |
| Wheelbase | y(mm) | 1600 | 1600 |
| Service weight(incl. battery) | kg | 4530 | 4670 |
| Wheel type | PU | PU | |
| Load wheel | mm | φ300×120 | φ300×120 |
| Drive wheel | mm | φ350×120 | φ350×120 |
| Auxiliary wheel | mm | / | / |
| Number of wheels,front/rear(x=drive wheel) | 2/ 1X | 2/ 1X | |
| Wheel tread,drive side | b10(mm) | / | / |
| Wheel tread,load side | b11(mm) | 1270 | 1270 |
| Fork tilt | α/β(°) | 3/5 | 3/5 |
| Mast closed height | h1(mm) | 4154 | 4154 |
| Free Lift height | h2(mm) | 3504 | 3504 |
| Lift height | h3(mm) | 10000 | 10000 |
