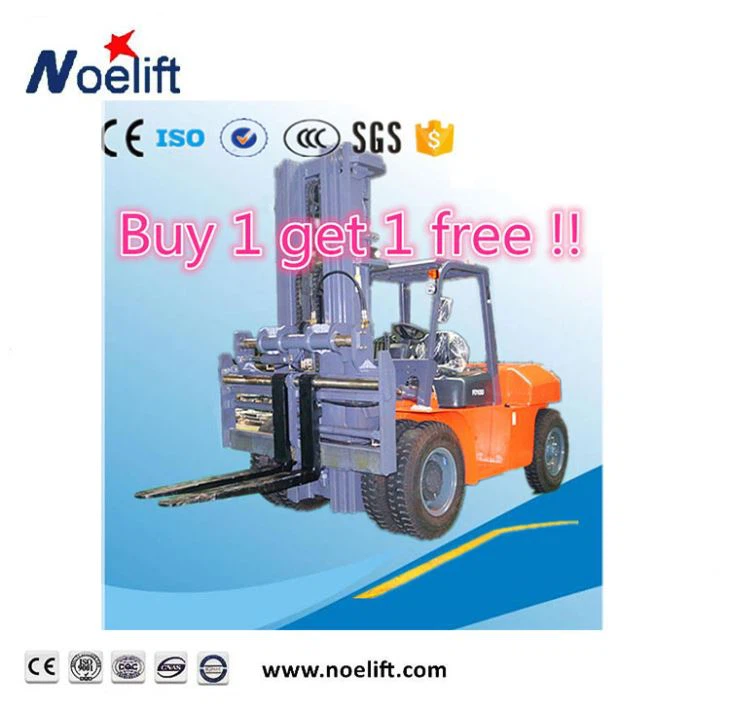

10ton and Above Giant Diesel Forklifts
Wide-view mast gives the operator an enhanced forward visibility, which adds great to the efficiency and safety of operator.
2. High-strength overhead guard
Specially designed solid over-head guard provides additional security for the operator.
3. Ergonomics seat
Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.
10 tons and above large tonnage diesel forklift truck
1. Wide-view mast
Wide-view mast gives the operator an enhanced forward visibility, which adds great to the efficiency and safety of operator.
2. High-strength overhead guard
Specially designed solid over-head guard provides additional security for the operator.
3. Ergonomics seat
Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.
10 tons diesel forklift
1.Environment friendliness
Low noise and exhaust emissions make Noelift forklift environment friendliness.
2.Outstanding comfort
Operation comfort is improved through ergonomic design, enlarged operation space and reasonable layout.
3.Safety and reliability
It is designed to be thougher and more durable
4.Easy maintenance
It is easy to carry out maintenance and thus prolongs truck service life.
5.Excellent working efficiency
The operating performance and efficiency are improved.
10 tons diesel forklift specification
manufacture | NOELIFT | |
Model | FD10 | |
Power type | Diesel | |
Capacity | KG | 10000 |
Load center | Mm | 600 |
Lift height | Mm | 3000 |
Free lift height | Mm | 210 |
Fork size | Mm | 1500*160*80 |
Fork outside spread min/max | Mm | 420/2144 |
Mast tilt angle | Deg | 6/12 |
Front overhang | Mm | 733 |
Length to fork face | Mm | 4258 |
Overall | Mm | 2245 |
Mast lowered height | Mm | 2845 |
Mast extended height | Mm | 4307 |
Overhead guard height | Mm | 2565 |
Turning radius | Mm | 3900 |
Service weight | KG | 12860 |
FAQ:
Direct factory, Competitive price
We are manufacturer.Factory price, various products we can source for you.
OEM/ODM Service
Our professional R&D dept. can develop different products for different target prices and different requirements.
