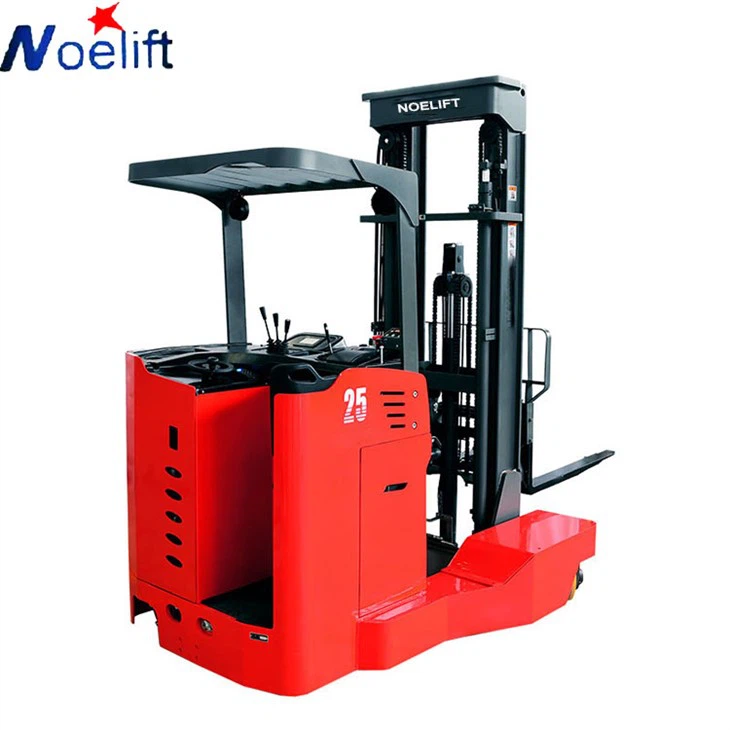

2.5 Tons Four-way Narrow Channel Forklift
2. Full ac system, quick response, accurate control, long life and low energy consumption.
3. Electric power steering + one-key switching function, fast switching between direct mode and side mode, high stacking efficiency.
4. Imported gear pump, full buffer hydraulic cylinder, the whole vehicle action is smooth, along the road pressure loss, low noise.
Products Description
2.5 tons four-way narrow channel forklift feature
TFB15/TFB25 series forklifts are four-way forklifts suitable for stacking in narrow roadways and transporting long materials with lifting height of 3.0m ~ 8.0m.Compared with ordinary forklift truck, it has the function of driving sideways, so it is mainly used to fork long strip of goods, such as metal profile, steel bar, plate, etc.
Significant advantages:
●Narrow roadway stacking
●Horizontal handling of long materials
●Improve storage utilization
●High cost performance
1. Four-way driving, suitable for narrow roadway stacking operation, straight line, side line switch with one button, simple operation, rapid reversing, high efficiency, few faults.
2. Full ac system, quick response, accurate control, long life and low energy consumption.
3. Electric power steering + one-key switching function, fast switching between direct mode and side mode, high stacking efficiency.
4. Imported gear pump, full buffer hydraulic cylinder, the whole vehicle action is smooth, along the road pressure loss, low noise.
5. Imported controller, precise control, simple setting of electric control parameters, powerful function and low failure rate.
6. All imported hydraulic hose, wear resistance, tensile resistance, longer service life.
7. Cast steel drive box, standard with high strength polyurethane tires, smooth driving, reliable braking.
8. Hd display of real-time driving wheel, easy to fine tune the inside direction of narrow roadway, safe and reasonable, accurate identification.
9. Large capacity special power battery, strong power, safe and reliable, convenient charging, long cycle life, low maintenance cost.
2.5 tons four-way narrow channel forklift parameters
|
Manufacturer/brand |
NOELIFT |
|
|
Model |
TFB2530 |
TFB2545SQ |
|
Power type |
Battery |
Battery |
|
Loading capacity |
2500kg |
2500kg |
|
Loading center |
500mm |
500mm |
|
Tire type front/rear |
Solid PU/Solid PU |
Solid PU/Solid PU |
|
Lifting height |
3000mm |
4500mm |
|
Mast height(closed) |
2082mm |
2292mm |
|
Overhead guard height |
2265mm |
2265mm |
|
Overall length |
2250mm |
2300mm |
|
Overall width |
1725mm |
1725mm |
|
Fork size |
920 100 45mm |
920 100 45mm |
|
Turning radius |
1975mm |
1975mm |
|
Driving motor type |
AC |
AC |
|
Driving motor power |
5.5kw |
5.5kw |
|
Lifting motor type |
AC |
AC |
|
Lifitng motor power |
8.6kw |
8.6kw |
|
Battery |
48V/400Ah |
48V/400Ah |
Products Certificaions
Our Services
1. One-stop solution service.
2. Customized-service all accepted
3. Customer service is in time.
4. Warranty: 12 months.
Any questions please feel freely to contact me, I will reply asap!
Noelift would love to provide most professional service to you!
Company Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
