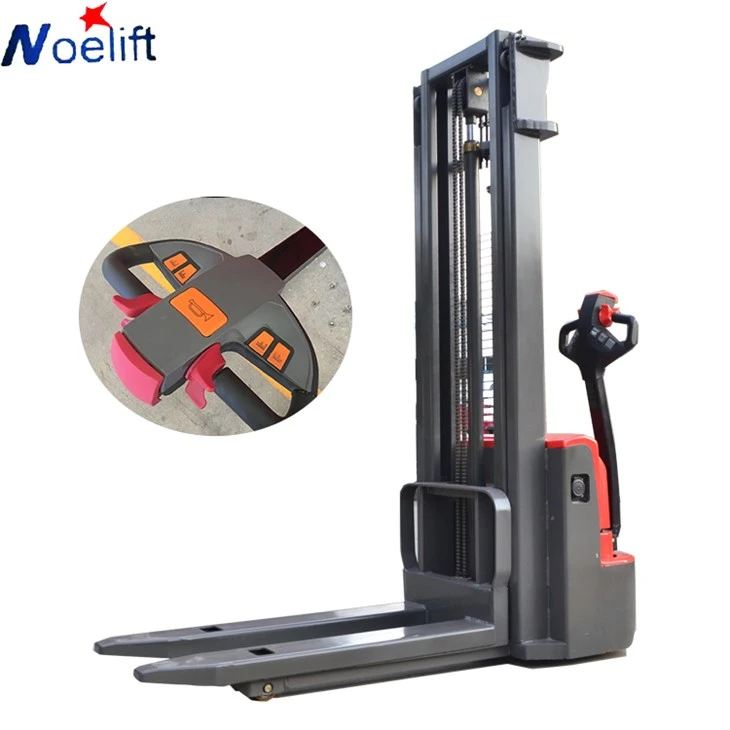

Economic Electric Pallet Stacker
video

Economic Electric Pallet Stacker

Features
1: Smart body, with attractive appearance. High-strength frame designed for tough pallet handling tasks.
2: Lower consumption, Lower service cost, while higher performance.
3: 24V/65AH(80AH optional) maintenance free battery contributes to strong power and easier operation.
4: Compact structure and reasonable layouts provides steadiness and durability during operation.
Send Inquiry
Product Introduction

Economic electric stacker Description







Features



1: Smart body, with attractive appearance. High-strength frame designed for tough pallet handling tasks.



2: Lower consumption, Lower service cost, while higher performance.



3: 24V/65AH(80AH optional) maintenance free battery contributes to strong power and easier operation.



4: Compact structure and reasonable layouts provides steadiness and durability during operation.



Performance



1: Ergonomically designed and built Handle is increasing your comfort during operation. Dustproof and sealing structure prevent it from dust pollution damages and improve service life.



2: Intelligent and modular controlling system ensures the steadiness and safety for walking, lifting, lowering and braking.



3: Handle is utilized for easier operation and less turing radius, suitable for confined space and narrow aisle.



Safety



1: The Anti-Reverse safety button mounted at the top of the handle reverses the truck direction to prevent the operator from being caught between the truck and the obstacle on unexpected occasions.



2: Intelligent controller takes protection measures in case of over voltage, low voltage, over current, over temperature and short circuit occasions.



3: Especially innovated speed deceleration system automatically reduces the travel speed when turning and greatlyimproved the loading stability, avoiding possibility of load tipping over and making operate safer.(Optional)



Serviceability



1: Self-Diagnostics provided direct fault code readout during operation and start up, which is ease of service andmaintenance.



2: 24V/65AH(80AH optional) maintenance free battery contributes to strong power and easier operation, meeting most requirements for light and medium duty applications



3: Built-in charger practically eliminates contamination entry, which can result in failure.



WALKING PALLET STACKING VEHICLE



Important parameters





Condition

new

Place of Origin

Zhejiang, China (Mainland)

Brand Name

NOELIFT

Model Number

ESC10M, ESC15M

Type

Powered Pallet Truck

Power Source

DC Motor

Rated Loading Capacity

1000-1500kg

Max. Lifting Height

3000mm

Min. Lifting Height

1600mm

Fork Size

1150x160x50mm

Overall Dimensions

1716x800x2150mm

electric stacker drive speed

5.5km/h

electric stacker lifting motor

2.20kw DC

electric stacker drive motor

0.75kw DC

electric stacker battery

24/80V/Ah

electric stacker lifting speed

0.22m/s

electric stacker controller

PG/CURTIS

tire type

PU

parking brake

electrimagnetic

electric stacker color

red/green





Packaging & Delivery



Packaging Details: International packing way, packed with thick plastic film.



Delivery Detail: 15days after the advance payment



FAQ:



Quick response



All requests will be reply within 12 hours.



Q: What can you get from us?



A: Excellent products (unique design,Advanced logistics and transportation equipment,strict quality control ) Factory direct sale (favorable and competitive price) Great service(OEM,ODM, after-sales services, fast delivery) Professional business consultation.

Products Certifications





certificates

Company Information







NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!



201912101521272831736 201912101521275589933

Hot Tags: economic electric pallet stacker, China economic electric pallet stacker manufacturers
