China Self Loading Stacker Forklift
video

China Self Loading Stacker Forklift

Manufacturer:Noelift
Model:CDD
Capacity:500kg
Lifting height:800-1300mm
Send Inquiry
Product Introduction

China Self Loading Stacker Forklift advanage





    Small and easy operation.

  1. Electric lifting,effortless.

  2.

  3. Stable structure and safer

Products paramater







Manufacturer     NOELIFT
Model     CDD05Z
Operation     Manual Driving, Electrical Lifting
capacity kg 500 500 500
loading center mm 400 400 400
wheelbase mm 860 860 860
front wheel distance mm 380 380 380
rear track mm 670 670 670
min.fork height mm 90 90 90
max.fork height mm 800 1000 1300
steeling wheel mm Φ100x45 Φ100x45 Φ100x45
loading wheel mm Φ70x60 Φ70x60 Φ70x60
overall lenghth mm 1600 1600 1600
overall width mm 780 780 780
fork size mm 1150*540 1150*540 1150*540
forkwidth mm 535 535 535
turning radius mm 1100 1200 1200
lifting speed mm/s 80 80 80
descent speed mm/s 90 90 90
lifting motor power kw 12v/0.8 12v/0.8 12v/0.8
battery V/AH 12/45 12/45 12/45
type of driving   pedestrian pedestrian pedestrian
material of wheel   Polyurethane Polyurethane Polyurethane
net weight kg 193 200 219

Products display

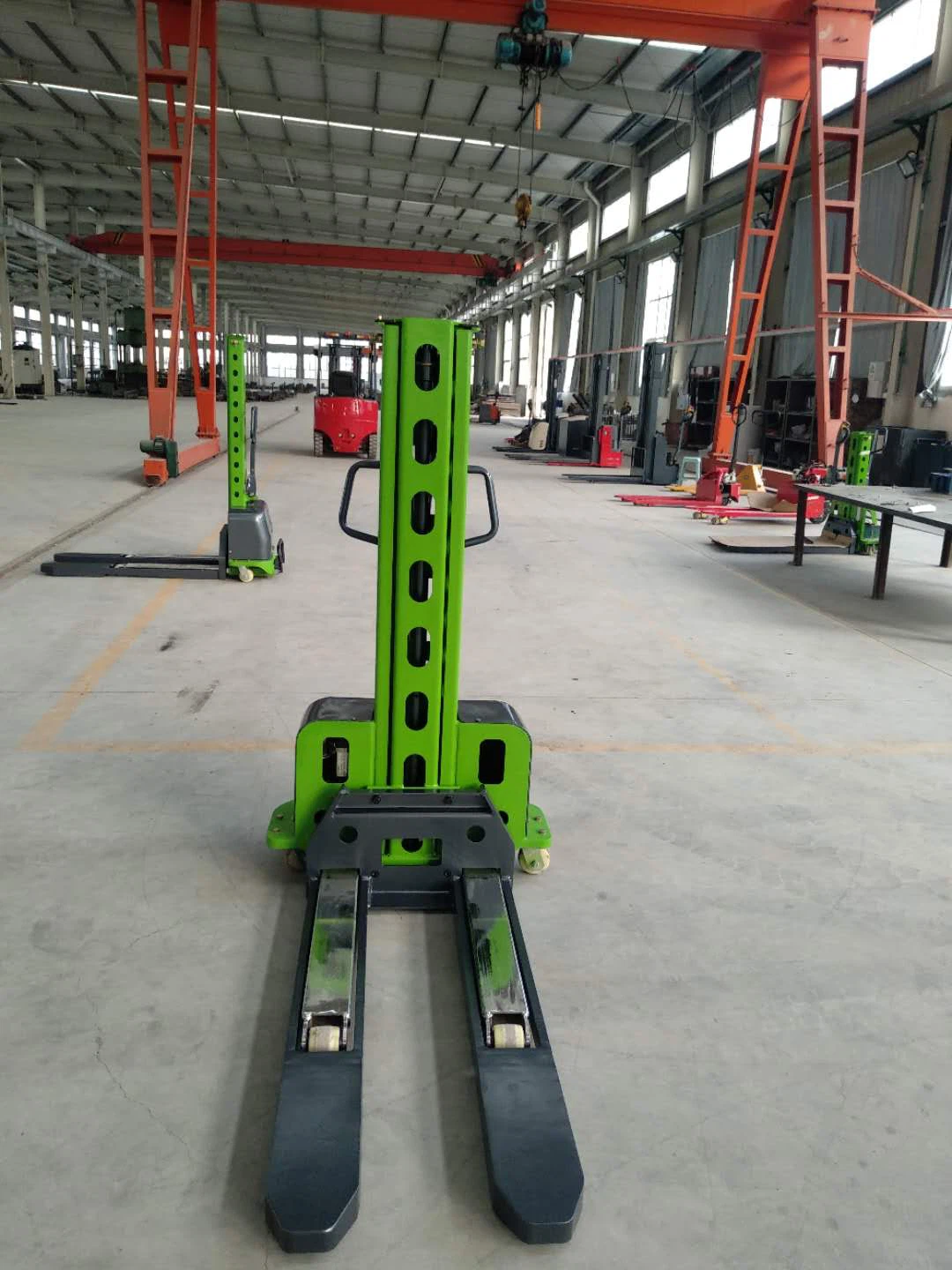

CDD0512 (5)

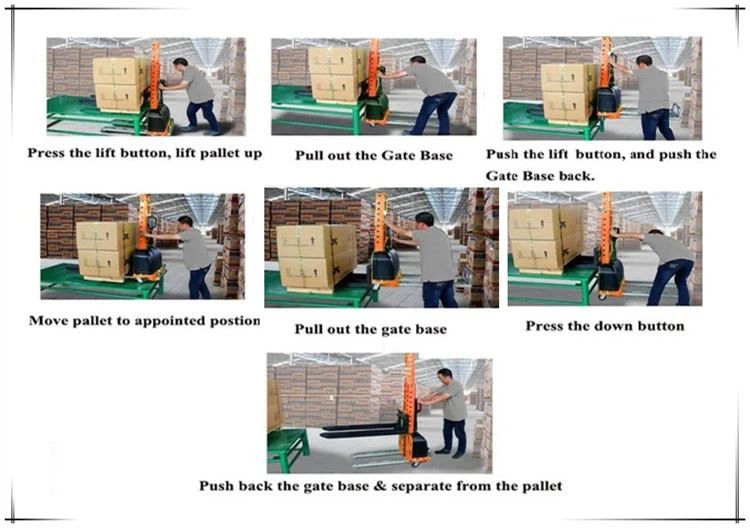

CDD usage

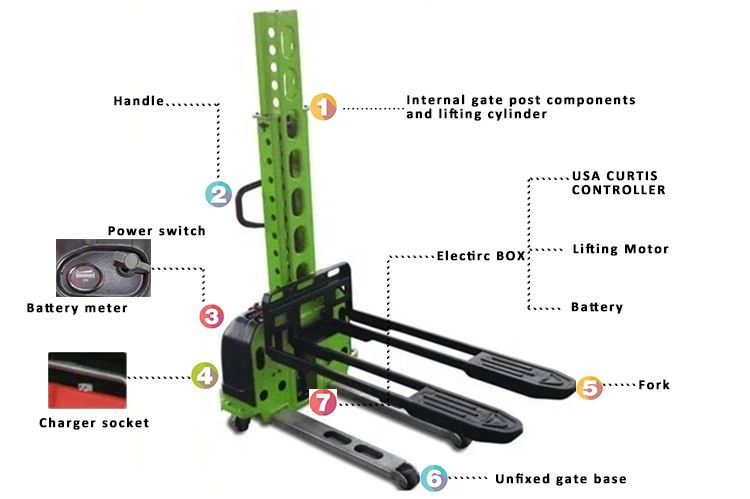

CDD-Details



our company





  NOELIFT EQUIPMENT CO.,LTD,as one of the professional materyal handling equipment manufacturer.The full range encompassess close to 100 different models.

We have inversted two industrial base in Hefei city and Luan city of Anhui province and Zhejiang province.The company have advance producting equipment with automatic painting line,vechicle assembly line,CNC flame plasma cutting machine,drilling machines,system intergrated coating equipment,as well as international advanced performance testing of production line,which all are fully guanranteed our products quality and ensure the business growth.

Hot Tags: china self loading stacker forklift, China china self loading stacker forklift manufacturers
