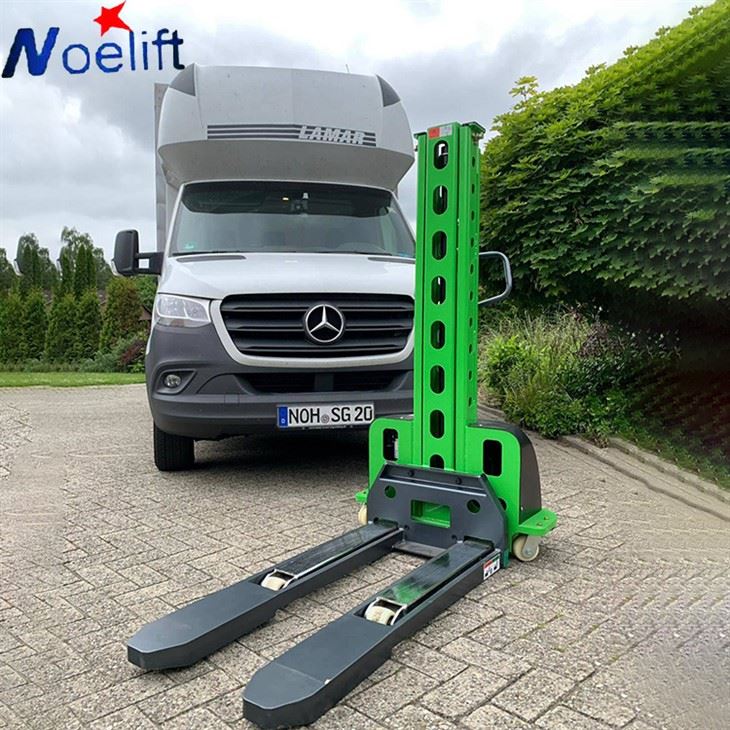

CE 500kg Self Loading Stacker Stock 0.5 Ton Electric Stacker



Self load stacker is a mechanical device that can realize intelligent cargo transportation. Its scope of application is very wide, and it can be used in warehouses, factories, logistics centers, airports and other places, especially in the field of internal transportation in warehouses and other places, and its role is more prominent.
Self load stacker has many advantages. First, it can realize automatic loading and unloading of goods, which greatly improves the efficiency of goods transportation and reduces the labor intensity of personnel. In addition, the Self load stacker also has an intelligent control system, which can realize fully automatic operation and improve the accuracy of the operation. In addition, the durability of the Self load stacker is also very good, and the operator can use it for a long time without frequent maintenance or replacement of parts, which greatly reduces the cost of use.





Features	1.1	Model			CDD05Z
	1.2	Power unit			Battery
	1.3	Rated capacity	Q	kg	500
	1.4	Load center	c	mm	400
	1.5	Wheel base	L0	mm	758
	1.6	Front track base	W1	mm	380
	1.7	Rear track base	W2	mm	665
	1.8	Operator type			Pedestrian/Standing
Tyres	2.1	Tyre type(Front/Rear)			Nylon
	2.2	Balance/Load wheels			2/2
	2.3	Load wheel size		mm	Φ70×60
	2.4	Balance wheel size		mm	φ100×45
Demension	3.1	Lowered Fork height	H2	mm	85
	3.2	Max.lifting height	H	mm	1200
	3.3	Max.fork width	W3	mm	535
	3.4	Fork length	L2	mm	1150
	3.5	Fork width×Fork thickness	B	mm	155×60
	3.6	Overall length	L1	mm	1570
	3.7	Total width	W	mm	786
	3.8	Overall height(Mast closed)	H1	mm	1597
	3.9	Overall height(Fork lowering)	H3	mm	1618
	4.0	Min.turning radius	Wa	mm	1100
Performance	4.1	Lifting speed		mm/s	55
	4.2	Lowering speed		mm/s	70
	4.3	Lifting motor power		kW	DC0.8
	4.4	Battery voltage		V	12
	4.5	Battery capacity		Ah	45
Weight	5.1	Battery weight		kg	13.5
	5.2	Operating weight(with battery)		kg	245



Noelift always treat after-sale service more important than sale. Nowadays more than 30 agents around the world can supply LTMG professional after-sale service. All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty. Detail clauses and policies please check our website and product certificate.



Q: I want to transport the truck by container, is it ok?



A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.



Q:How about your product quality?



A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.



Q:I want to be your agent in my country , is that ok?



A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.



Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?



A: We can make the tyres as your requirement to suit your country's need.



NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
