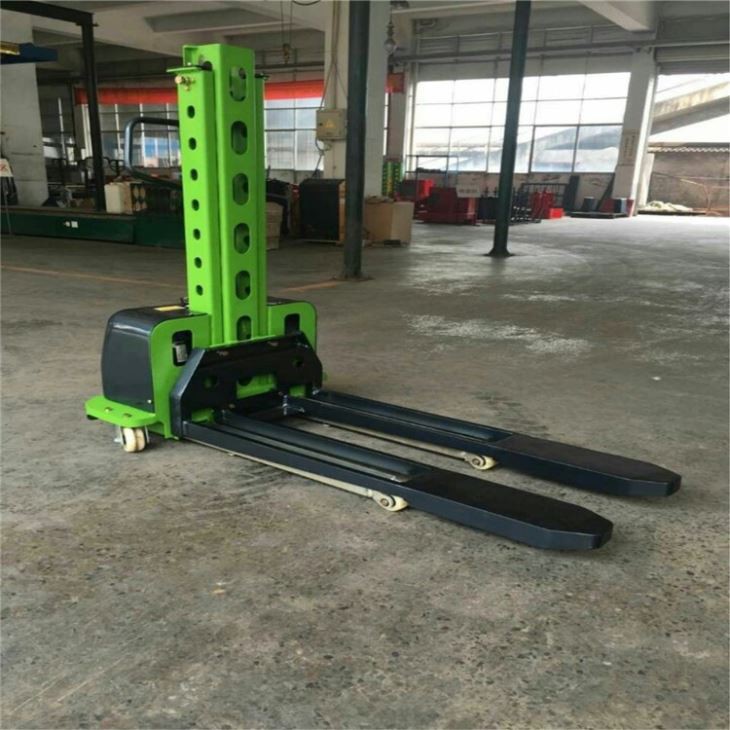

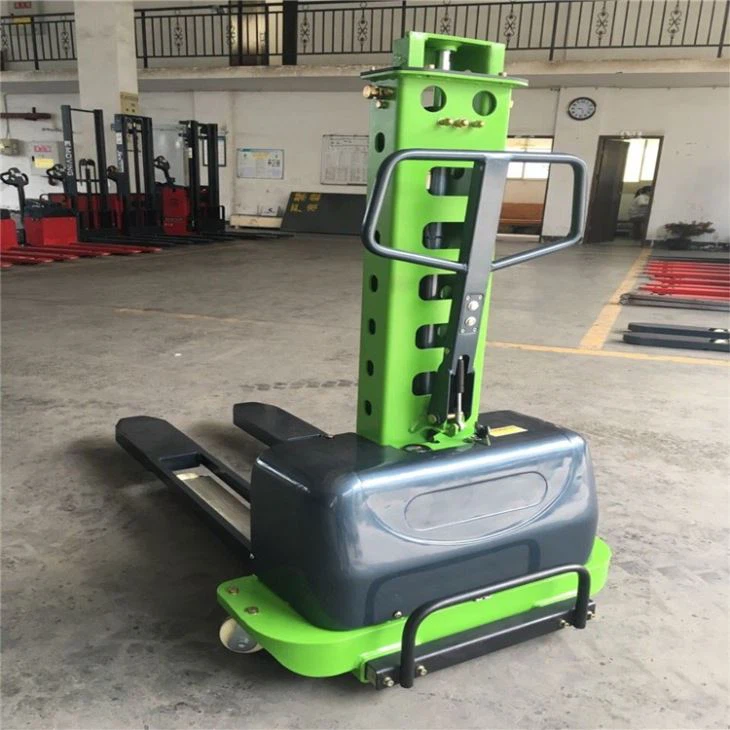

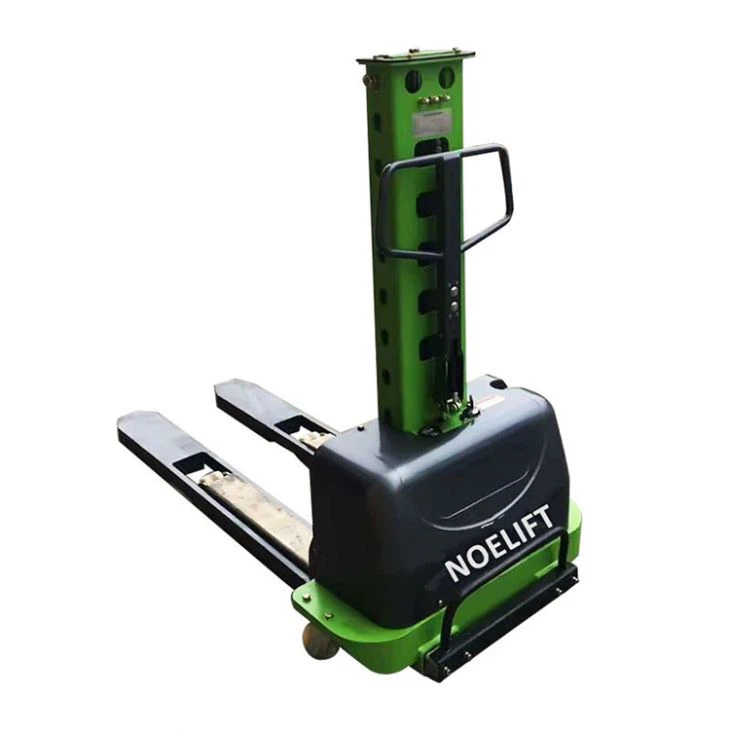

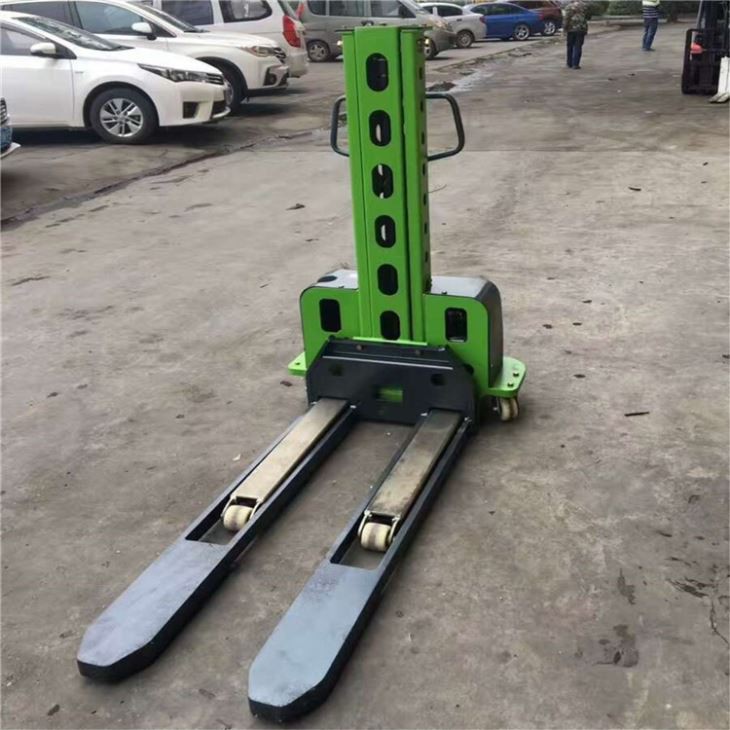

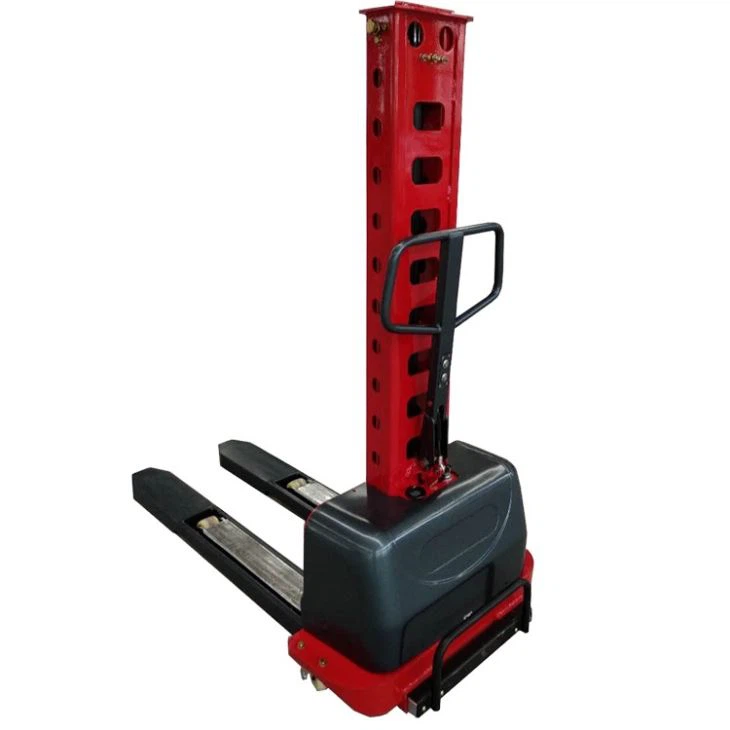

Pallet Stacker Hydraulic Flexible Stacker
1. Load capacity: 1300kg
2. Lifting height：800mm,1000mm, 1300mm and 1700mm
3. Type of operation： electric in driving and lifting
4. Battery: 48V 15Ah Lithium (20Ah as option)
5. Charging time: 5hours
6. Working time : 40work cycles for 15Ah/50work cycles for 20Ah（load/unload to/from truck with cargo+60m driving distance we called 1 work cycle）
self loading electric stacker Specifications
Self-loader forklifts designed for vans and light trucks offer streamlined cargo handling solutions. After loading, the self-loader effortlessly maneuvers into the vehicle, requiring no more space than a hand pallet truck. Unloading is equally straightforward, ensuring efficiency throughout the process.
Efficiency Equipped with a self-loader and vehicle, you can securely load, unload, and deliver cargo to clients swiftly. Fast operations enable increased delivery capacity, enhancing productivity.
Safety Designed ergonomically for simplicity, it minimizes health and safety risks, reducing strain and potential sick days. Operated easily and safely, it ensures a secure working environment.
High Quality Meticulous planning, premium standard components, and meticulous manufacturing guarantee dependable, durable products. CE-marked and meeting global quality standards, it ensures reliability.
Features:
Advanced self-loading pallet stacker.
Semi or fully powered electric solutions tailored to vehicle and delivery requirements.
Self-propelled for effortless operation.
Convenient self-loading onto vans.
Portable for versatile usage.
Enables single-person deliveries, saving on labor costs.
Specifiction parameters
| Manufacturer | NOELIFT | |||
| Model | CDD05Z | |||
| Operation | Manual Driving, Electrical Lifting | |||
| capacity | kg | 500 | 500 | 500 |
| loading center | mm | 400 | 400 | 400 |
| wheelbase | mm | 860 | 860 | 860 |
| front wheel distance | mm | 380 | 380 | 380 |
| rear track | mm | 670 | 670 | 670 |
| min.fork height | mm | 90 | 90 | 90 |
| max.fork height | mm | 800 | 1000 | 1300 |
| steeling wheel | mm | Φ100x45 | Φ100x45 | Φ100x45 |
| loading wheel | mm | Φ70x60 | Φ70x60 | Φ70x60 |
| overall lenghth | mm | 1600 | 1600 | 1600 |
| overall width | mm | 780 | 780 | 780 |
| fork size | mm | 1150*540 | 1150*540 | 1150*540 |
| forkwidth | mm | 535 | 535 | 535 |
| turning radius | mm | 1100 | 1200 | 1200 |
| lifting speed | mm/s | 80 | 80 | 80 |
| descent speed | mm/s | 90 | 90 | 90 |
| lifting motor power | kw | 12v/0.8 | 12v/0.8 | 12v/0.8 |
| battery | V/AH | 12/45 | 12/45 | 12/45 |
| type of driving | pedestrian | pedestrian | pedestrian | |
| material of wheel | Polyurethane | Polyurethane | Polyurethane | |
| net weight | kg | 193 | 200 | 219 |
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Products Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
