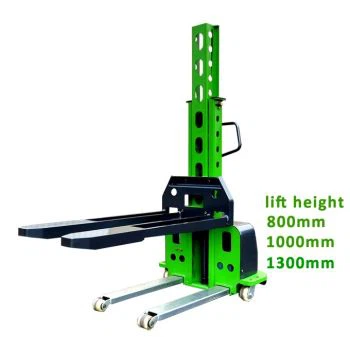

Self Lift Hand Powered Forklift
The self loader is a Pallet & Freight loader that is designed for vans and other commercial vehicles.
It is the only Electrical lift loader that lifts a wide range of goods to a range of heights and then lifts itself in and out of the delivery vehicle.
load capacity: 500kg, lift height, 800mm, 1m & 1.3m optional.
Noelift Self lift Hand Powered Forklift has the following features:
Lightweight body design, while ensuring the strength of the body, energy- saving and efficient, to maximize the use of battery time.
Use high-quality Superposition valve assembly to ensure smooth and safe commutation
Chromium plating on leg, brighter and smoother surface, flexible and labor-saving operation
Four-wheel structure design, better stability and stronger bearing capacity.
Humanized 4-Button design, each 2buttons at front and back side, easy to operation; make sure always with the good button to work normally when the other side button was broken during the high frequency operation quick change battery designed, longer the working time .

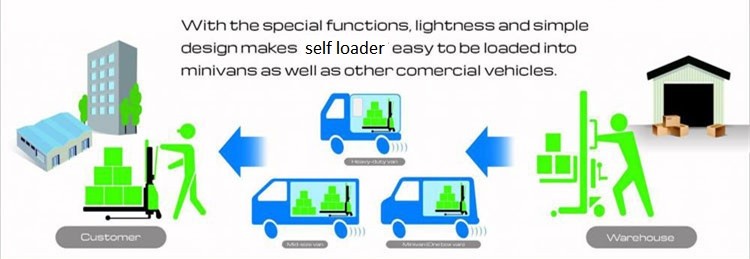

How to works?
Suitable for Open-Bottom (European style) pallets in a variety of sizes
Product Parameter
| 1 | Model | CDD05Z | ||
| 2 | Brand | NOELIFT | ||
| 3 | Operation | Manual Driving, Electrical Lifting | ||
| 4 | Capacity | 500Kg | 500Kg | 500Kg |
| 5 | Weight | 193Kg | 200Kg | 219Kg |
| 6 | Lift Height | 800mm | 1000mm | 1300mm |
| 7 | Height in Lowerd Position | 1200mm | 1400mm | 1600mm |
| 8 | Overall length | 1600mm | 1600mm | 1600mm |
| 9 | Overall width | 786mm | 786mm | 786mm |
| 10 | Fork Length | 1250mm | 1250mm | 1250mm |
| 11 | Fork Width | 540mm | 540mm | 540mm |
| 12 | Material of Wheels | Polyurethane | Polyurethane | Polyurethane |
| 13 | Steering wheel size | 100x45 | 100x45 | 100x45 |
| 14 | Loading wheel size | 70x60 | 70x60 | 70x60 |
| 15 | Motor Power Lifting | 0.7kw | 0.7kw | 0.7kw |
| 16 | Battery | 12/45V/Ah | 12/45V/Ah | 12/45V/Ah |
| 17 | Charger Battery | inclusive | inclusive | inclusive |
| 18 | Brake Type | Mechanical | Mechanical | Mechanical |
| 19 | Lifting speed | 80Mm/s | 80Mm/s | 80Mm/s |
| 20 | Descend speed | 90Mm/s | 90Mm/s | 90Mm/s |
| 21 | Turning radius | 1100Mm | 1200Mm | 1200Mm |
