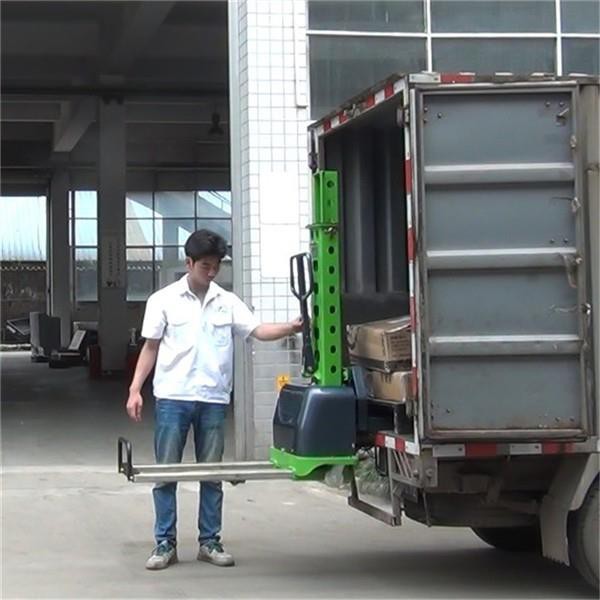

Portable Forklift
Advantages:
1. Portable mini machine
2.Tight structure ensure Low overall height, enter van/cargo without problem
3. Lady can operate it freely!
Eliminate the need for expensive truck liftgates and heavy pallet jacks. The NOELIFT Self-Loader is a revolutionary electrical lift loader specifically engineered for vans, delivery vehicles, and commercial fleets.
It is the market's premier electrical lifting solution designed not just to hoist heavy freight, but to lift itself seamlessly into and out of your delivery vehicle alongside the cargo.
Technical Specifications & Fleet Compatibility
| 1 | Model | CDD05Z | ||
| 2 | Brand | NOELIFT | ||
| 3 | Operation | Manual Driving, Electrical Lifting | ||
| 4 | Capacity | 500Kg | 500Kg | 500Kg |
| 5 | Weight | 193Kg | 200Kg | 219Kg |
| 6 | Lift Height | 800mm | 1000mm | 1300mm |
| 7 | Height in Lowerd Position | 1200mm | 1400mm | 1600mm |
| 8 | Overall length | 1600mm | 1600mm | 1600mm |
| 9 | Overall width | 786mm | 786mm | 786mm |
| 10 | Fork Length | 1250mm | 1250mm | 1250mm |
| 11 | Fork Width | 540mm | 540mm | 540mm |
| 12 | Material of Wheels | Polyurethane | Polyurethane | Polyurethane |
| 13 | Steering wheel size | 100x45 | 100x45 | 100x45 |
| 14 | Loading wheel size | 70x60 | 70x60 | 70x60 |
| 15 | Motor Power Lifting | 0.7kw | 0.7kw | 0.7kw |
| 16 | Battery | 12/45V/Ah | 12/45V/Ah | 12/45V/Ah |
| 17 | Charger Battery | inclusive | inclusive | inclusive |
| 18 | Brake Type | Mechanical | Mechanical | Mechanical |
| 19 | Lifting speed | 80Mm/s | 80Mm/s | 80Mm/s |
| 20 | Descend speed | 90Mm/s | 90Mm/s | 90Mm/s |
| 21 | Turning radius | 1100Mm | 1200Mm | 1200Mm |
Why NOELIFT Stands Out in Structural Integrity and Durability:
Seamless Rectangular Tubing Legs
Unlike standard welded profiles that are prone to stress fractures, our fork legs are engineered using one-piece seamless structural steel tubing, providing vastly superior structural rigidity and lifting safety.
High-Strength Alloy Steel Frame
Built with advanced lightweight yet high-tensile alloy steel. This minimizes the machine's deadweight to protect your vehicle's payload capacity while maintaining industrial-grade robustness.
Premium Hydraulic System with Japanese NOK Seals
Engineered for zero-leakage. The hydraulic unit utilizes industry-leading NOK seals to guarantee stable hydraulic pressure, smooth lifting, and an exceptionally long service life.
Advanced 4-Button Smart Control
Features an ergonomic 4-button control layout. It provides simple, precise, and responsive maneuvering while incorporating energy-saving technology to preserve battery life.
High-Stability 4-Wheel Base Design
Precision-engineered 4-wheel configuration ensures maximum ground contact and tipping resistance during both ground transport and the self-loading process.
En-Route Fleet Charging & Heavy-Duty Battery
Equipped with an extended-capacity battery pack for prolonged operation. Crucially, it charges en route inside your delivery vehicle, ensuring it is always powered up for the next stop.
Core Business Advantages & ROI for B2B Buyers
1
No need to send a driver and a helper for heavy deliveries. A single operator can manage the entire loading, transit, and unloading cycle effortlessly, significantly reducing fleet labor overhead.
2
Unlike external tail-lifts or traditional open trailers, this portable forklift rides inside the vehicle, completely protected from harsh weather, road grime, and theft.
3
Manual lifting is the leading cause of logistics injuries. Our fully powered electrical lift prevents acute delivery accidents and workplace strain, keeping your workforce safe and compliant with regional occupational safety regulations.
4
Because the machine does 100% of the heavy lifting and features an ultra-intuitive control interface, delivery routes are no longer restricted to heavy-lifting personnel. Anyone can operate it safely with zero training barriers.
