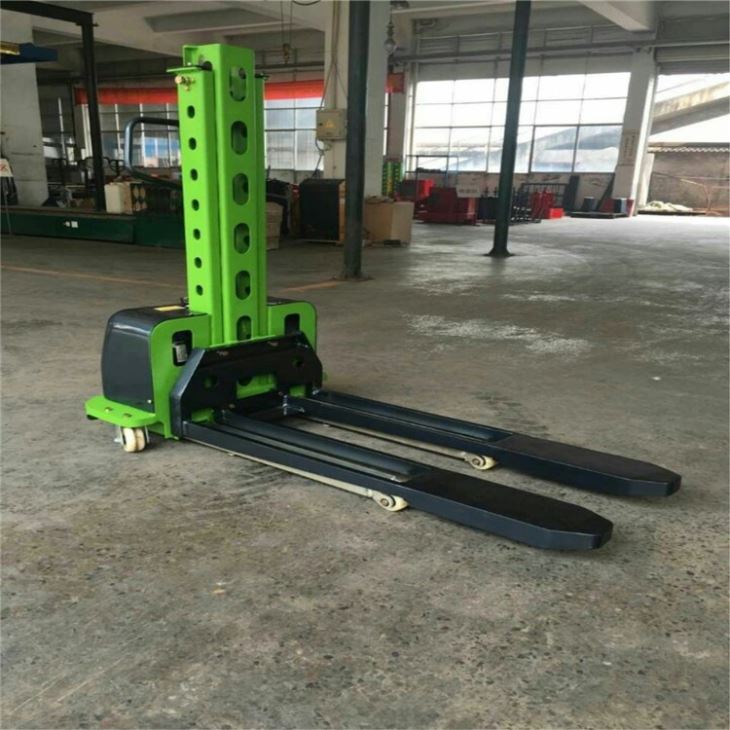

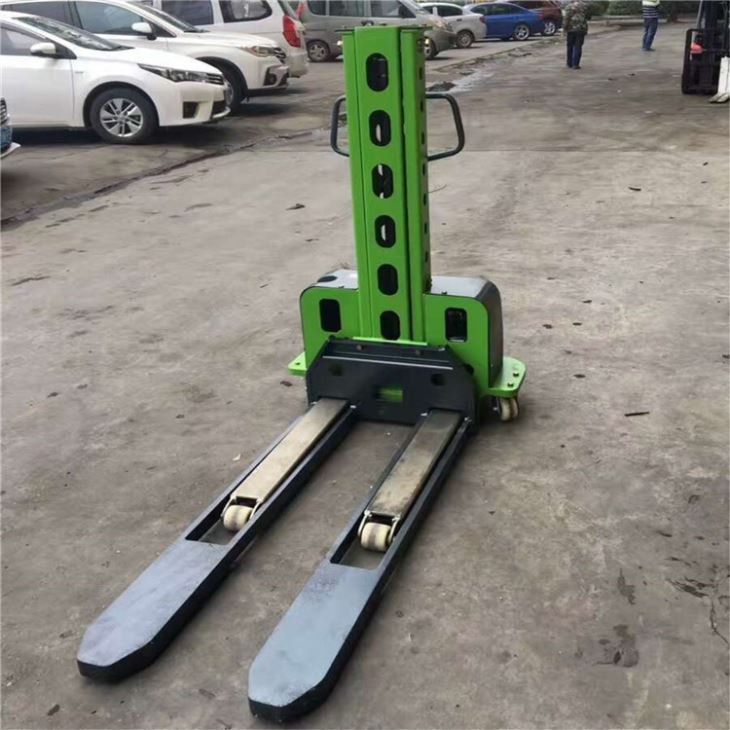

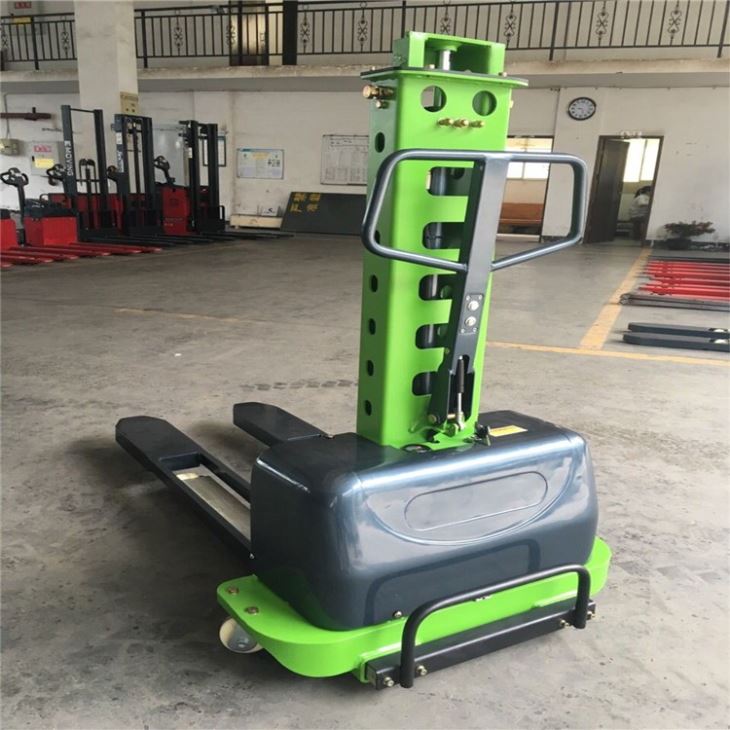

Self Load Portable Electric Stacker Lifter



Noelift Trucks Self Loading Electric Stacker

1. Large capacity battery pack, working longer, longer life;

2. Lightweight body design with high strength alloy steel;

3. The fork leg adopts the seamless moment tube, not the welding moment profile;

4. The liquefaction system adopts the NOK seal, which is reliable and reliable.

5. The control system adopts the advanced four-button mode, which is simple and comfortable and energy saving.

6. Four-wheel design with high stability;

7. Smooth processing surface, pushing and pulling more smoothly;

Manufacturer	NOELIFT
Model	CDD05Z
Operation	Manual Driving, Electrical Lifting
capacity	kg	500	500	500
loading center	mm	400	400	400
wheelbase	mm	860	860	860
front wheel distance	mm	380	380	380
rear track	mm	670	670	670
min.fork height	mm	90	90	90
max.fork height	mm	800	1000	1300
steeling wheel	mm	Φ100x45	Φ100x45	Φ100x45
loading wheel	mm	Φ70x60	Φ70x60	Φ70x60
overall lenghth	mm	1600	1600	1600
overall width	mm	780	780	780
fork size	mm	1150*540	1150*540	1150*540
forkwidth	mm	535	535	535
turning radius	mm	1100	1200	1200
lifting speed	mm/s	80	80	80
descent speed	mm/s	90	90	90
lifting motor power	kw	12v/0.8	12v/0.8	12v/0.8
battery	V/AH	12/45	12/45	12/45
type of driving		pedestrian	pedestrian	pedestrian
material of wheel		Polyurethane	Polyurethane	Polyurethane
net weight	kg	193	200	219

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

1. One-stop solutions offer

2. OEM services offer

3. 24 hours non stop service offer

4. Track the products for you once every two days, until you get the products.

5. During warrarnty, spare parts delivery within one week for free.

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
