Light Duty Mini 500kg Self Loading Work Stacker
self loading electric stacker to load and unload the cargoes by the truck
Send Inquiry
Product Introduction

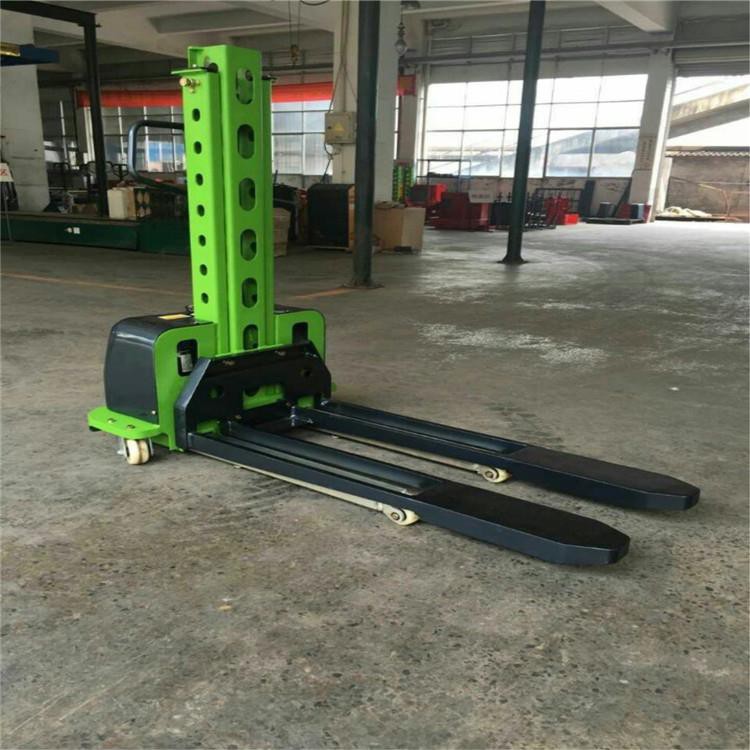

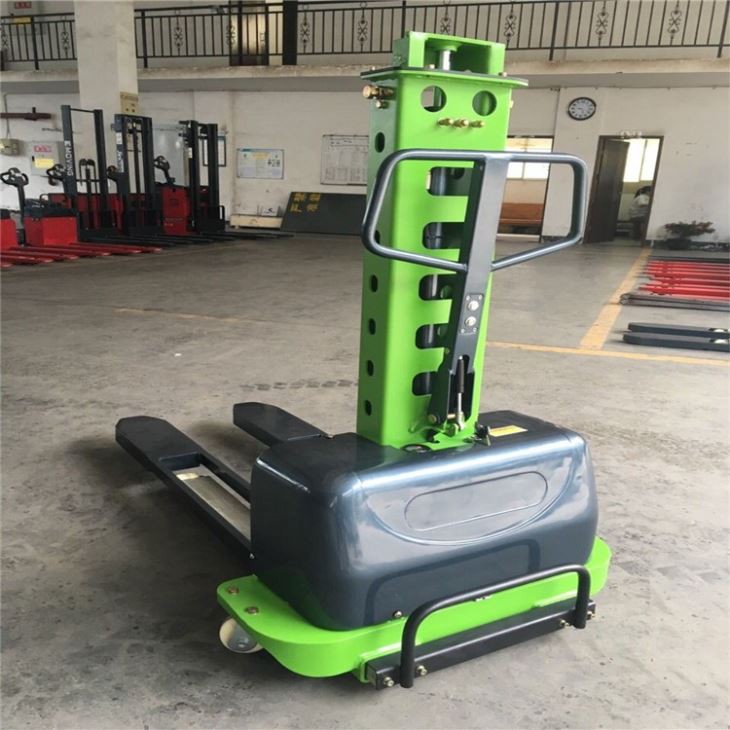

Noelift Trucks Self Loading Electric Stacker
Our services:
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warranty, spare parts delivery within one week for free.
Instruction:
Certificates:
Factory:
| Manufacturer | NOELIFT | |||
| Model | CDD05Z | |||
| Operation | Manual Driving, Electrical Lifting | |||
| capacity | kg | 500 | 500 | 500 |
| loading center | mm | 400 | 400 | 400 |
| wheelbase | mm | 860 | 860 | 860 |
| front wheel distance | mm | 380 | 380 | 380 |
| rear track | mm | 670 | 670 | 670 |
| min.fork height | mm | 90 | 90 | 90 |
| max.fork height | mm | 800 | 1000 | 1300 |
| steeling wheel | mm | Φ100x45 | Φ100x45 | Φ100x45 |
| loading wheel | mm | Φ70x60 | Φ70x60 | Φ70x60 |
| overall lenghth | mm | 1600 | 1600 | 1600 |
| overall width | mm | 780 | 780 | 780 |
| fork size | mm | 1150*540 | 1150*540 | 1150*540 |
| forkwidth | mm | 535 | 535 | 535 |
| turning radius | mm | 1100 | 1200 | 1200 |
| lifting speed | mm/s | 80 | 80 | 80 |
| descent speed | mm/s | 90 | 90 | 90 |
| lifting motor power | kw | 12v/0.8 | 12v/0.8 | 12v/0.8 |
| battery | V/AH | 12/45 | 12/45 | 12/45 |
| type of driving | pedestrian | pedestrian | pedestrian | |
| material of wheel | Polyurethane | Polyurethane | Polyurethane | |
| net weight | kg | 193 | 200 | 219 |
