Walkie 500kg Self Loading Stacker
self loading electric stacker to load and unload the cargoes by the truck
Send Inquiry
Product Introduction

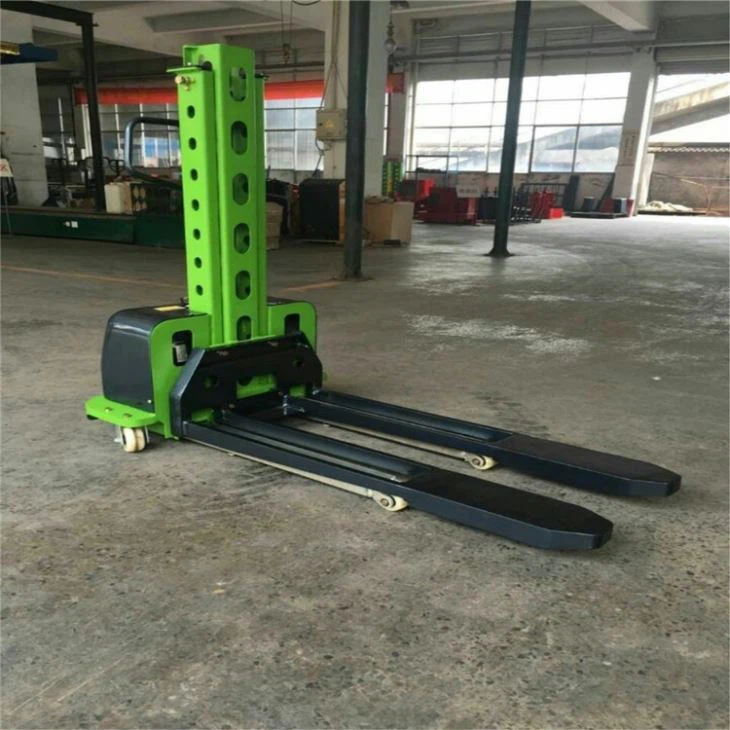

Noelift Trucks Self Loading Electric Stacker
Self loading pallet stacker
Rated capacity: 500kg
Max. lifting height: 1.3M
Power: Lift electronic, drive manual
Battery: 12V/45AH
Instruction:
Certificates:
Factory:
| Manufacturer | NOELIFT | |||
| Model | CDD05Z | |||
| Operation | Manual Driving, Electrical Lifting | |||
| capacity | kg | 500 | 500 | 500 |
| loading center | mm | 400 | 400 | 400 |
| wheelbase | mm | 860 | 860 | 860 |
| front wheel distance | mm | 380 | 380 | 380 |
| rear track | mm | 670 | 670 | 670 |
| min.fork height | mm | 90 | 90 | 90 |
| max.fork height | mm | 800 | 1000 | 1300 |
| steeling wheel | mm | Φ100x45 | Φ100x45 | Φ100x45 |
| loading wheel | mm | Φ70x60 | Φ70x60 | Φ70x60 |
| overall lenghth | mm | 1600 | 1600 | 1600 |
| overall width | mm | 780 | 780 | 780 |
| fork size | mm | 1150*540 | 1150*540 | 1150*540 |
| forkwidth | mm | 535 | 535 | 535 |
| turning radius | mm | 1100 | 1200 | 1200 |
| lifting speed | mm/s | 80 | 80 | 80 |
| descent speed | mm/s | 90 | 90 | 90 |
| lifting motor power | kw | 12v/0.8 | 12v/0.8 | 12v/0.8 |
| battery | V/AH | 12/45 | 12/45 | 12/45 |
| type of driving | pedestrian | pedestrian | pedestrian | |
| material of wheel | Polyurethane | Polyurethane | Polyurethane | |
| net weight | kg | 193 | 200 | 219 |
