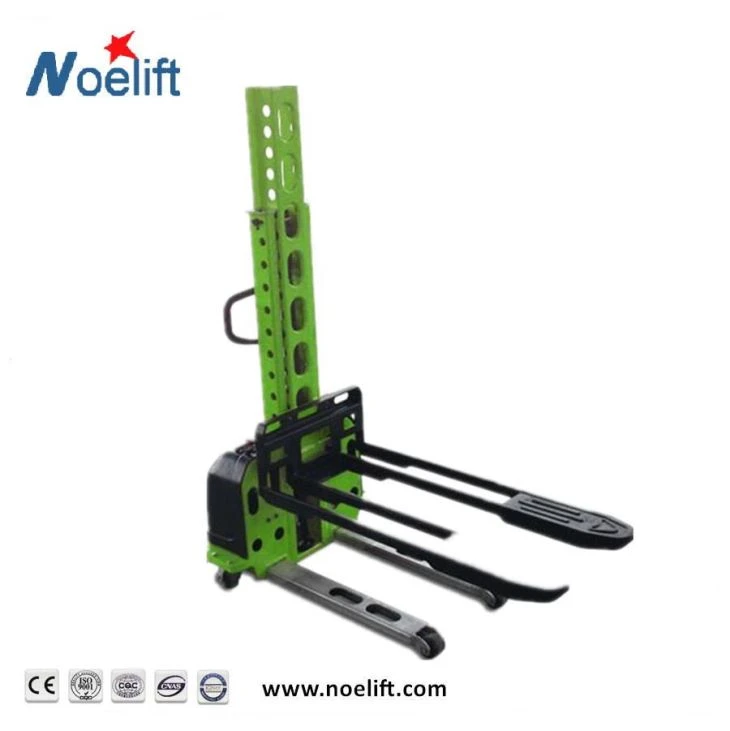

New Arrival 500kg Self Loading Stacker Forklift

Electric Self-lift Stacker Self-lift function It can easily lift by itself to truck or other cargo platform and then transfer with goods. This changes traditional logistics means.

Send Inquiry

Product Introduction

500KG Electric Self-lift Stacker WITH 800MM 1000MM 1200MM 1300MM

Electric Self-lift Stacker
Self-lift function
It can easily lift by itself to truck or other cargo platform and then
transfer with goods. This changes traditional logistics means.

Light in weight
You can operate it easily by yourself alone.
Double- control switch design
This will make the operation more efficient

Max load reaches to 500KGIt can satisfy 80% of logistics demands

The large capacity battery can satisfy increased logistic transport

500kg self loading stacker

Parameter

1	Model	CDD05Z
2	Brand/Manufacturer	NOELIFT
3	Operation	Manual Driving, Electrical Lifting
4	Capacity	500Kg	500Kg	500Kg
5	Weight	193KG	200Kg	219Kg
6	Lift Height	800mm	1000mm	1300mm
7	Height in Lowered Position	1200mm	1400mm	1600mm
8	Overall length	1600mm	1600mm	1600mm
9	Overall width	786mm	786mm	786mm
10	Fork Length	1250mm	1250mm	1250mm
11	Fork Width	540mm	540mm	540mm
12	Material of Wheels	Polyurethane	Polyurethane	Polyurethane
13	Steering wheel size	100x45	100x45	100x45
14	Loading wheel size	70x60	70x60	70x60
15	Motor Power Lifting	0.7kw	0.7kw	0.7kw
16	Battery	12/45V/Ah	12/45V/Ah	12/45V/Ah
17	Charger Battery	inclusive	inclusive	inclusive
18	Brake Type	Mechanical	Mechanical	Mechanical
19	Lifting speed	80Mm/s	80Mm/s	80Mm/s
20	Descend speed	90Mm/s	90Mm/s	90Mm/s
21	Turning radius	1100Mm	1200Mm	1200Mm
