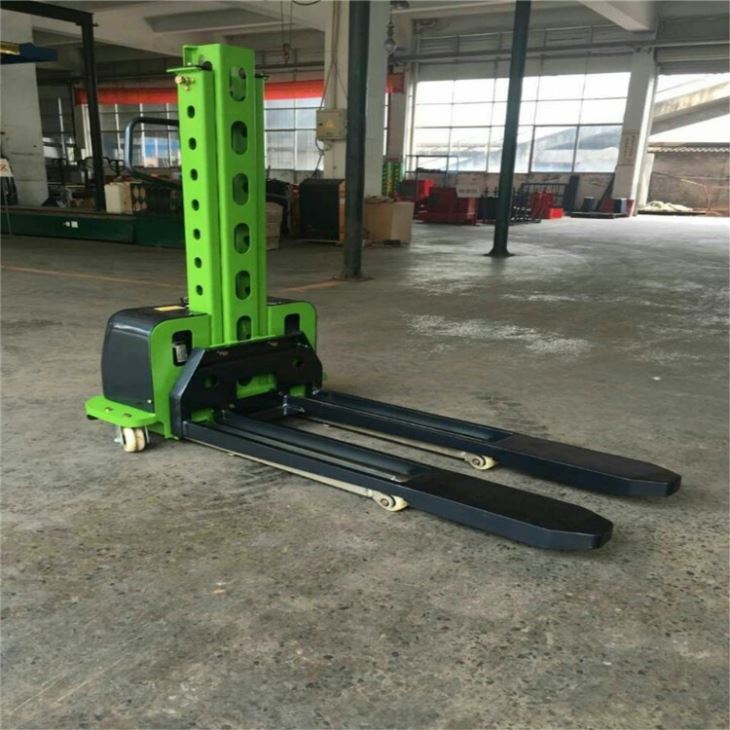

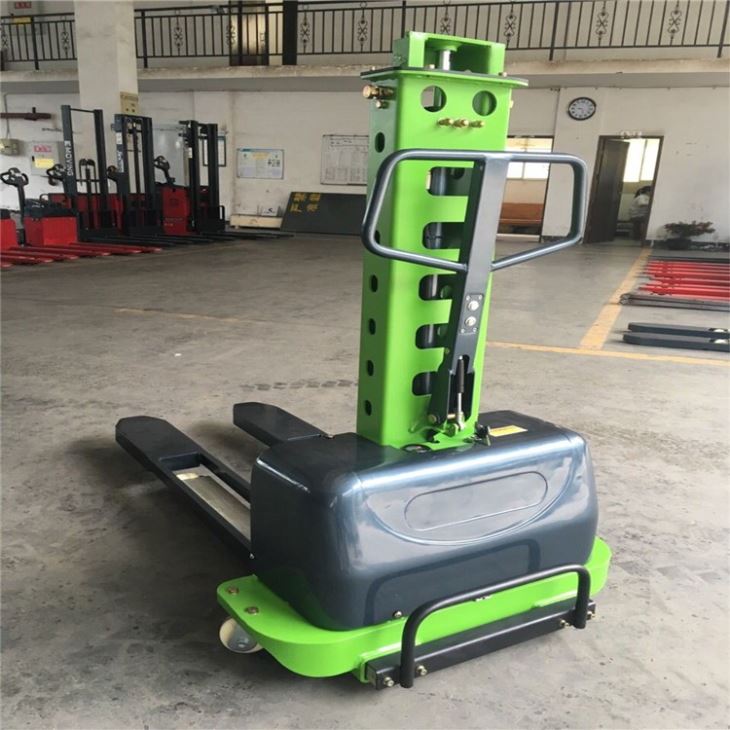

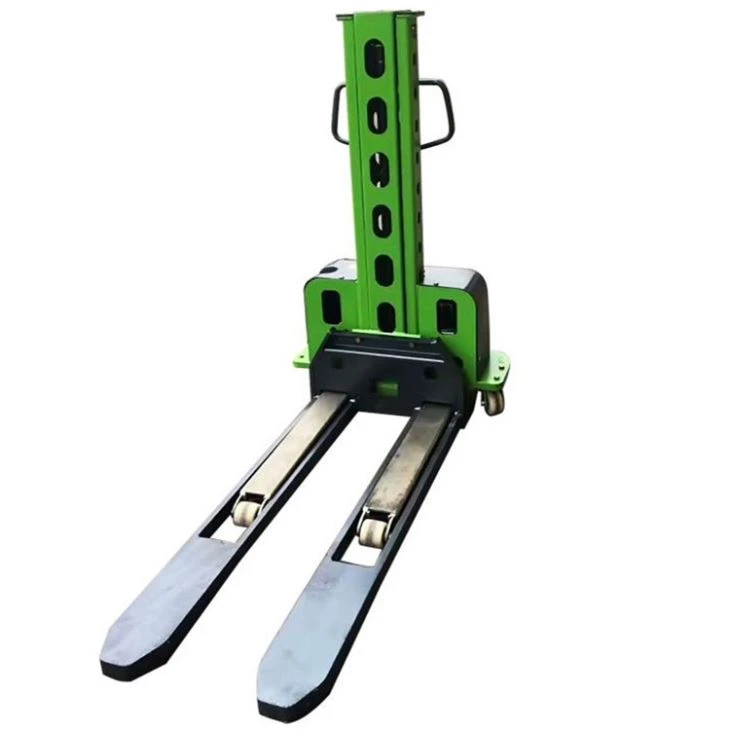

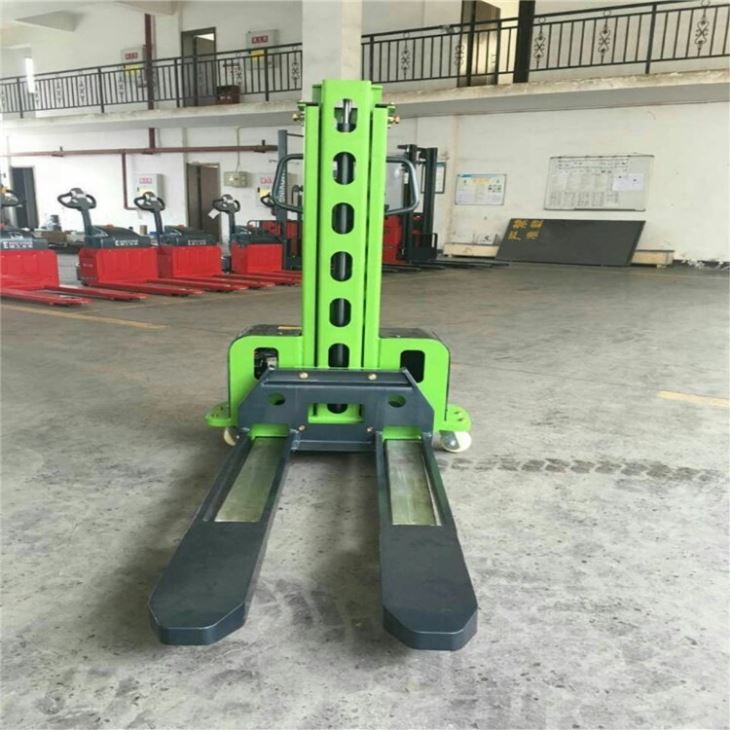

semi electric self-lift stacker
Specification of 500kg electric pallet stacker
Features | 1.1 | Model | CDD05Z | ||
1.2 | Power unit | Battery | |||
1.3 | Rated capacity | Q | kg | 500 | |
1.4 | Load center | c | mm | 400 | |
1.5 | Wheel base | L0 | mm | 758 | |
1.6 | Front track base | W1 | mm | 380 | |
1.7 | Rear track base | W2 | mm | 665 | |
1.8 | Operator type | Pedestrian/Standing | |||
Tyres | 2.1 | Tyre type(Front/Rear) | Nylon | ||
2.2 | Balance/Load wheels | 2/2 | |||
2.3 | Load wheel size | mm | Φ70×60 | ||
2.4 | Balance wheel size | mm | φ100×45 | ||
Demension | 3.1 | Lowered Fork height | H2 | mm | 85 |
3.2 | Max.lifting height | H | mm | 1200 | |
3.3 | Max.fork width | W3 | mm | 535 | |
3.4 | Fork length | L2 | mm | 1150 | |
3.5 | Fork width×Fork thickness | B | mm | 155×60 | |
3.6 | Overall length | L1 | mm | 1570 | |
3.7 | Total width | W | mm | 786 | |
3.8 | Overall height(Mast closed) | H1 | mm | 1597 | |
3.9 | Overall height(Fork lowering) | H3 | mm | 1618 | |
4.0 | Min.turning radius | Wa | mm | 1100 | |
Performance | 4.1 | Lifting speed | mm/s | 55 | |
4.2 | Lowering speed | mm/s | 70 | ||
4.3 | Lifting motor power | kW | DC0.8 | ||
4.4 | Battery voltage | V | 12 | ||
4.5 | Battery capacity | Ah | 45 | ||
Weight | 5.1 | Battery weight | kg | 13.5 | |
5.2 | Operating weight(with battery) | kg | 245 |
FAQ:
1. Can i place mix order?For example, i need 1 pc Electric Stacker and 1 pc Hand Pallet Truck,can this ok?
A: Yes, of course. You can mix different models as you wish.
2. Can you send the machine to my factory in other city to load the container?
A: Yes, please tell us the detail address, we can arrange to send your factory in time.
3. Are the forklift trucks covered by a warranty?
A: Yes. All our machines carry a full 1 year major parts warranty.
4. Can i get discounts?
A: Yes, For big order, old customer and frequent customers, we give reasonable discounts.
Certification :
