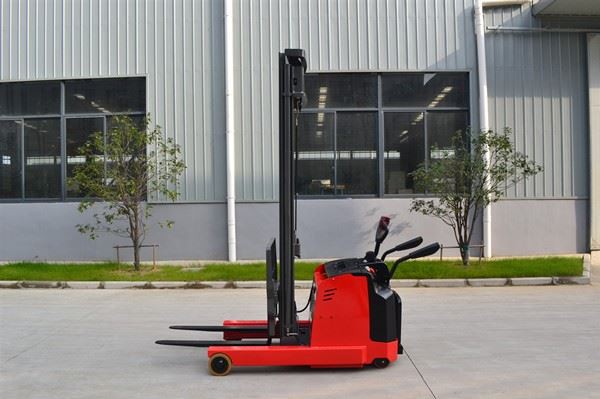

Electric Reach Stacker Handle Type 1500kg
Electric Reach Truck
Features
48V Electric Reach Track TF series
1, Narrow Chassis suit for narrow asiles.
2, 7.2M lifting height is no problem.
3, Wide vision mast, soft and comfortable design.
TF Series with AC driving motor, Rated load capacity:1500- 2500kg, lift height: 7200mm, it's popular in every industries;
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve,to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving;
| Model | TFA15 (Single cylinder, single mast) (Single cylinder, duplex mast) | TFA15 (Double cylinders, duplex mast) | TFA15 (Triplex mast) | |
| Power type | Battery | Battery | Battery | |
| Operation type | Stand-on | Stand-on | Stand-on | |
| Rated capacity | Q(kg) | 1500 | 1500 | 1500 |
| Load center | C(mm) | 500 | 500 | 500 |
| Front overhang | x(mm) | 120 | 130 | 130 |
| Wheelbase | y(mm) | ≤1480 | ≤1480 | ≤1480 |
| Service weight(incl.battery) | kg | 1850 | 2100 | 2150 |
| Wheel type | PU | PU | PU | |
| Load wheel | mm | φ210×85 | φ210×85 | φ210×85 |
| Drive wheel | mm | φ230×75 | φ230×75 | φ230×75 |
| Auxiliary wheel | mm | φ150×50 | φ150×50 | φ150×50 |
| Number of wheels,front/rear(X=drive wheel) | 2/1x+2 | 2/1x+2 | 2/1x+2 | |
| Wheel tread, drive side | b10(mm) | 678 | 678 | 678 |
