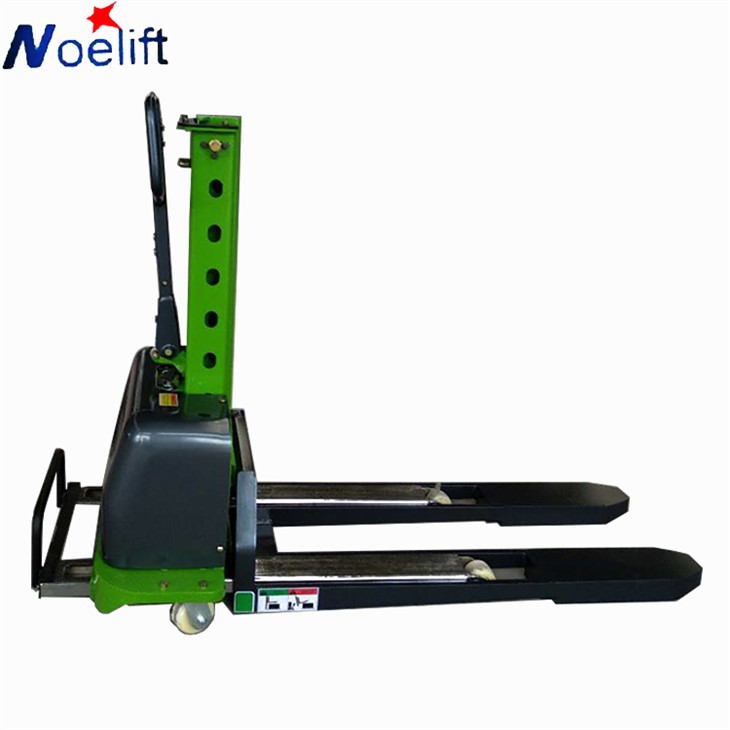

Name: China Light Body Economical And Practical Electric Self Lifting Forklift Manufacturers
Brand: Noelift
SKU: 143708051

Charge for 8-10 hours, and use about 25-30 full load on and off cycle.
Only for single side pallets.
The minimum operating temperature of the battery is -20 degrees Celsius

Send Inquiry

Product Introduction

self loading forklift Description

Electric self-lifting forklift is a revolutionary product that helps to streamline the operations of loading and unloading in various industries. It is also known as a portable self-loading forklift or a self-loading pallet stacker, which makes it easy to move around and operate.

One of the key advantages of using this forklift is the ease of loading and unloading, as it can lift and stack pallets efficiently and smoothly. This saves time and effort for workers, making them more productive. Additionally, since it has electric and semi electric those two type model, it is eco-friendly and cost-effective since it eliminates the need for fossil fuels.

The portability of this forklift also allows it to be used in smaller spaces where large-scale machinery may not fit. It can easily maneuver around obstacles and tight spaces, making it perfect for use in warehouses and factories. Moreover, it is also easy to store as it takes up minimal space when not in use.

portable electric self discharge stacker

Important parameters

Specifications
Standard
1.1	Manufacturer		NOELIFT	NOELIFT	NOELIFT	NOELIFT	NOELIFT	NOELIFT
1.2	Model		CDD0508	CDD0509	CDD0510	CDD0511	CDD0512	CDD0513
1.3	Power type		Battery	Battery	Battery	Battery	Battery	Battery
1.4	Driving style		Walkie	Walkie	Walkie	Walkie	Walkie	Walki
1.5	Rated load	kg	500	500	500	500	500	500
1.6	Load center	mm	400	400	400	400	400	400
1.7	Wheelbase	mm	758	758	758	758	758	758
Weights
2.1	Total Weight(Include Battery)	KG	230	235	240	245	250	255
2.2	Battery weight	KG	13.5	13.5	13.5	13.5	13.5	13.5
Wheel
3.1	wheel type		Nylon	Nylon	Nylon	Nylon	Nylon	Nylon
3.2	Bearing wheel size	mm	φ70*60	φ70*60	φ70*60	φ70*60	φ70*60	φ70*60
3.3	Balanced wheel size	mm	φ100*45	φ100*45	φ100*45	φ100*45	φ100*45	φ100*45
3.4	Number of wheels(universal/bearing)		2/2	2/2	2/2	2/2	2/2	2/2
Size
4.1	Min.Fork Height	mm	85	85	85	85	85	85
4.2	Max. Fork Height	mm	800	900	1000	1100	1200	1300
4.3	External Distance Between Forks	mm	535	535	535	535	535	535
4.4	Length of Fork	mm	1150	1150	1150	1150	1150	1150
4.5	Width of Fork	mm	155	155	155	155	155	155
4.6	Overall Length	mm	1570	1570	1570	1570	1570	1570
4.7	Width	mm	786	786	786	786	786	786
4.8	Overall Height(Mast Closed)	mm	1097	1197	1297	1397	1497	1597
4.9	Overall Height(Min. Fork Height)	mm	1118	1218	1318	1418	1518	1618
4.10	Min.Turning Radius	mm	1100	1100	1100	1100	1100	1100
Function
4.1	Lift Speed	mm/s	55	55	55	55	55	55
4.2	Descent Speed	mm/s	70	70	70	70	70	70
4.3	Lift Motor	KW	DC0.8	DC0.8	DC0.8	DC0.8	DC0.8	DC0.8
4.4	Battery Voltage/Capacity	V/AH	12V/45AH	12V/45AH	12V/45AH	12V/45AH	12V/45AH	12V/45AH
