10 Tons Diesel Forklift
This diesel forklift with laod capacity 10 tons
Send Inquiry
Product Introduction
product overview

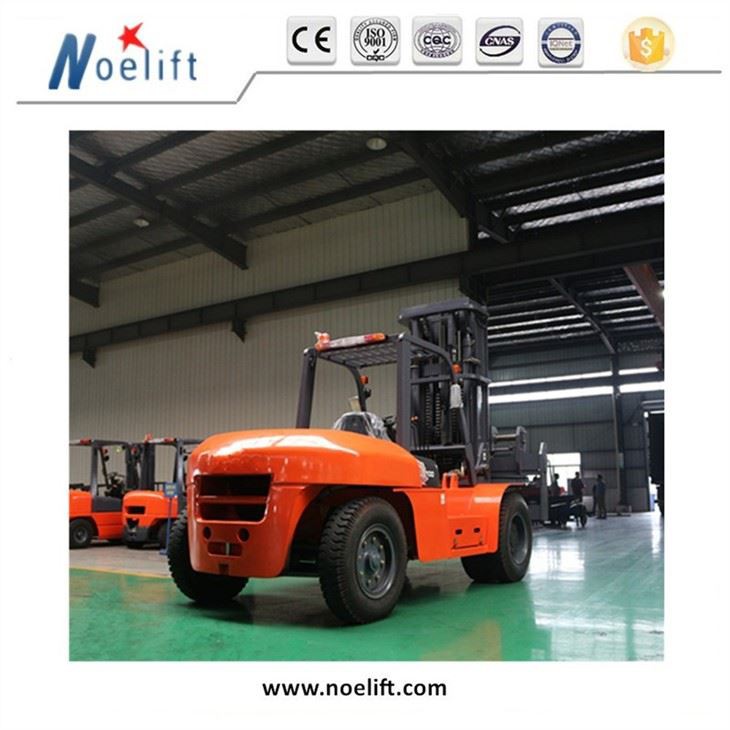

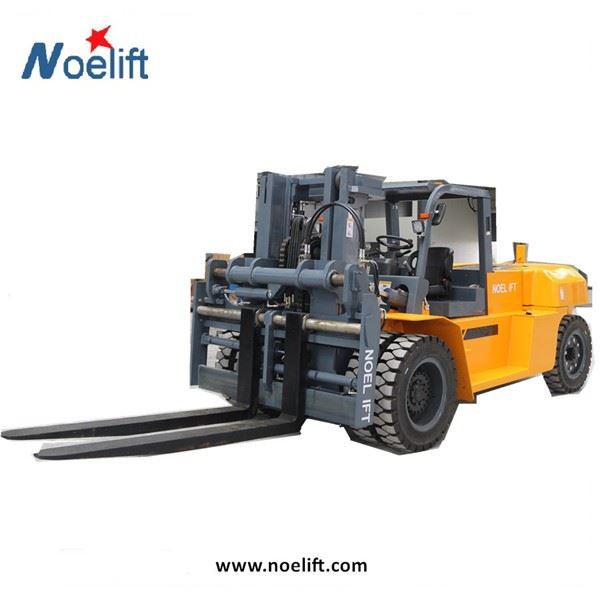

10 tons diesel forklift
1.Environment friendly
Low noise and exhaust emissions make Noelift forklift environment friendliness.
2.Outstanding comfort
Operation comfort is improved through ergonomic design, enlarged operation space and reasonable layout.
3.Safety and reliability
It is designed to be thougher and more durable
4.Easy maintenance
It is easy to carry out maintenance and thus prolongs truck service life.
5.Excellent working efficiency
The operating performance and efficiency are improve
| 型号 | Model | FD80-C | FD80-W | FD100-C | FD100-W | |||||||
| 动力形式 | Power typ | 柴油Diesel | ||||||||||
| 额定载荷 | Rated capacity | KG | 8000 | 8000 | 10000 | 10000 | ||||||
| 载荷中心距 | Load center | MM | 600 | |||||||||
| 起升高度 | Liftheight | MM | 3000 | |||||||||
| 自由起升高度 | Free lift height | MM | 205 | 210 | ||||||||
| 货叉尺寸 | Fork size | MM | 1500×160×75 | 1500×160×80 | ||||||||
| 货叉间距（外侧） | Fork outside spread | MIN./MAX. | MM | 320/2015 | 420/2144 | |||||||
| 门架倾角 | Mast tilt angle | deg | 6\12 | |||||||||
| 前悬距 | Front overhang | MM | 700 | 733 | ||||||||
| 总长 | Length to fork facea | MM | 3940 | 4258 | ||||||||
| 总宽 | Overall width | MM | 2245 | |||||||||
| 门架不起升高度 | Mast lowered heightdimension | MM | 2695 | 2845 | ||||||||
| 门架起升时高度 | Mast extended height | MM | 4445 | 4307 | ||||||||
| 安全架高度 | Overhead guard height | MM | 2565 | |||||||||
| 最小转弯半径 | Turning radius | MM | 3700 | 3900 | ||||||||
| 空载/满载 | NO LOAD/FULL LOAD | 行驶速度 | Travel speed | KG/H | 28/24 | 28/22 | ||||||
| 起升速度 | Lift speed | MM/SEC | 480/350 | 410/350 | 390/280 | 390/300 | ||||||
Hot Tags: 10 tons diesel forklift, China 10 tons diesel forklift manufacturers
