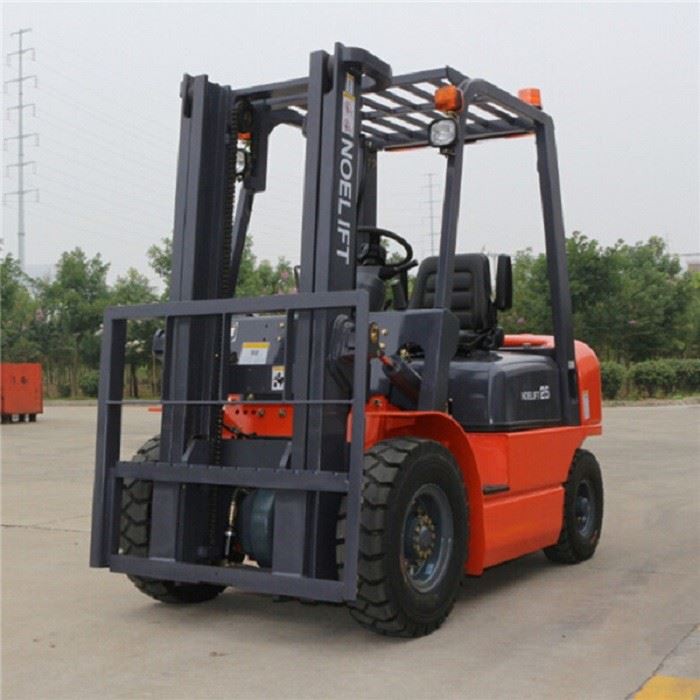

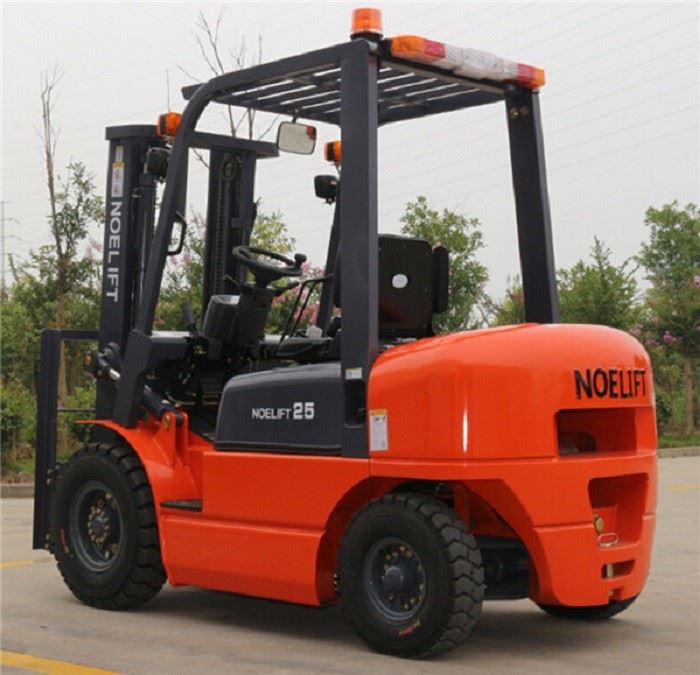

3.5 Tons Diesel Forklift
This diesel forklift with a carrying capacity of 1 to 12 tons.
The heavy cargo can be loaded.
The heavy cargo can be loaded.
Send Inquiry
Product Introduction
product overview
3.5 Tons Diesel Forklift
1.Environmental friendliness, low noise and exhaust emissions make Noelift forklift environmentally friendly.
2. Very good comfort. With ergonomic design, large working space and reasonable design, working comfort can be improved.
3. Maintain security and trust
4. Quick maintenance and quick maintenance, thus prolonging the service life of the truck. 5. Exceptional business efficiency affects business performance and impact
| 型号 | Model | FD20 FG(L)20 | FD25 FG(L)25 | FD30 FG(L)30 | FD35 FG(L)35 | |||||||
| 动力形式 | Power type | 柴油Diesel/汽油Gasoline/液化气LPG | ||||||||||
| 额定载荷 | Rated capacity | KG | 2000 | 2500 | 3000 | 3500 | ||||||
| 载荷中心距 | Load center | MM | 500 | |||||||||
| 起升高度 | Liftheight | MM | 3000 | |||||||||
| 自由起升高度 | Free lift height | MM | 140 | 145 | ||||||||
| 货叉尺寸 | Fork size | MM | 1070×120×40 | 1070×120×45 | 1070×125×45 | 1070×130×45 | ||||||
| 门架倾角 | Mast tilt angle | deg | 6\12 | |||||||||
| 前悬距 | Front overhang | MM | 484 | 489 | 494 | 500 | ||||||
| 总长 | Length to fork facea | MM | 2510 | 2580 | 2720 | 2775 | ||||||
| 总宽 | Overall width | MM | 1150 | 1225 | ||||||||
| 门架不起升高度 | Mast lowered heightdimension | MM | 2050 | 2080 | 2230 | |||||||
| 门架起升时高度 | Mast extended height | MM | 4040 | 4272 | ||||||||
| 安全架高度 | Overhead guard height | MM | 2060 | 2090 | ||||||||
| 最小转弯半径 | Turning radius | MM | 2170 | 2240 | 2460 | 2540 | ||||||
