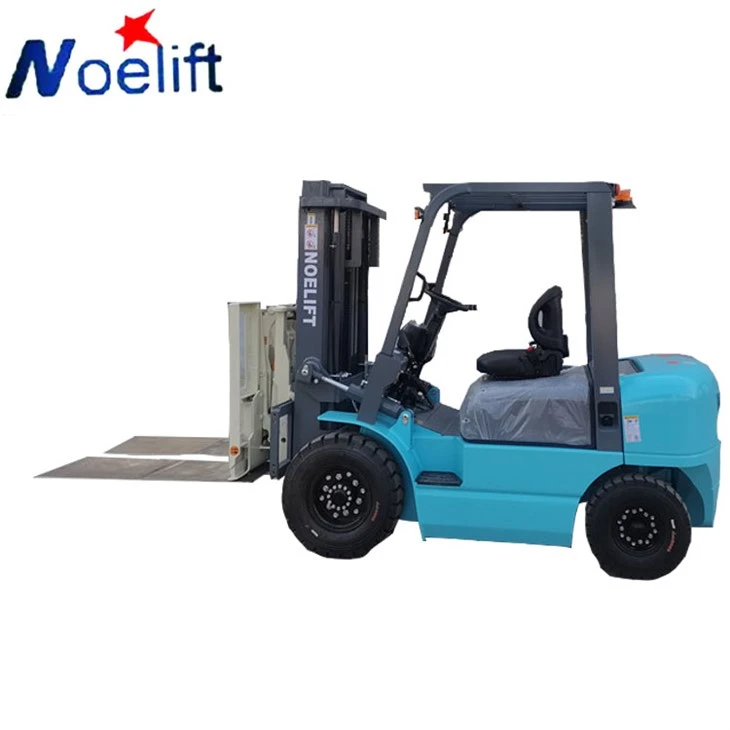

3 Ton Diesel Forklift Japanese Mitsubishi Engine
1, Seat on type opertaion.
2, Engine option: ISUZU 6BG1, CUMMINS , CY6102, XICHAI 6110, PEKINS
3, 3-6M lifting height, duplex/triplex/container mast.
4, Different lengths forks and solid tyres is optional
5, Wide vision mast, soft
diesel forklift Description
10ton diesel forklift truck FD100
1, Engine : ISUZU 6BG1, CUMMINS , CY6102, XICHAI 6110, PEKINS,
2, 3-6M lifting height, duplex/triplex/container mast.
3, Different lengths forks and solid tyres is optional
4, Wide vision mast, soft and comfortable design.
5, Automatic hydraulic transmission.
6. with fork positioner and side shift.

Important parameters
|
Specifications of 8-12 tons forklift |
|||||
|
Manufacture |
|||||
|
Model |
Unit |
FD80 |
FD100 |
FD120 |
|
|
Power type |
DIESEL |
DIESEL |
DIESEL |
||
|
Rated capacity |
kg |
8000 |
10000 |
12000 |
|
|
Max lift height |
mm |
3000 |
3000 |
3000 |
|
|
Load centre |
mm |
||||
|
Mast extend height |
mm |
4380 |
4320 |
4350 |
|
|
Max lift height of fork |
mm |
3000 |
3000 |
3000 |
|
|
Mast closed height |
mm |
2500 |
2840 |
2870 |
|
|
Free lift height |
mm |
205 |
100 |
180 |
|
|
Distance from seat to overhead guard |
mm |
1080 |
1020 |
||
|
Overall length (Without fork) |
mm |
3600 |
4270 |
2430 |
|
|
Overall Width |
mm |
1995 |
2165 |
4820 |
|
|
Front overhang |
mm |
590 |
720 |
720 |
|
|
Rear overhang |
mm |
760 |
742 |
900 |
|
|
Wheel base |
mm |
2250 |
2800 |
3200 |
|
|
The height of traction pin |
mm |
395 |
520 |
520 |
|
|
Min. ground clearance |
mm |
200 |
225 |
240 |
|
|
Fork Size |
mm |
1220X150X75 |
1220X175X80 |
1220X175X80 |
|
|
The distance between forks |
mm |
1840/300 |
2460/450 |
2460/450 |
|
|
Tread(front/rear) |
mm |
1470/1700 |
1600/1800 |
1600/1700 |
|
|
Min. Turning Radius(outside) |
mm |
3370 |
4080 |
4720 |
|
|
Mast tilt angle |
deg |
||||
|
Total weight |
kg |
9850 |
12860 |
13520 |
|
|
Tire |
Quantity |
||||
|
Type |
|||||
|
Transmission Type |
Automatic |
||||
certification

Company Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
