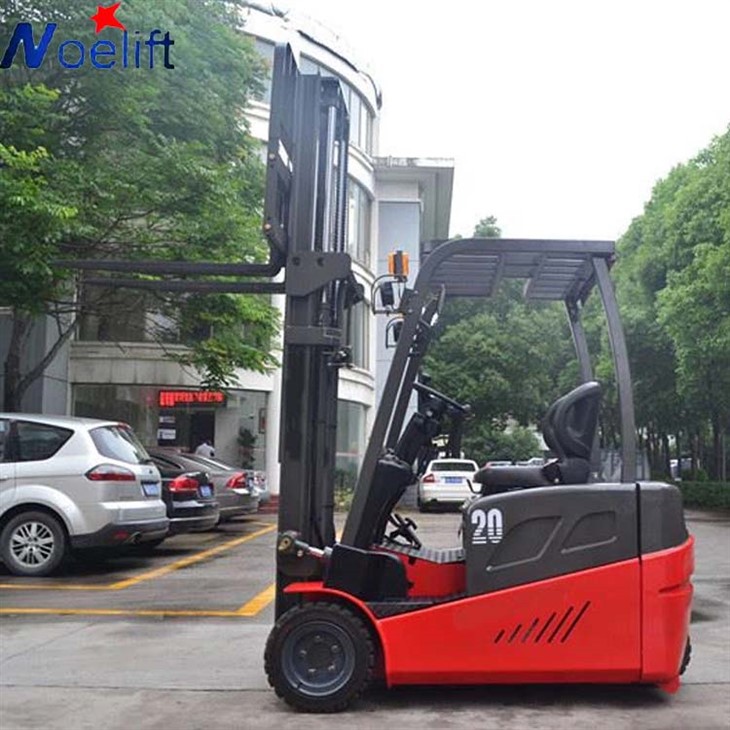

More Powerful Truck Three Pivot Counterbalanced Forklift
suitable for: horizontal handling,
block stacking, loading/unloading goods
counterbalanced truck forklift Description
The Counterbalance Forklift, also known as a counterbalanced gravity forklift, is a common industrial forklift that features stable railcar steering control and a smooth ride. This kind of forklift is usually widely used in factories, warehouses, docks and other logistics sites.
The advantages of the Counterbalance Forklift are many:
First of all, it has excellent stability and can maintain balance when carrying heavy items.
Secondly, the car has impressive steering and is easy to control, allowing it to be maneuvered in tight spaces.
Third, the vehicle has a strong load-carrying capacity and can carry multiple heavy items at the same time.
Finally, the Counterbalance Forklift is easy to use and requires no additional complex training or usage skills.
Counterbalance Forklift is widely used in logistics, manufacturing, construction, automobile manufacturing and other fields. Especially in logistics sites, vehicle stability and handling capabilities are crucial for the transportation of large goods. Counterbalance Forklift is also an essential piece of equipment in factories and manufacturing plants, which can easily move raw materials and finished products from one area to another.
Important parameters
M series C type three pivot counterbalanced forklift
| Standard | |||
| 1.1 | Manufacturer | NOELIFT | |
| 1.2 | Model | TKC16 | |
| 1.3 | Power Type | Battery | |
| 1.4 | Operation Type | Driving style | |
| 1.5 | Rated Capacity | Q(kg) | 1600 |
| 1.6 | Load Center | C(mm) | 500 |
| 1.8 | Front Overhand | x(mm) | 345 |
| 1.9 | Wheelbase | y(mm) | 1480 |
| Weight | |||
| 2.1 | Service Weight(incl.battery) | kg | 3050 |
| 2.2 | Weight distribution when loaded,drive side/load side | kg | / |
| 2.3 | Weight distribution when unloaded,drive side/load side | kg | / |
| Wheel | |||
| 3.1 | Wheel Types | Solid rubber tire | |
| 3.2 | Load Wheel | mm | 15×4.5-8 |
| 3.3 | Drive wheel | mm | 18×7-8 |
| 3.5 | Number of wheels,,front/rear(x=drive wheel) | 2x/2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 1080 |
| 3.7 | Wheel tread,load side | b11(mm) | 180 |
| Size | |||
| 4.1 | Mast tilting | α/β(°) | 6/6 |
| 4.2 | Mast closed height | h1(mm) | 1995 |
| 4.3 | Free lift height | h2(mm) | 140 |
| 4.4 | Lift height | h3(mm) | 3000 |
| 4.5 | Mast extended height | h4(mm) | 4030 |
| 4.7 | Overhead guard height | h6(mm) | 2000 |
| 4.8 | Seat height | h7(mm) | 1055 |
| 4.19 | Overall length | L1(mm) | 3090 |
| 4.20 | Length to fork face | L2(mm) | 2020 |
| 4.21 | Overall width | b1/b2(mm) | 1250 |
| 4.22 | Fork size | l/e/s(mm) | 1070/100/35 |
| 4.23 | Installation level | 2A | |
| 4.24 | Fork carriage width | b3(mm) | 1040 |
| 4.25 | Fork outside width | b5(mm) | 222～1000 |
| 4.31 | Mast ground clearance | m1(mm) | 90 |
| 4.32 | Body ground clearance | m2(mm) | 100 |
| 4.34.1 | Aisle width for pallet 1000*1200 | Ast(mm) | 3350 |
| 4.34.2 | Aisle width for pallet 800*1200 | Ast(mm) | |
| 4.35 | Turning radius | Wa(mm) | 1660 |
| Function | |||
| 5.1 | Driving speed(load/unload) | km/h | 12/13 |
| 5.2 | Lifting speed(load/unload) | mm/s | 260/340 |
| 5.3 | Lowering speed(load/unload) | mm/s | / |
| 5.5 | Traction capacity(S2-5min) | N | / |
| 5.8 | Max.Gradeability(load/unload)(S2-5min) | %(tanθ ) | 12/14 |
| 5.10 | Brake type | Hydraulic | |
| Drive | |||
| 6.1 | Driving motor(S2-60min) | kw | AC4.8×2 |
| 6.2 | Lifting motor(S3-15%) | kw | AC8.6 |
| 6.4 | Battery voltage/capacity | V/Ah | 48/400 |
| 6.5 | Battery weight | kg | 645 |
| Option | |||
| 7.1 | Lithium battery configuration | V/Ah | 48/320 |
Products Certifications
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warranty, spare parts delivery within one week for free.
FAQ
Q1. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4: Can youaccept customization?
Yes.We can customize as your requirements, including size, appearance, color, engine etc.
Q5:Do you test all your goods before delivery?
Yes, We have a strict quality and safety management system.
