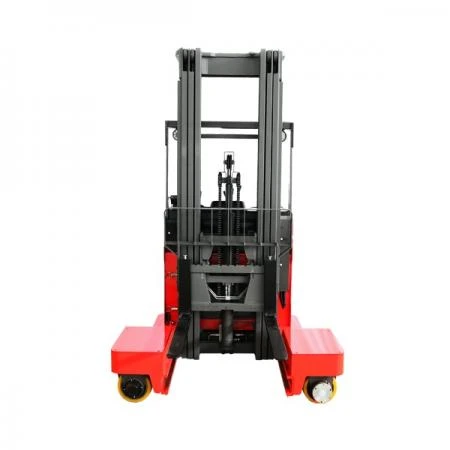

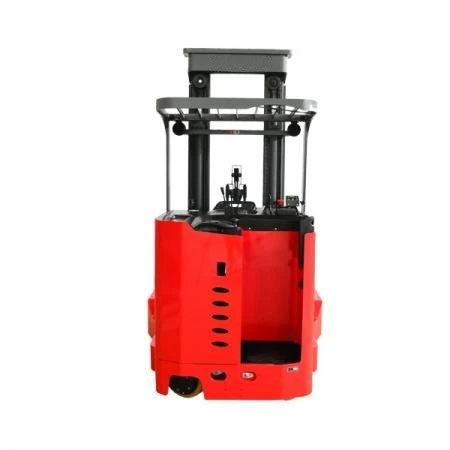

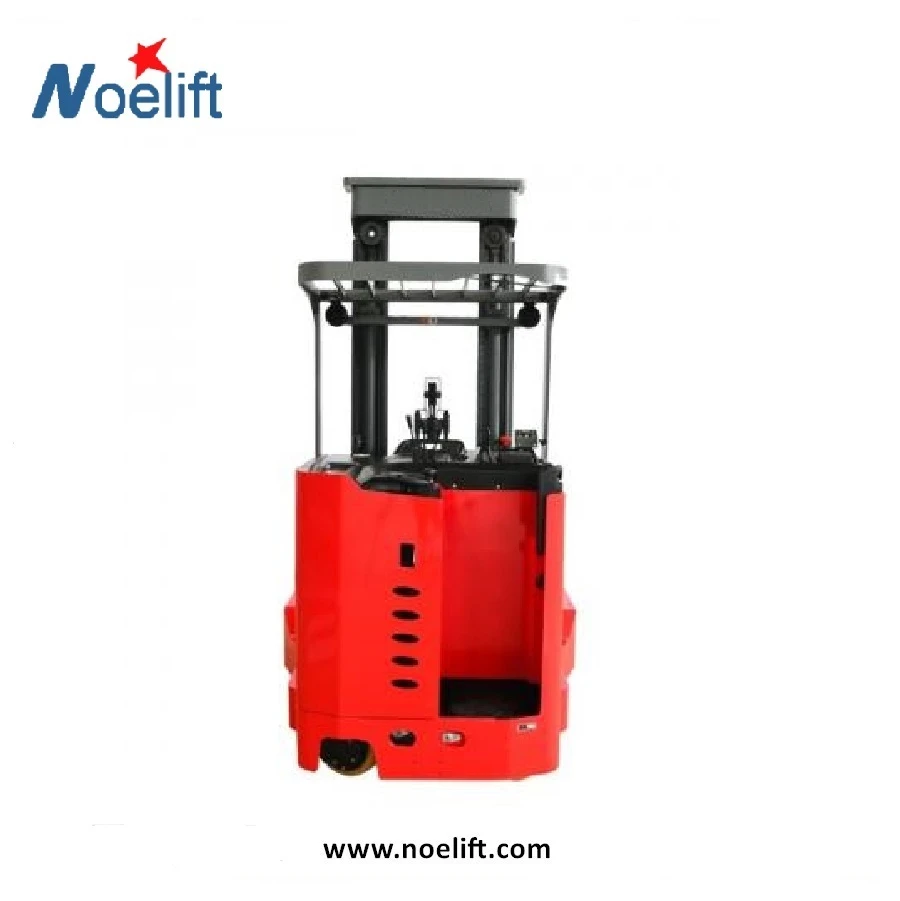

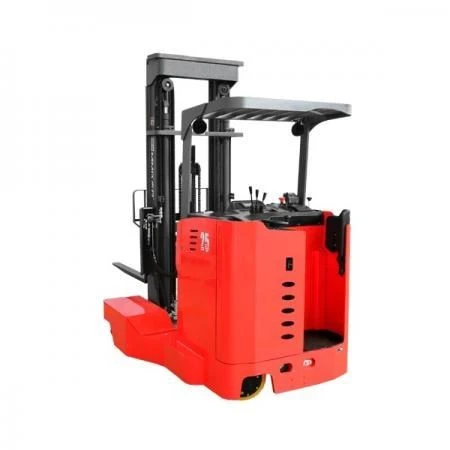

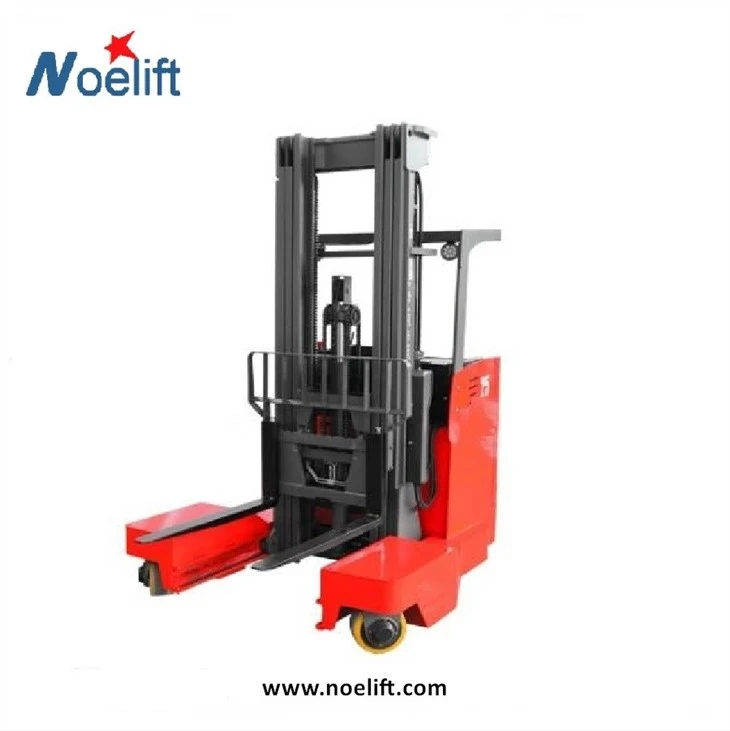

2.5Ton Full-scale Forklift
The MQ series forklift is a full-scale forklift suitable for stacking operations in narrow aisles and handling long materials.
Forklift driving towards the forward direction, the lifting height is 3.0m～8.0m. Compared with ordinary reach forklift, it
With driving modes such as straight, side, oblique, right-angle turning, and in-situ turning
Type, especially the lateral driving function makes the vehicle more suitable for picking up long strips of cargo
Objects, such as metal profiles, steel bars, plates, etc.
Send Inquiry
Product Introduction
2.5Ton full-scale forklift
Advantages:
1.stacking in narrow lanes,
2.horizontal handling of long materials,
3.improved storage utilization,
4.high cost performance
Features of MQ series electric forklift
1.Omni-directional driving, suitable for stacking operations in narrow lanes, one-key switching of straight, side, oblique, in-situ turning, and right-angle turning, simple operation, rapid change of direction, high efficiency, and few failures.
2.Full AC system, the whole vehicle has rapid response, precise control, long life and low energy consumption.

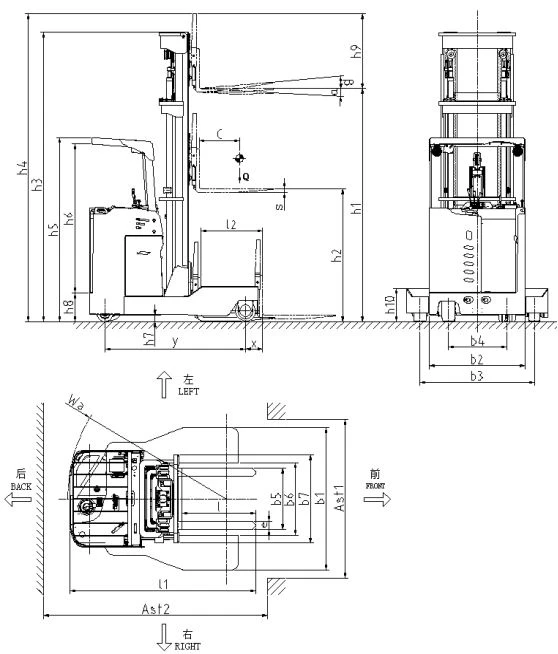

Product size
| Manufacturer | NOELIFT | NOELIFT | |
| Model | MQ2530 | MQ2545 | |
| Power Type | Battery | Battery | |
| Operation Type | Stand on | Stand on | |
| Rated Capacity | Q(kg) | 2500 | 2500 |
| Load Center | C(mm) | 500 | 500 |
| Front Overhand | x(mm) | 175 | 175 |
| Wheelbase | y(mm) | 1700 | 1700 |
| Service Weight(incl.battery) | kg | ≈3700 | ≈3900 |
| Battery Weight（±5%） | kg | 665 | 665 |
| Wheel Types | PU | PU | |
| front wheel （Diameter×Width）x2pc | mm | φ267×114 | φ267×114 |
| Rear drive wheel （Diameter×Width)x 1pc | mm | φ380×165 | φ380×165 |
| Rear balance wheel（Diameter×Width)x 2pc | φ204×76 | φ204×76 | |
| Wheel tread,front | b3(mm) | 1304 | 1304 |
| Wheel tread,rear | b4(mm) | 726 | 726 |
| Fork Tilt front/rear | α/β(°) | 3/5 | 2/6 |
| Lift height | h1(mm) | 3000 | 4500 |
| Free lift height with load backrest | h2(mm) | 80 | 1320 |
| Mast closed height | h3(mm) | 2082 | 2292 |
| Mast extended height with load-backrest | h4(mm) | 3960 | 5460 |
