1.6t/2ton 3 Wheels Electric Forklift Truck
TK16/TK20 three pivot counterbalanced forklift is an AC front double-drive counterbalanced forklift with more powerful power
Send Inquiry
Product Introduction
1.6t/2ton 3 wheels electric forklift truck

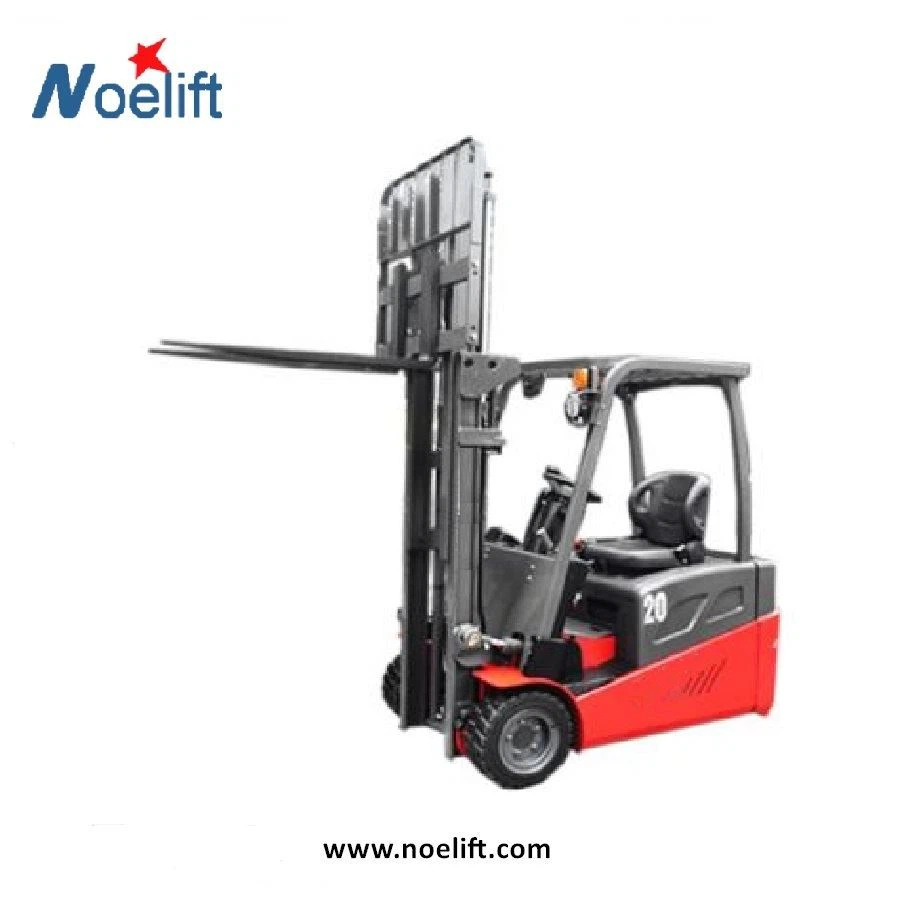

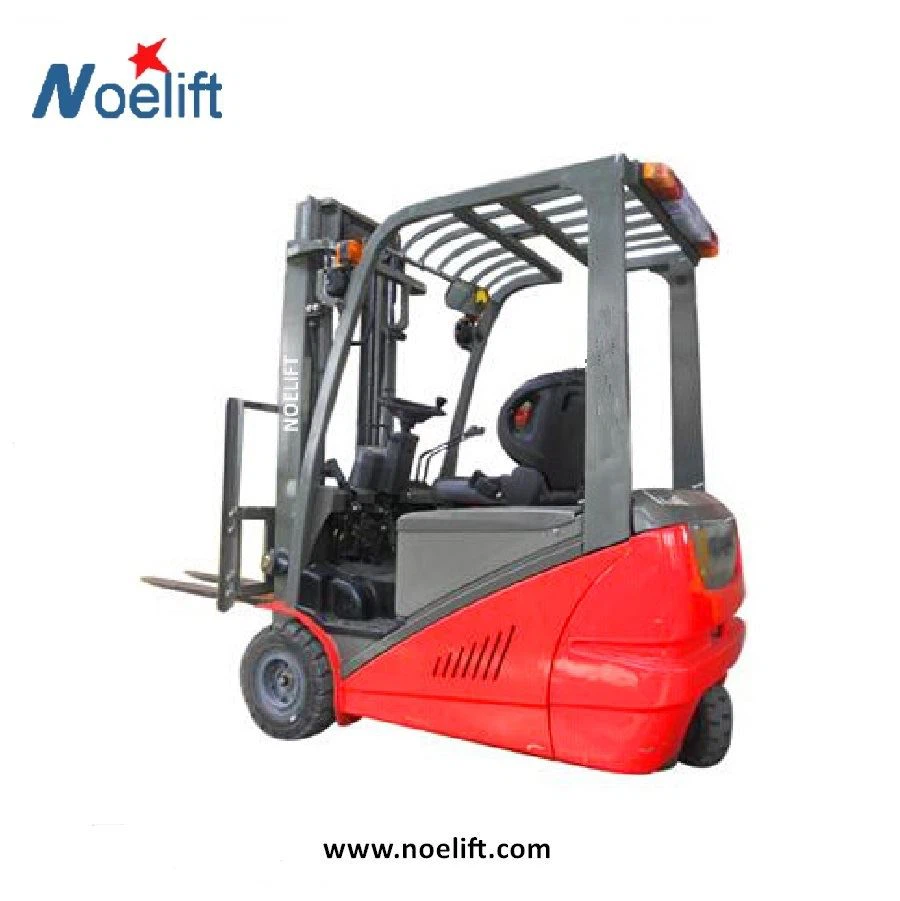

Product pictures
Specifications
| Manufacturer | NOELIFT | NOELIFT | |
| Model | TKC16 | TKC20 | |
| Power Type | Battery | Battery | |
| Rated Capacity | Q(kg) | 1600 | 2000 |
| Load Center | C(mm) | 500 | 500 |
| Front Overhand | x(mm) | 345 | 345 |
| Wheelbase | y(mm) | 1480 | 1480 |
| Service Weight(incl.battery) | kg | 3050 | 3200 |
| Weight distribution when loaded，drive side/load side | kg | / | / |
| Weight distribution when unloaded，drive side/load side | kg | / | / |
| Wheel Types | Solid rubber tire | Solid rubber tire | |
| Load Wheel | mm | 15×4.5-8 | 15×4.5-8 |
| Drive wheel | mm | 18×7-8 | 200/50-10 |
| Number of wheels,,front/rear(x=drive wheel) | 2x/2 | 2x/2 | |
| Wheel tread,drive side | b10(mm) | 1080 | 1050 |
| Wheel tread,load side | b11(mm) | 180 | 180 |
| Mast tilting | α/β(°) | 6/6 | 6/6 |
| Mast closed height | h1(mm) | 1995 | 1995 |
| Free lift height | h2(mm) | 140 | 140 |
| Lift height | h3(mm) | 3000 | 3000 |
Details
Capacity Chart
