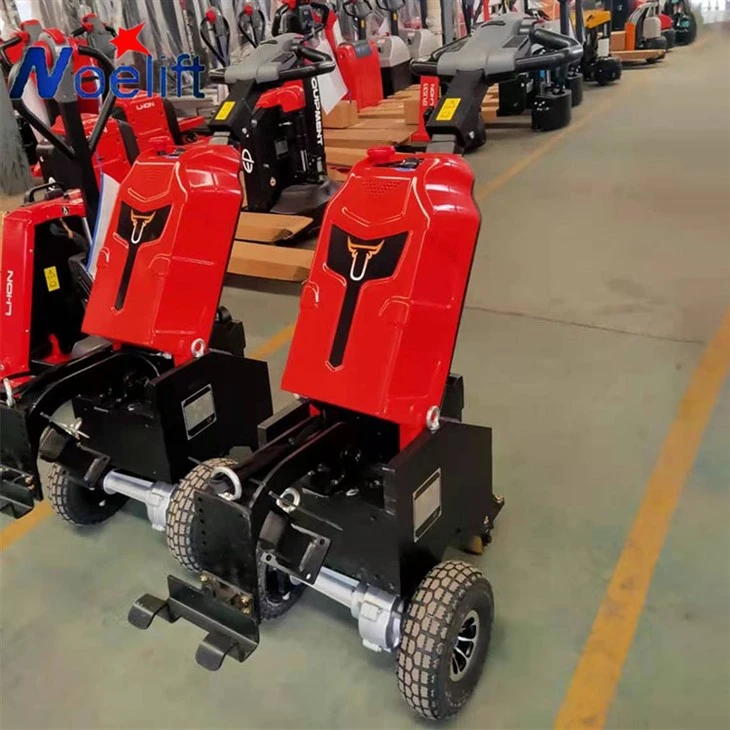

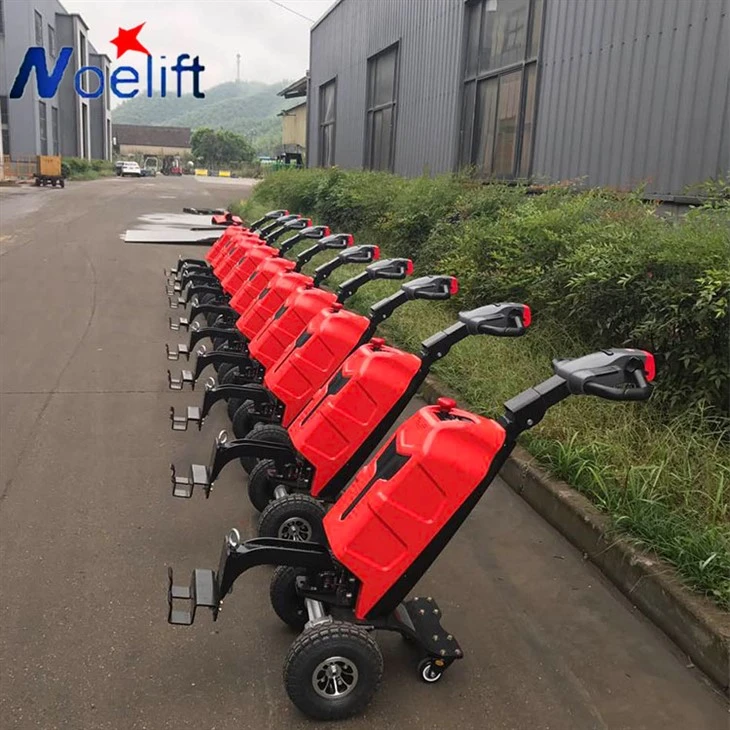

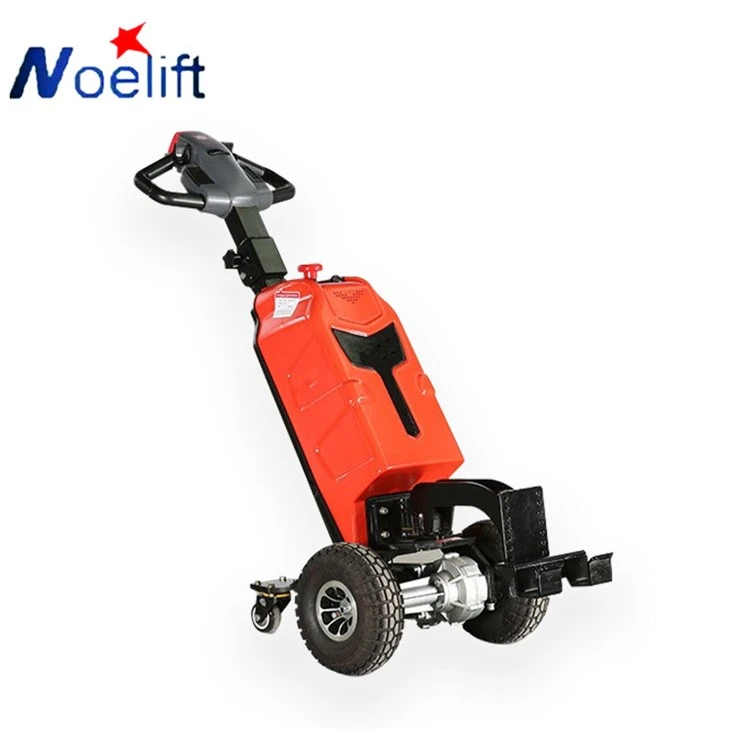

1t Trolley Pusher Tug
Improve safety and productivity by reducing the strain involved in the transport of common industrial carts.
Electric Tow Tug Specifications
Electric walkie tugger,
Load capacity: 1000kg, 1500kg
Improve safety and productivity by reducing the strain involved in the transport of common industrial carts.
PERFORMANCE
Performance may be reduced depending on the type of cart being towed, cart wheel size and composition, integration of to warm tools with cart providing adequate weight transfer, and other factors.
DUTY CYCLE
Revolutionary Easy Exchange Battery delivers up to 2 hours of continuous operation and can be fully charged within2.5 hours. Optional extra batteries can be used to extend run time or to serve as a reliable back-up.
Specifiction parameters
| Distinguishing mark | ||||
| 1.1 | Manufacturer | Noelift | ||
| 1.2 | Model designation | QDD10 | ||
| 1.3 | Drive unit | Electric | ||
| 1.4 | Type of operation | pedestrian | ||
| 1.5 | Rated capacity | Q | t | 1.0 |
| 1.7 | Rated drawbar pull | F | N | 200 |
| 1.9 | Wheelbase | y(mm) | mm | 315 |
| Weight | ||||
| 2.1 | Service weight(include battery) | kg | 98 | |
| 2.2 | Axle loading,laden driving side/loading side | 98/0 | ||
| 2.3 | Axle loading,unladen driving side/loading side | kg | 78/20 | |
| Types,Chassis | ||||
| 3.1 | Tyre type driving wheels/lbading wheels | rubber | ||
| 3.2 | Tyre size,driving wheels(diameterxwidth) | mm | 2x中250x85 | |
| 3.3 | Tyre size,loading wheels(diameterxwidth ) | mm | 2x φ75x32 | |
| 3.5 | Wheels,number drivingr/loading (x=drnive wheels) | mm | 2x/2 | |
| 3.6 | Track width,front,driving side | b(mm) | mm | 428 |
| 3.7 | Track width,rear,loading side | b(mm) | mm | 217 |
| Dimensions | ||||
| 4.8 | standing height | h₇ (mm) | mm | |
| 4.9 | Height drawbar in driving position min/max | hu(mm) | mm | 835～930~1010 |
| 4.12 | Tow coupling height scope | h₀ (mm) | mm | |
| 4.19 Overall length | ,(mm) | mm | 1255~1315-1345 | |
| 4.21 0verall width | b,/b₂ (mm) | mm | 520 | |
| 4.32 | Ground clearance,center of wheelbase | m₃ (mm) | mm | |
| Performance dala | ||||
| 5.1 | Travel speed,laden/unladen | km/h | 4.5/5 | |
| 5.5 | Drawbar pull,laden/unladen | N | 200 | |
| 5.6 | Max,drawbar pull,laden/unladen | N | 650 | |
| 5.7 | Gradeability,laden/unladen | % | 3/16 | |
| 5.10 Service brake type | Mechanica | |||
| Electe-englne | ||||
| 6.1 | Drive motor rating S260 min | kW | 0.4 | |
| 6.3 | The maximum allowed size battery | mm | 196/165/175 | |
| 6.4 | Battery voltage/nominal capacity K20 | VIAh | 24/50 | |
| 6.5 | Battery weight | kg | 2x19 | |
| Addition data | ||||
| 8.1 | Type of drive unit | DC | ||
| 10.5 | Steering type | Mechanica | ||
| 10.7 | Sound pressure level at the driver's ear | dB(A) | 74 | |
