3ton 6ton Electric Towing Tractor For Towing Luggage
PU wheels, battery 24V, with charger
Option: warning light, buzzer, side slide battery design for easy battery change and charge.
Elevtric Towing Tractor Specifications
Electric towing tractor, standing drive type, rated loading capacity 2ton and 3ton, PU wheels, battery 24V, with charger,
Option: warning light, buzzer, side slide battery design for easy battery change and charge.
1. Great Flexibility with Minimum Volume: Light Self weight of 98KG only and the application of differential mechanism make it more flexible and easier to operate.
2. Strong Traction: It can manage the towing task of 1000KG goods on a slope of 3 degrees.
3.Stability in Operation and Excellent passingability: the application of rubber tyre with a diameter of 250mm.
4.Easy to Charge: With the application of internal chargers, charging process can be realised where there is a socket.
5. Comfortability in Operation: The height of the tiller is adjustable.

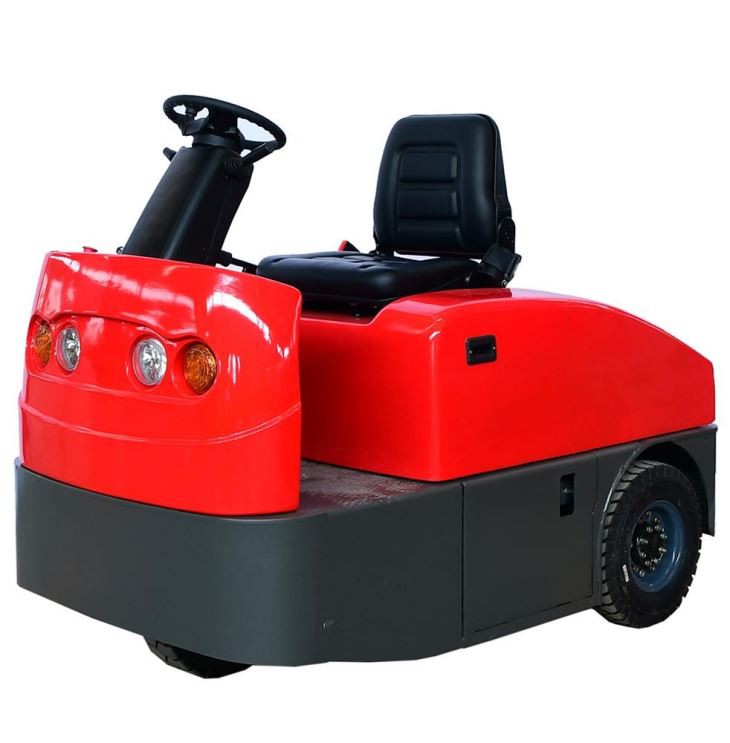

6ton seated operation Electric Towing Tractor TG60,
battery 48V,with charger,pneumatic tyres, USA curtis controller.
Option: cabin
Specifiction parameters
| 1.2 | Model | TG60 | |
| 1.3 | Power type | Battery | |
| 1.4 | Operation type | Seat | |
| 1.5 | Towing capacity | Q(kg) | 6000 |
| 1.6 | Rated drawbar pull | F(N) | 1200 |
| 1.7 | Wheelbase | y(mm) | 1040 |
| 2.1 | Tire type front/rear | Solidr/Pneumatic | |
| 2.2 | Front wheel size | 4.00-8 | |
| 2.3 | Rear wheel size | 4.00-8/6PR | |
| 2.4 | Wheel quantity Front/Rear(X=driving) | 1/2X | |
| 2.5 | Wheel tread, front/rear | b2(mm) | 0/870 |
| 3.1 | Overall height(include cabin) | h5(mm) | 2045 |
| 3.2 | Height of seat | h3(mm) | 895 |
| 3.3 | Hook height | h1(mm) | 210/275/340/405 |
| 3.4 | Platform height,without load | h2(mm) | 610 |
| 3.5 | Overall length | L1(mm) | 1790 |
| 3.6 | Rear overhang | L2(mm) | 405 |
| 3.7 | Loading platform width | b3(mm) | 790 |
| 3.8 | Wheel base | y(mm) | 1290 |
| 3.9 | Overall width | b1(mm) | 990 |
| 3.10 | Turning radius | Wa(mm) | 1650 |
| 4.1 | Driving speed load/unload | km/h | 7/17 |
| 4.2 | Max. Towing power (S2 5) | N | 4500 |
| 4.3 | Grade ability(S2 5)load/unload | % | see graph |
| 4.4 | Service brake | hydraulic/electric | |
| 4.5 | Driving motor power(S2 60) | kw | 4.5 |
| 4.6 | Steering | electric steering | |
| 4.7 | Battery V/AH | V/Ah | 48/280 |
| 4.8 | Battery capacity option | Ah | 350 |
| 4.9 | Noise level at operator's ear | dB | 66 |
| 5.1 | Battery weight | kg | 475 |
| 5.2 | Total weight(inclue battery) | kg | 1000 |
