2ton 3ton Electric Towing Tractor TG30
Electric towing tractor, standing drive type,
rated loading capacity 2ton and 3ton,
PU wheels, battery 24V, with charger,
Option: warning light, buzzer, side slide battery design for easy battery change and charge.
1. Great Flexibility with Minimum Volume: Light Self weight of 98KG only and the application of differential mechanism make it more flexible and easier to operate.
2. Strong Traction: It can manage the towing task of 1000KG goods on a slope of 3 degrees.
3.Stability in Operation and Excellent passingability: the application of rubber tyre with a diameter of 250mm.
4.Easy to Charge: With the application of internal chargers, charging process can be realised where there is a socket.
5. Comfortability in Operation: The height of the tiller is adjustable.
Send Inquiry
Product Introduction
Electric towing tractor, standing drive type,
rated loading capacity 2ton and 3ton,
PU wheels, battery 24V, with charger,
Option: warning light, buzzer, side slide battery design for easy battery change and charge.

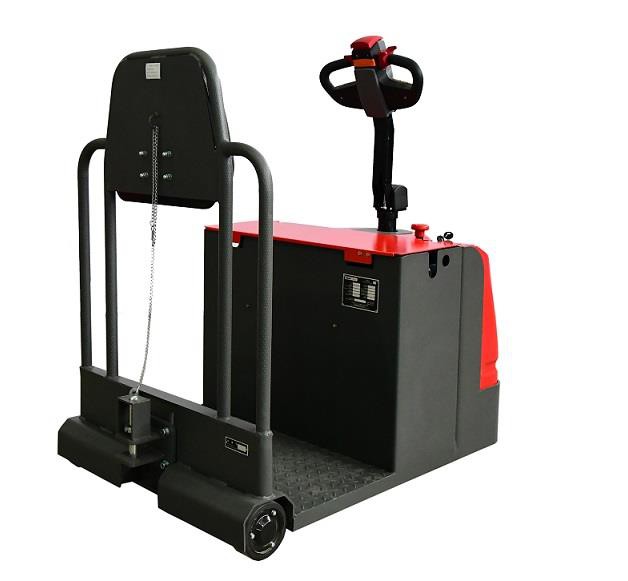

Standing drive Towing Tractor photos:
Battery power Electric towing tug Specification:
| 1.2 | Model | TG20 | TG30 | |
| 1.3 | Power type | Battery | Battery | |
| 1.4 | Operation type | Stand-on | Stand-on | |
| 1.5 | Towing capacity | Q(kg) | 2000 | 3000 |
| Tire、 Rim | ||||
| 2.1 | Tire type front/rear | Rubber/PU | Rubber/PU | |
| 2.2 | Front wheel | φ215×75 | φ215×75 | |
| 2.3 | Driving wheel | φ100×40 | φ150×60 | |
| 2.4 | Wheel quantity Front/Rear(X=driving) | 1X / 2 | 1X / 2 | |
| Dimension | ||||
| 3.1 | Overall height | h3(mm) | 1435 | 1340 |
| 3.2 | Min. under-clearance | h8(mm) | 50 | 50 |
| 3.3 | Hook height | h10(mm) | 120～220 | 140～240 |
| 3.4 | Overall length | l1(mm) | 1230 | 1300 |
| 3.5 | Wheel base | y(mm) | 883 | 975 |
| 3.6 | Overall width | b1(mm) | 600 | 850 |
| 3.7 | Tread (front/rear) | b3/b4(mm) | 0/510 | 0/770 |
| 3.8 | Turning radius | Wa(mm) | 1070 | 1160 |
| Function | ||||
| 4.1 | Driving speed load/unload | km/h | 4/6.7 | 4/6.7 |
| 4.2 | Towing power (S2 5) | N | 2300 | 2300 |
| 4.3 | Grade ability(S2 5)load/unload | % | / | / |
| Power | ||||
| 5.1 | Driving motor type | AC/DC | AC/DC | |
| 5.2 | Driving motor power(S2 60) | kw | 1.5/1.2 | 1.5/1.2 |
| 5.3 | Battery V/AH | V/Ah | 24/210 | 24/210 |
| Weight | ||||
| 6.1 | Battery weight | kg | 200 | 200 |
| 6.2 | Total weight(include battery) | kg | 520 | 550 |
| Steering、Braking | ||||
| 7.1 | Steering type | Manul | Manul | |
| 7.2 | Service brake type | Electromagnetism | Electromagnetism | |
| 7.3 | Service brake | Handle | Handle | |
| 7.4 | Parking brake type | Electromagnetism | Electromagnetism | |

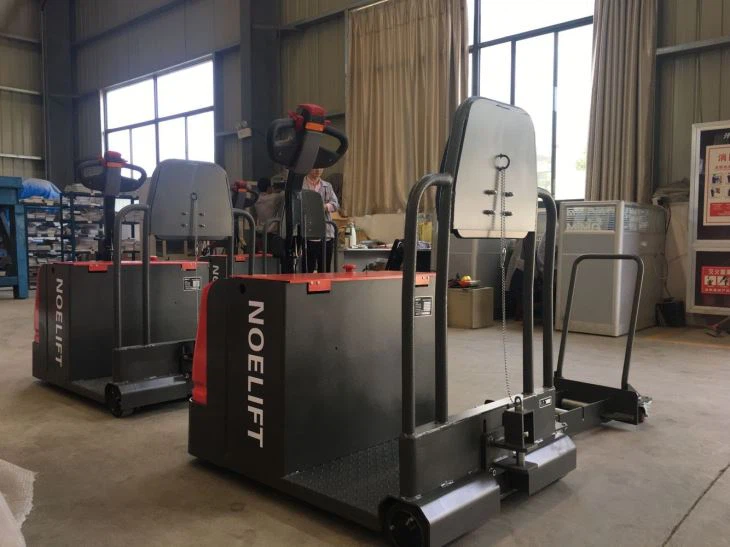

Tow Tugger Factory workshop
