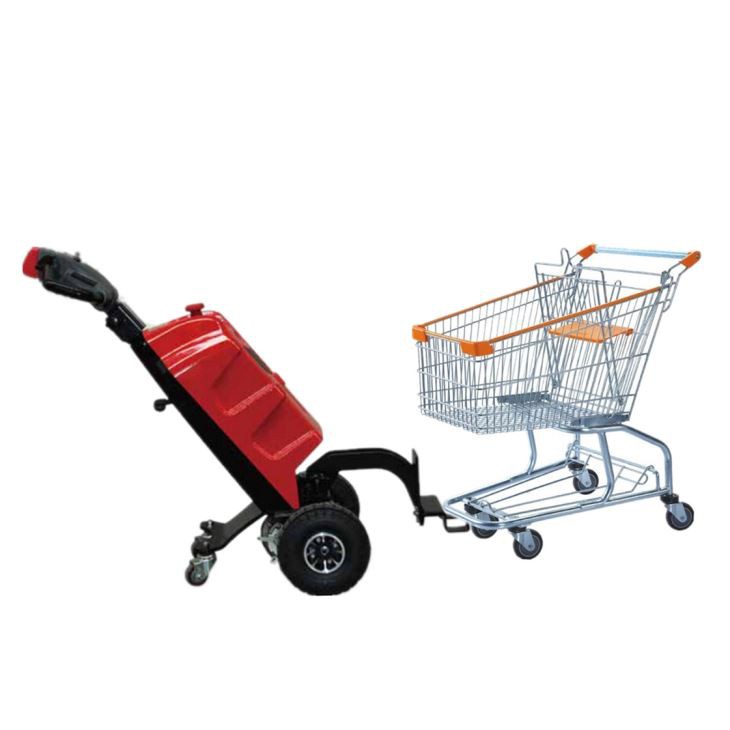

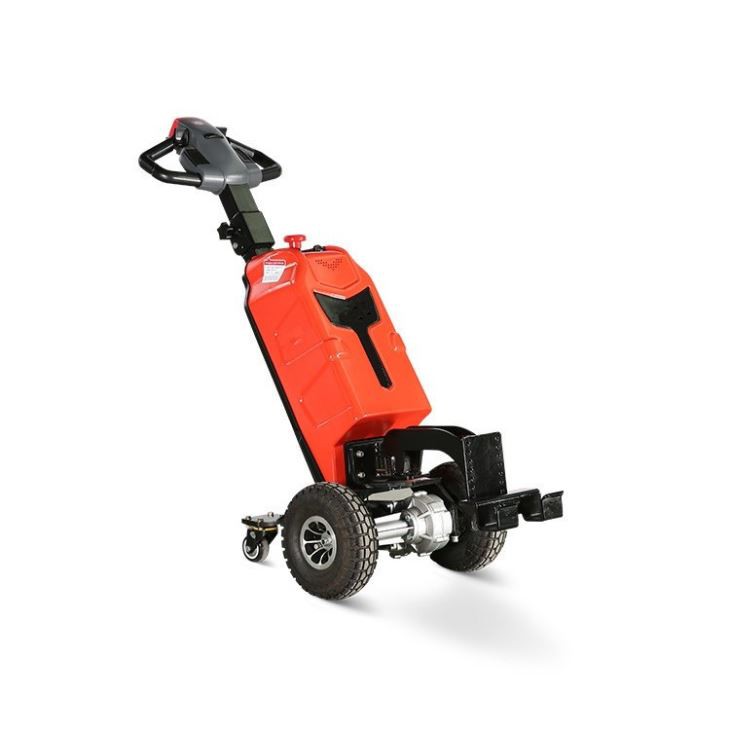

2000lbs Electric Tow Tug
1t mini electric tow truck for cart handler
1. Great Flexibility with Minimum Volume: Light Self weight of 98KG only and the application of differential mechanism make it more flexible and easier to operate.
2. Strong Traction: It can manage the towing task of 1000KG goods on a slope of 3 degrees.
3.Stability in Operation and Excellent passingability: the application of rubber tyre with a diameter of 250mm.
4.Easy to Charge: With the application of internal chargers, charging process can be realised where there is a socket.
5. Comfortability in Operation: The height of the tiller is adjustable.
Send Inquiry
Product Introduction
1000kg 1ton electric tow tug, 1ton Electric tow tractor
hot sale for Australia, Canada, America, Mexico, etc.
Smart move design, light serive weight, easy operation.
1ton Electric Tugger Specification
| Model | QDD10 | |
| Rated capacity | Q, kg | 1000 |
| Rated drawbar pull | F, N | 200 |
| Service weight(include battery) | kg | 98 |
| Tyre type | rubber | |
| Tyre size, driving wheels | mm | Φ250x85 |
| Tyre size, loading wheels | mm | Φ75x32 |
| Tyre quantity, driving/loding wheel | 2/2 | |
| Overall length | l1, mm | 1255-1345 |
| Overall width | b1/b2, mm | 520 |
| Travel speed, laden/unladen | km/h | 4.5/5 |
| Drawbar pull, laden/unladen | N | 200 |
| Max.drawbar pull, laden/unladen | N | 650 |
| Gradeability, laden/unladen | % | 3/16 |
| Drive motor | Kw | 0.4 |
| Battery voltage/nominal capacity K20 | V/Ah | 24/50 |
| Battery weight | kg | 38 |
| Type of drive unit | DC | |
| Steering type | Mechanical | |
| Sound pressure level at the driver's ear | dB(A) | 74 |
