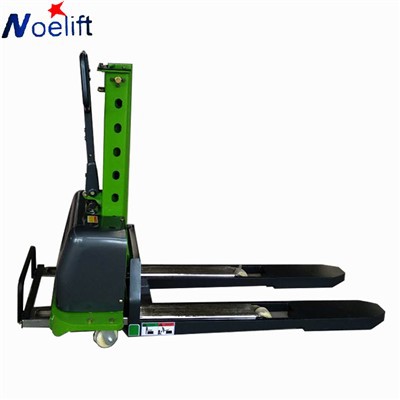

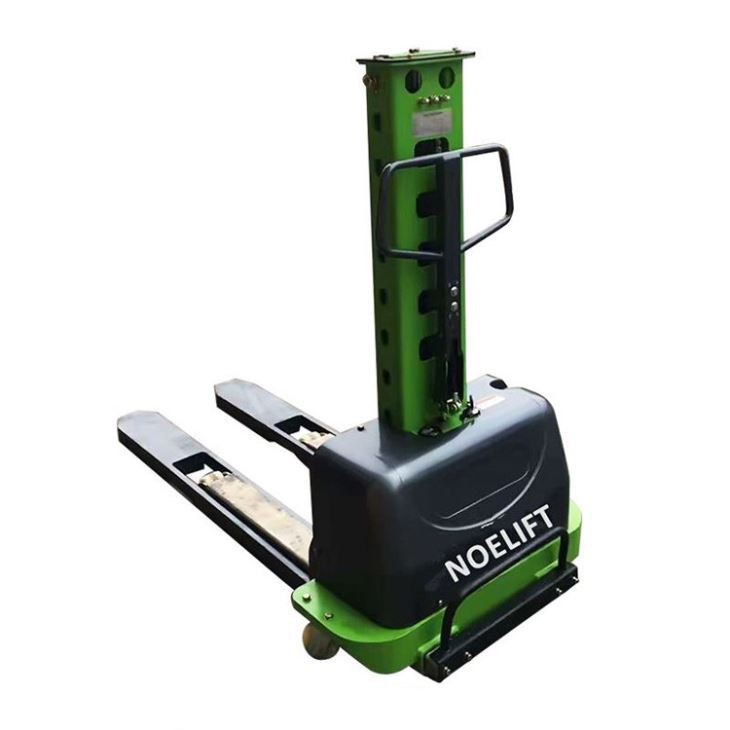

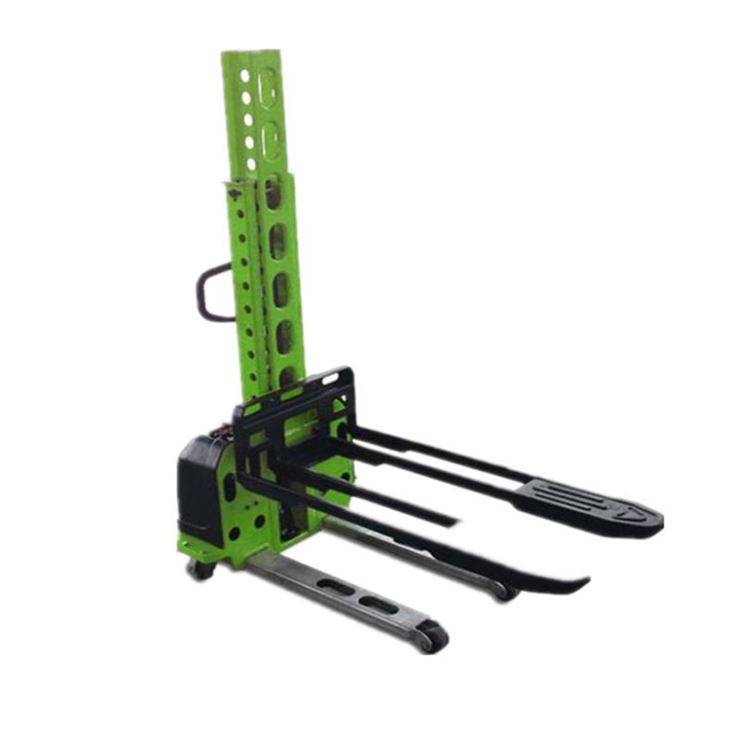

Self Loading Van Stacker
FAQ:
1. How to place an order?
A:Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on Trademanager or Skype ,We will send you our offer in 24 hours. If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.
2. How could i pay them?
A: We accept Western Union (for parts order, order value less than $1500); T/T(bank transfer,order value at least $1500); L/C (Irrevocable LC at sight, order value at least $10000 )
Specification of 500kg electric pallet stacker
Features | 1.1 | Model | CDD05Z | ||
1.2 | Power unit | Battery | |||
1.3 | Rated capacity | Q | kg | 500 | |
1.4 | Load center | c | mm | 400 | |
1.5 | Wheel base | L0 | mm | 758 | |
1.6 | Front track base | W1 | mm | 380 | |
1.7 | Rear track base | W2 | mm | 665 | |
1.8 | Operator type | Pedestrian/Standing | |||
Tyres | 2.1 | Tyre type(Front/Rear) | Nylon | ||
2.2 | Balance/Load wheels | 2/2 | |||
2.3 | Load wheel size | mm | Φ70×60 | ||
2.4 | Balance wheel size | mm | φ100×45 | ||
Demension | 3.1 | Lowered Fork height | H2 | mm | 85 |
3.2 | Max.lifting height | H | mm | 1200 | |
3.3 | Max.fork width | W3 | mm | 535 | |
3.4 | Fork length | L2 | mm | 1150 | |
3.5 | Fork width×Fork thickness | B | mm | 155×60 | |
3.6 | Overall length | L1 | mm | 1570 | |
3.7 | Total width | W | mm | 786 | |
3.8 | Overall height(Mast closed) | H1 | mm | 1597 | |
3.9 | Overall height(Fork lowering) | H3 | mm | 1618 | |
4.0 | Min.turning radius | Wa | mm | 1100 | |
Performance | 4.1 | Lifting speed | mm/s | 55 | |
4.2 | Lowering speed | mm/s | 70 | ||
4.3 | Lifting motor power | kW | DC0.8 | ||
4.4 | Battery voltage | V | 12 | ||
4.5 | Battery capacity | Ah | 45 | ||
Weight | 5.1 | Battery weight | kg | 13.5 | |
5.2 | Operating weight(with battery) | kg | 245 | ||
Specification of 500kg electric pallet stacker
Features | 1.1 | Model | CDD05Z | ||
1.2 | Power unit | Battery | |||
1.3 | Rated capacity | Q | kg | 500 | |
1.4 | Load center | c | mm | 400 | |
1.5 | Wheel base | L0 | mm | 758 | |
1.6 | Front track base | W1 | mm | 380 | |
1.7 | Rear track base | W2 | mm | 665 | |
1.8 | Operator type | Pedestrian/Standing | |||
Tyres | 2.1 | Tyre type(Front/Rear) | Nylon | ||
2.2 | Balance/Load wheels | 2/2 | |||
2.3 | Load wheel size | mm | Φ70×60 | ||
2.4 | Balance wheel size | mm | φ100×45 | ||
Demension | 3.1 | Lowered Fork height | H2 | mm | 85 |
3.2 | Max.lifting height | H | mm | 1200 | |
3.3 | Max.fork width | W3 | mm | 535 | |
3.4 | Fork length | L2 | mm | 1150 | |
3.5 | Fork width×Fork thickness | B | mm | 155×60 | |
3.6 | Overall length | L1 | mm | 1570 | |
3.7 | Total width | W | mm | 786 | |
3.8 | Overall height(Mast closed) | H1 | mm | 1597 | |
3.9 | Overall height(Fork lowering) | H3 | mm | 1618 | |
4.0 | Min.turning radius | Wa | mm | 1100 | |
Performance | 4.1 | Lifting speed | mm/s | 55 | |
4.2 | Lowering speed | mm/s | 70 | ||
4.3 | Lifting motor power | kW | DC0.8 | ||
4.4 | Battery voltage | V | 12 | ||
4.5 | Battery capacity | Ah | 45 | ||
Weight | 5.1 | Battery weight | kg | 13.5 | |
5.2 | Operating weight(with battery) | kg | 245 | ||
