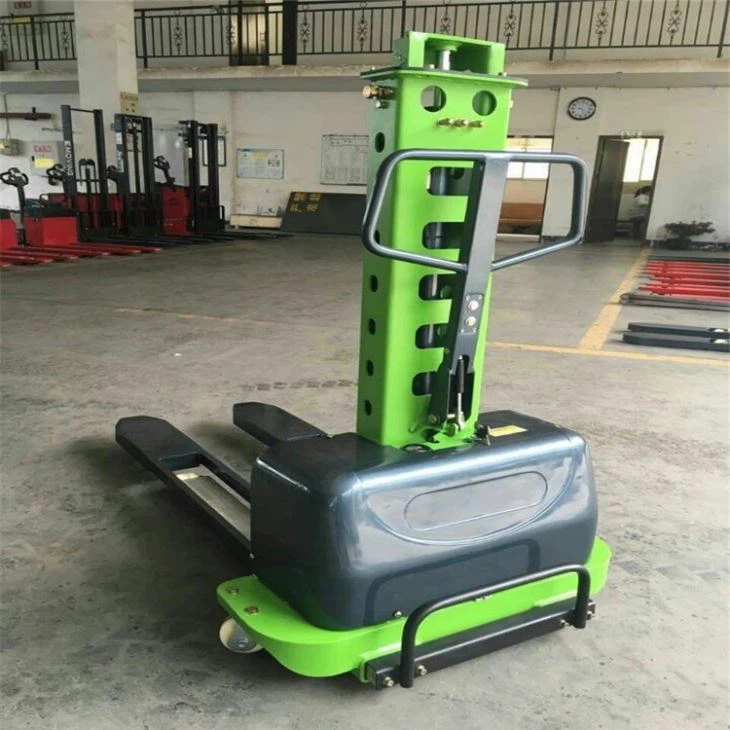

Convenient Mini 500kg Self Loading Pallet Stacker
After sales service
1.The internal gantry is independent posts and connected to the fork with bolts.The piston rod moves up and down to elevate and descend the goods,without the help of the roller board to transmit. The external post is the supporting post,welded to the rack platform,which reduces the total height and weight.
Certification :
Specification of 500kg electric pallet stacker
Features | 1.1 | Model | CDD05Z | ||
1.2 | Power unit | Battery | |||
1.3 | Rated capacity | Q | kg | 500 | |
1.4 | Load center | c | mm | 400 | |
1.5 | Wheel base | L0 | mm | 758 | |
1.6 | Front track base | W1 | mm | 380 | |
1.7 | Rear track base | W2 | mm | 665 | |
1.8 | Operator type | Pedestrian/Standing | |||
Tyres | 2.1 | Tyre type(Front/Rear) | Nylon | ||
2.2 | Balance/Load wheels | 2/2 | |||
2.3 | Load wheel size | mm | Φ70×60 | ||
2.4 | Balance wheel size | mm | φ100×45 | ||
Demension | 3.1 | Lowered Fork height | H2 | mm | 85 |
3.2 | Max.lifting height | H | mm | 1200 | |
3.3 | Max.fork width | W3 | mm | 535 | |
3.4 | Fork length | L2 | mm | 1150 | |
3.5 | Fork width×Fork thickness | B | mm | 155×60 | |
3.6 | Overall length | L1 | mm | 1570 | |
3.7 | Total width | W | mm | 786 | |
3.8 | Overall height(Mast closed) | H1 | mm | 1597 | |
3.9 | Overall height(Fork lowering) | H3 | mm | 1618 | |
4.0 | Min.turning radius | Wa | mm | 1100 | |
Performance | 4.1 | Lifting speed | mm/s | 55 | |
4.2 | Lowering speed | mm/s | 70 | ||
4.3 | Lifting motor power | kW | DC0.8 | ||
4.4 | Battery voltage | V | 12 | ||
4.5 | Battery capacity | Ah | 45 | ||
Weight | 5.1 | Battery weight | kg | 13.5 | |
5.2 | Operating weight(with battery) | kg | 245 | ||
