Hot Product Self-elevating Electric Self Loading Forklift
PRODUCT SPECIFICATIONS
Double-control switch design
Light in weight Max load reaches to 500KG
Large capacity battery
Model | CDD05A08 | CDD05A09 | CDD05A10 | CDD05A11 | CDD05A12 | CDD05A13 |
Power type | Battery | |||||
Rated load | 500KG | |||||
Load center | 500MM | |||||
Total Weight (Include Battery) | 305KG | 310KG | 315KG | 320KG | 325KG | 330KG |
Fork Height | 800mm | 900mm | 1000mm | 1100mm | 1200mm | 1300mm |
Overall Height (Mast Closed) | 1107mm | 1207mm | 1307mm | 1407mm | 1507mm | 1607mm |
Overall Length | 1676mm | |||||
Width | 658mm | |||||
Lift motor power | DC0.8KW | |||||
Drive motor power | DC 0.6KW | |||||
Battery Voltage/ Capacity | 48V/15AH | |||||
FEATURES AT A GLANCE
1. Steering Chain auxiliary device
2. The foot brake, more stable
3. Sealed batteries free of maintenance; safe operation and no pollution
4. Explosion-proof valve design; down more stable and reliable
5. Over discharge protection, extending battery life

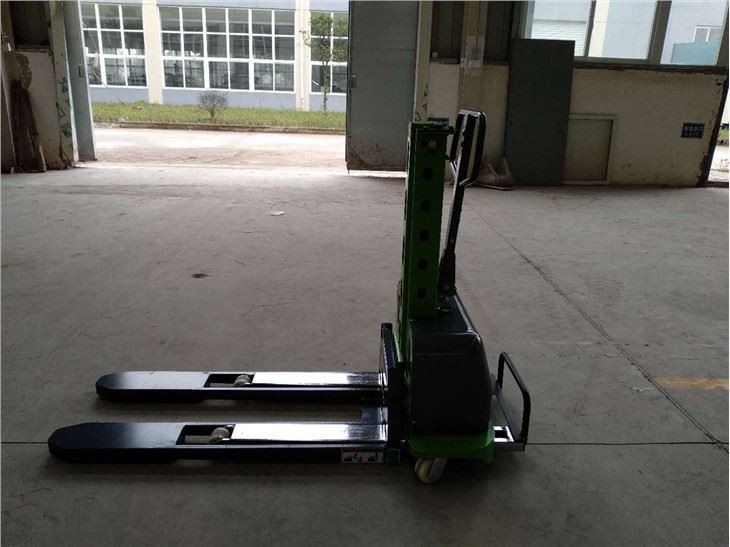

Right elevation
Left elevation
