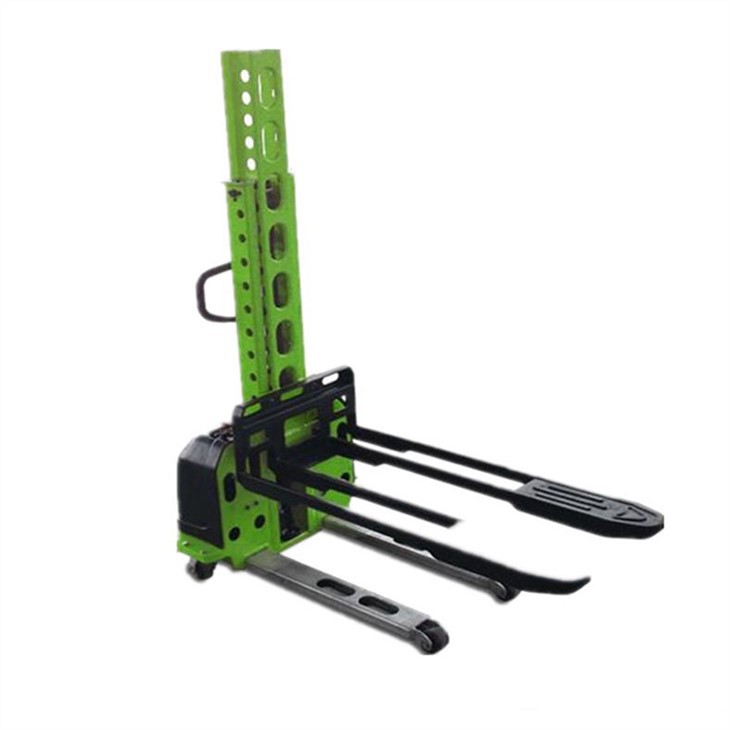

Electricity Truck Of Self Loading Forklift Stacker
Electricity Truck Of Self Loading Forklift Stacker
| 1 | Model | CDD05Z | ||
| 2 | Brand/Manufacturer | NOELIFT | ||
| 3 | Operation | Manual Driving, Electrical Lifting | ||
| 4 | Capacity | 500Kg | 500Kg | 500Kg |
| 5 | Weight | 193Kg | 200Kg | 219Kg |
| 6 | Lift Height | 800mm | 1000mm | 1300mm |
| 7 | Height in Lowerd Position | 1200mm | 1400mm | 1600mm |
| 8 | Overall length | 1600mm | 1600mm | 1600mm |
| 9 | Overall width | 786mm | 786mm | 786mm |
| 10 | Fork Length | 1250mm | 1250mm | 1250mm |
| 11 | Fork Width | 540mm | 540mm | 540mm |
| 12 | Material of Wheels | Polyurethane | Polyurethane | Polyurethane |
| 13 | Steering wheel size | 100x45 | 100x45 | 100x45 |
| 14 | Loading wheel size | 70x60 | 70x60 | 70x60 |
| 15 | Motor Power Lifting | 0.7kw | 0.7kw | 0.7kw |
| 16 | Battery | 12/45V/Ah | 12/45V/Ah | 12/45V/Ah |
| 17 | Charger Battery | inclusive | inclusive | inclusive |
| 18 | Brake Type | Mechanical | Mechanical | Mechanical |
| 19 | Lifting speed | 80Mm/s | 80Mm/s | 80Mm/s |
| 20 | Descend speed | 90Mm/s | 90Mm/s | 90Mm/s |
| 21 | Turning radius | 1100Mm | 1200Mm | 1200Mm |



our company New Electric staddle Stacker for sale walkie pallet stacker 500kg self loading forklift NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1ton to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.
