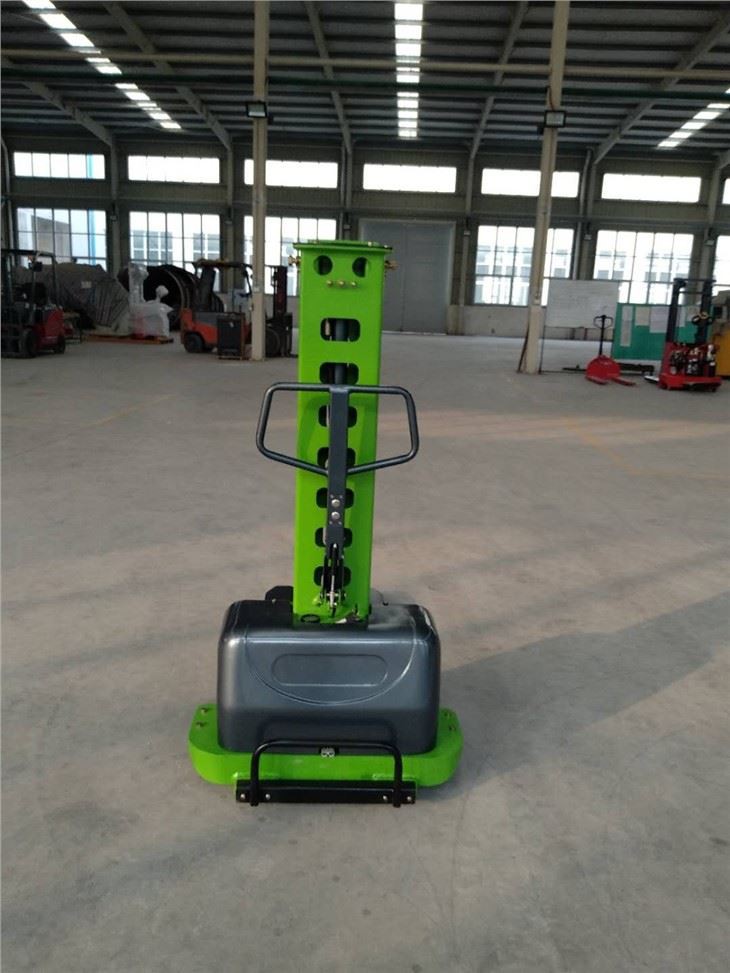

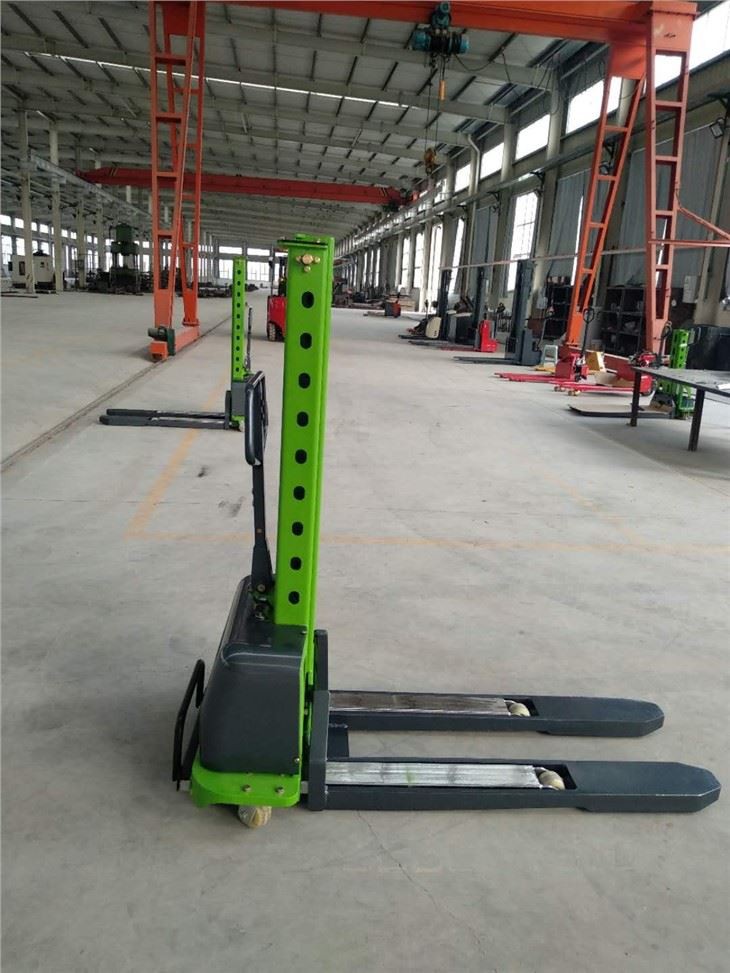

Spain Bulk 500kg 1m Height Portable Lift Stacker

Innolift stacker, self loader, self lift stacker, load capacity: 500kg, lift height, 800mm, 1m 1.2m& 1.3m optional.
1. Steering Chain auxiliary device;
2. The foot brake, more stable;
3. Sealed batteries free of maintenance; safe operation and no pollution;
4. Explosion-proof valve design down more stable and reliable;
5. Over discharge protection, extending battery life.

item	unit	CDD05Z
capacity	kg	500	500
loading center	mm	400	400
wheelbase	mm	860	860
front wheel distance	mm	380	380
rear track	mm	670	670
min.fork height	mm	90	90
max.fork height	mm	1000	1300
height of frame(fork down)	mm	1400	1600
the lifting height of the whole	mm	2700	2700
minimum right angle channel width	mm	1150	1150
steeling wheel	mm	Φ100x45	Φ100x45
loading wheel	mm	Φ70x60	Φ70x60
overall lenghth	mm	1600	1600
overall width	mm	780	780
fork size	l/e/s	1250x155x60	1250x155x60
forkwidth	mm	535	535
turning radius	mm	1100	1200
lifting speed	mm/s	80	80
descent speed	mm/s	90	90
lifting motor power	kw	12v/0.8	12v/0.8
battery	V/AH	12/45	12/45
type of driving		pedestrian	pedestrian
material of wheel		nylon	nylon
net weight	kg	197	219

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

1. One-stop solutions offer

2. OEM services offer

3. 24 hours non stop service offer

4. Track the products for you once every two days, until you get the products.

5. During warrarnty, spare parts delivery within one week for free.

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
