Four-way Driving Forklifts 3t 8meter Rubber Wheels
Product Overview

MQD30-Four-way Electric Forklift Truck
1. Handling of long materials, rotating in front, rear, left, right, oblique, in situ.
2. Maintenance free ac drive system, brake on all wheels.
3. Standard forks with adjustable distance so that the trolley can be adapted to different requirements for moving materials over long distances.
4. Imported multi-way valve, comfortable, safe and stable operation.
5. Ergonomics design, large cabin space, high visibility hydraulic steering, regular operation.
6. Ops cushioned seat, comfortable driving.
7. Tyres made of solid rubber may be used outdoors.
FEATURES AT A GLANCE

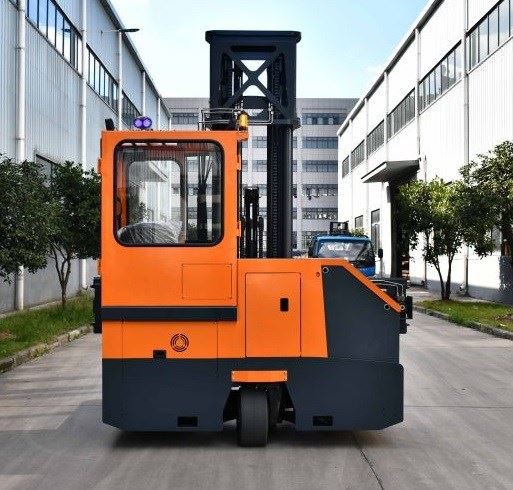

Right elevation

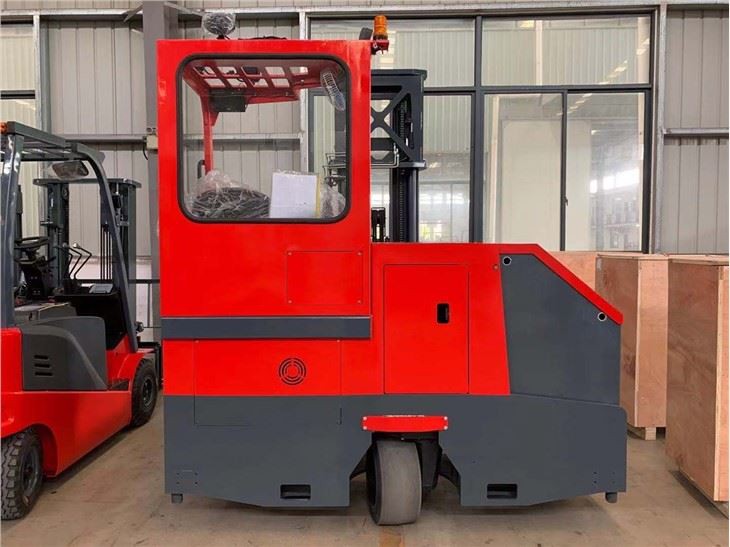

Left elevation

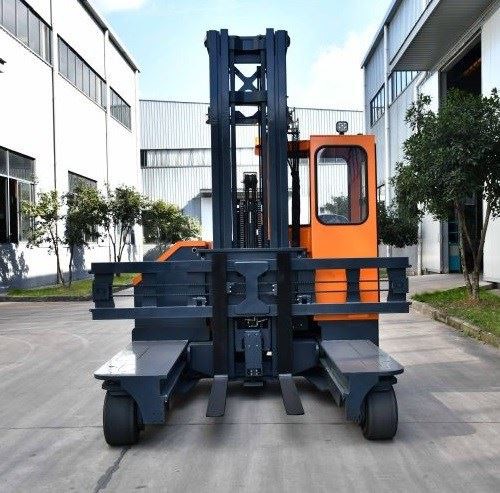

Front elevation

PRODUCT SPECIFICATIONS
Brand | NOELIFT | |
Model | MQD30 | |
Power type | Battery | |
Operation type | Seat | |
Rated capacity | Q(kg) | 3000 |
Load center | C(mm) | 600 |
Front overhang | x(mm) | 312 |
Wheelbase | y(mm) | 1895 |
Side driving speed,load/unload | km/h | 8.0/9.0 |
Straight driving speed,load/unload | km/h | 5.0/5.0 |
Lifting speed,load/unload | mm/s | 180/300 |
Lowering speed, load/unload | mm/s | 300/220 |
Straight driving Max. gradeability(load/unload)(S2-5min) | %(tanθ ) | 8/10 |
Side driving Max. gradeability (load/unload)(S2-5min) | %(tanθ ) | 8/10 |
Driving motor (S2-60min) | kw | Mechanical/Electromagnetic |
Lifting motor (S3-15%) | kw | 12.8AC |
Battery voltage/capacity | V/Ah | 48/560 |
Battery weight | kg | 976 |
PRODUCT CONFIGURATION

Big operating room

MQD30 duplex mast, max.lifting height is 4.5m; MQD30 triplex mast, max.lifting height is 8.0m.

When lifting height exceed 5m, need to equipped with camera
