Empilhadeira Reach Truck Full Electric 48v AC Moto
Control Unit: Original Imported CURTIS AC Controller
Load Capacity: 2,000 kg – 3,500 kg (2.0T – 3.0T)
Max Lift Height: 3,000 mm to 8,000 mm
Battery Options: High-capacity Lead-Acid or Maintenance-Free Lithium-ion battery (48V)

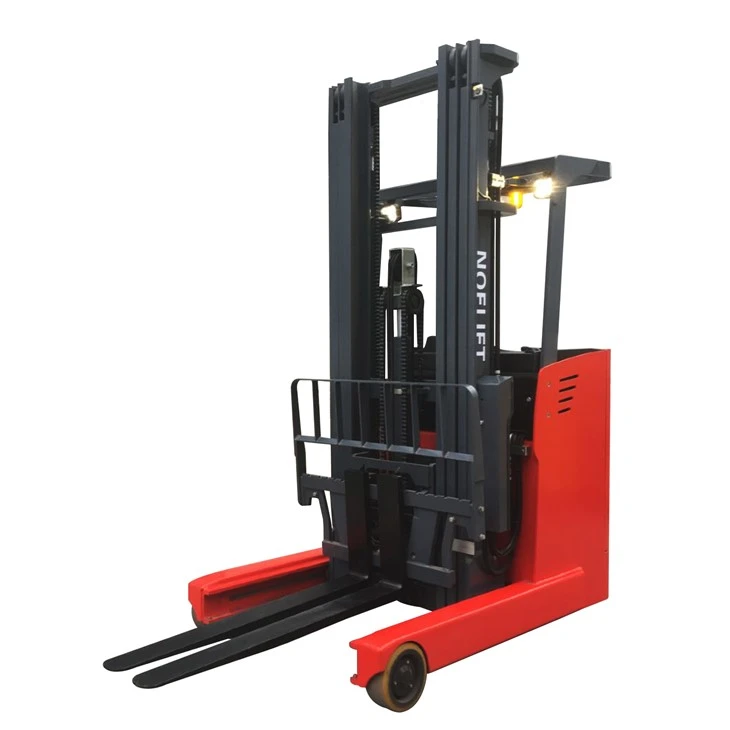

Noelift Full Electric Reach Truck 48V AC (Empilhadeira Elétrica Retrátil 48V)
The Noelift 48V AC Full Electric Reach Truck is built for heavy-duty, high-bay warehouse operations requiring maximum efficiency in narrow aisles. Powered by a premium 48V AC drive motor and imported CURTIS AC controller, it delivers exceptional lifting speed, strong gradeability, and extended battery runtime. Designed for load capacities from 2.0 to 3.0 tons and lift heights up to 8.0 meters, this reach truck is the ultimate solution for optimizing vertical storage density.

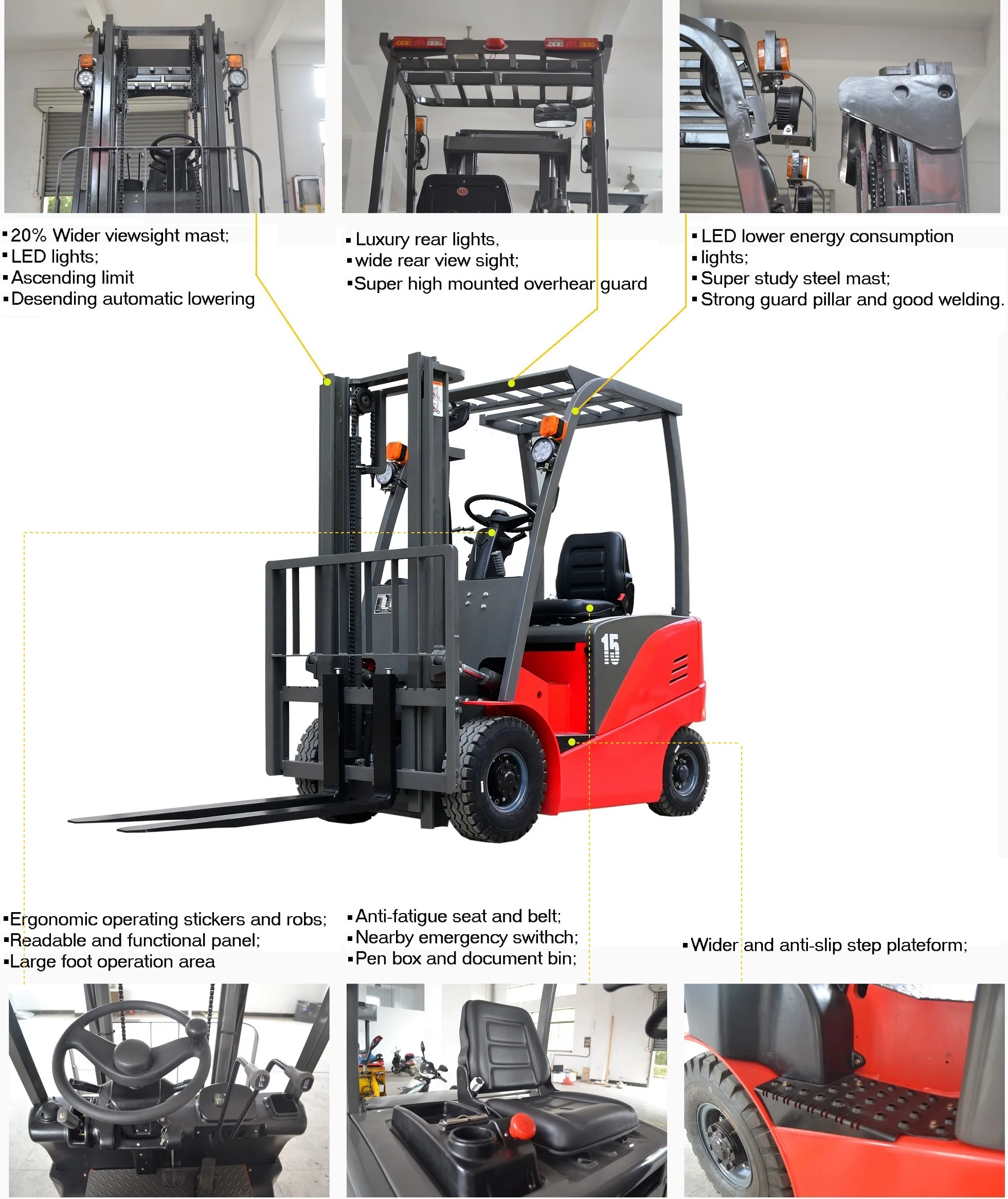

Key Features & Advantages
Multi-Function Display
Designed with an intuitive control interface, responsive multi-function joystick, clear battery indicators
Safety Design
A high-quality overhead guard ensures operator safety during stacking operations
Electric Power Steering (EPS)
Electric Power Steering (EPS) provides effortless, precise maneuvering, reducing operator fatigue during long shifts
Precision and Efficiency
The high-definition vision system provides a clearer view, enabling precise picking and enhancing efficiency
Specifiction parameters
|
Model |
|
TF20 |
TF20SQ |
TF25 |
TF25SQ |
TF30 |
TF30SQ |
|
Power type |
|
Battery |
Battery |
Battery |
Battery |
Battery |
Battery |
|
Driving type |
|
Stand on |
Stand on |
Stand on |
Stand on |
Stand on |
Stand on |
|
Load capacity |
Q(kg) |
2000 |
2000 |
2500 |
2500 |
3000 |
3000 |
|
Load center distance |
C(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
Service weight (incl. battery) |
kg |
2750 |
2950 |
3300 |
3580 |
3400 |
3680 |
|
Fork tilt range: front/ rear |
α/β(°) |
3/5 |
3/5 |
3/5 |
3/5 |
3/5 |
3/5 |
|
Lift height |
h3(mm) |
3000 |
4500 |
3000 |
4500 |
3000 |
4500 |
|
Overall length |
l1(mm) |
2299 |
2336 |
2387 |
2434 |
2487 |
2534 |
|
Overall width |
b1/b2(mm) |
1090/1170 |
1090/1170 |
1190/1270 |
1190/1270 |
1190/1270 |
1190/1270 |
|
Fork dimensions |
l/e/s(mm) |
1070/122/40 |
1070/122/40 |
1070/122/40 |
1070/122/40 |
1070/122/40 |
1070/122/40 |
|
Fork outside spread |
b5(mm) |
244-772 |
244-772 |
244-772 |
244-772 |
250-750 |
250-750 |
|
Reach distance |
l4(mm) |
717 |
677 |
825 |
775 |
925 |
875 |
|
Turning radius |
Wa(mm) |
1784 |
1784 |
1995 |
1995 |
2192 |
2192 |
|
Travelling speed, laden/unladen |
km/h |
9/10 |
9/10 |
9/10 |
9/10 |
8/10 |
8/10 |
|
Battery voltage/nominal capacity |
V/Ah |
48/300 |
48/300 |
48/400 |
48/400 |
48/400 |
48/400 |
|
Battery replacement method |
|
Side pull |
Side pull |
Side pull |
Side pull |
Side pull |
Side pull |
Applications & Suitable Industries
High-Bay Warehousing
Stacking pallets up to 8 meters in narrow aisle layouts
Logistics & Distribution Centers
Fast pallet transport and loading/unloading operations
Manufacturing & Cold Storage
Reliable performance for continuous multi-shift indoor material handling
