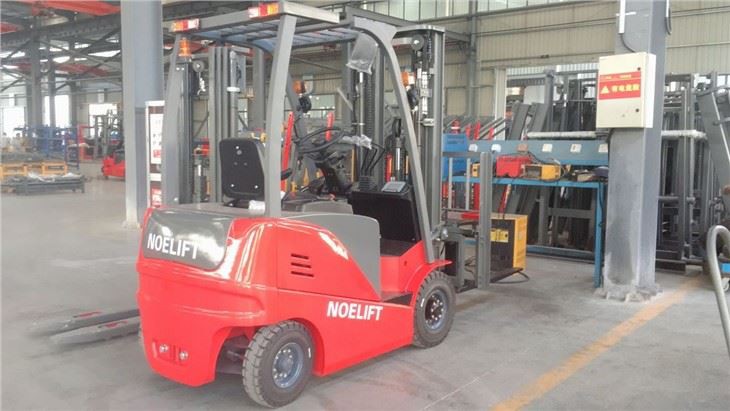

5m Triplex Mast 3t Electric Battaery Forklift With Side Shifter
1.5T-3.5T 4 wheel electric battery forklift
Rated load capacity: 1500-3000kg, lift height: 3000-6000mm, stable performance, comfortable operation, the advantages are as follows:
1. An initiative shocking proof system, to make sure the forklift safer and stability;
2. Strengthen mast with high safety factor;
3. Durability: all-electric connector with water-proof design;
4. The advanced safety system for mast pipeline, to avoid the out of control for the mast when the hydraulic system has a fault, to ensure the good safe;
5. To use MOSFET controller, it's can provide the smooth and cyclic regenerative braking, to extend the working life of motor and battery;
4 WHEEL ELECTRIC FORKLIFT SPECIFICATIONS
| Model | TK15-30 | TK20-30 | TK25-30 | TK30-30 | TK35-30 | TK40-30 |
| Load Capacity | 1500kg | 2000kg | 2500kg | 3000kg | 3500kg | 4000kg |
| Tire type | Pneumatic | pneumatic | pneumatic | pneumatic | pneumatic | pneumatic |
| lift height | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm |
| Aisle Width for pallet 1000*1200mm pallet | 3460m | 3720mm | 3730mm | 3920mm | 4190mm | 4190mm |
| Turning Radius | 1890mm | 2100mm | 2110mm | 2300mm | 2450mm | 2450mm |
| Overall length | 3130mm | 3390mm | 3425mm | 3620mm | 3770mm | 3770mm |
| Duplex mast | TK15&TK40 | |||||||
| Model | TK | unit | TK15-45 | TK20-45 | TK25-45 | TK30-45 | TK35-45 | TK40-45 |
| Height mast lowered | h1 | mm | 2795 | 2795 | 2795 | 2900 | 2900 | 2900 |
| Height mast Extended W/backrest | h4 | mm | 5540 | 5580 | 5580 | 5635 | 5635 | 5635 |
| Free lift height | h2 | mm | 1725 | 1712 | 1712 | 1764 | 1766 | 1766 |
| Triplex mast | TK15&TK40 | |||||||
| Model | tk | unit | TK15-60 | TK20-60 | TK25-60 | TK30-60 | TK35-60 | TK40-60 |
| Height mast lowered | h1 | mm | 2655 | 2645 | 2645 | 2700 | 2700 | 2650 |
| Height mast Extended W/backrest | h4 | mm | 7040 | 7035 | 7035 | 7130 | 7130 | 7130 |
| Free lift height | h2 | mm | 2552 | 2552 | 2552 | 1560 | 1560 | 1496 |
electric forklift with Li-battery& seated electric reach truck
