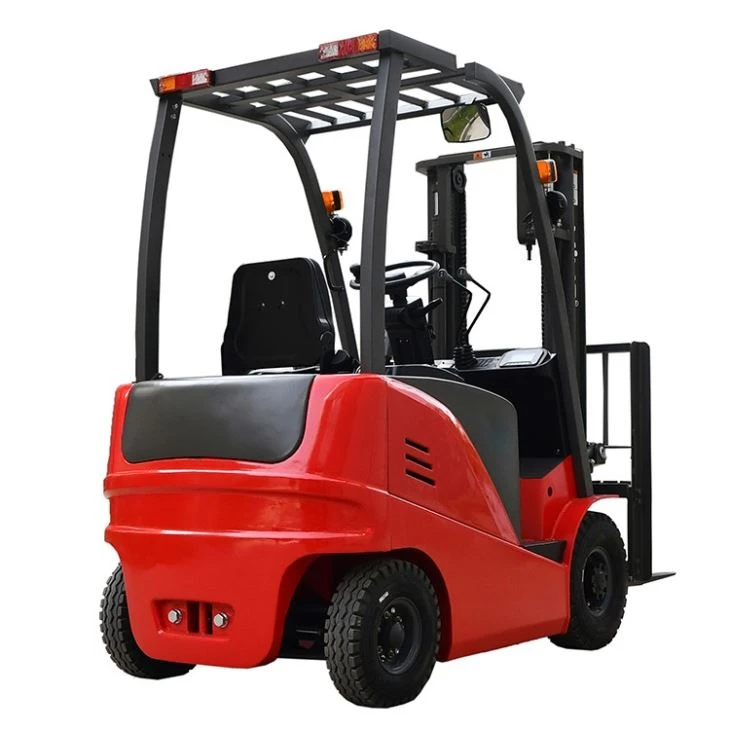

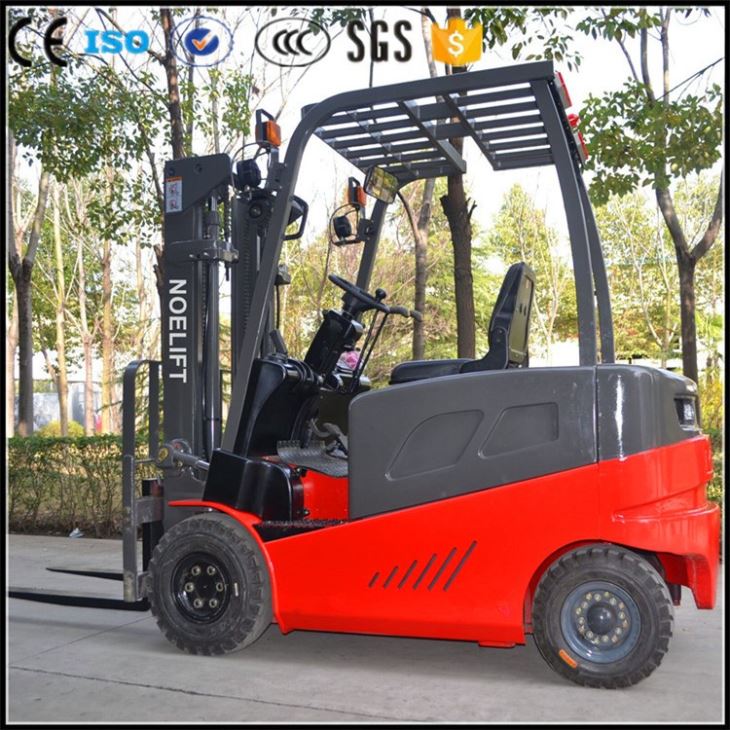

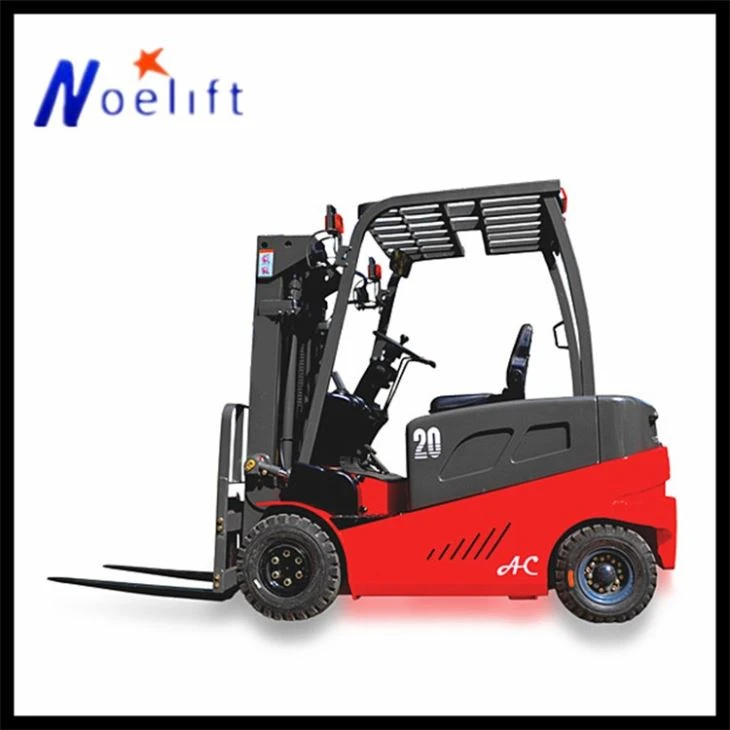

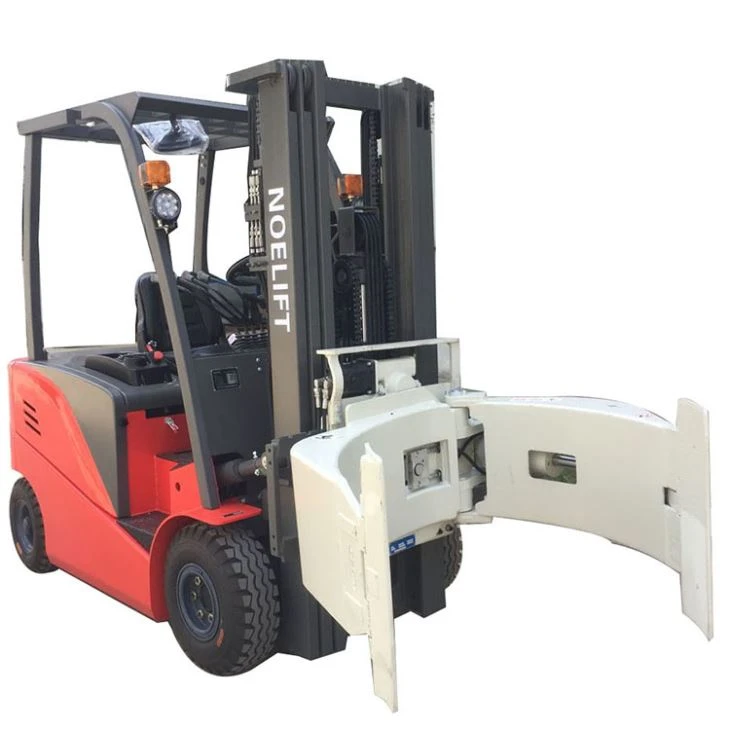

Four Wheel Electric Truck Forklift
lift height: 3000-6000mm,
Using in container
Four Wheel Electric Truck Specifications
1: Equipped with flow-limiting value, even in the situation of oil tube dekrepitation, still can prevent mast fast low down, ensure safety.
2: High strength steel mast sections with combined mast rollers are constructed for low mast deflection and high rigidity.
3: Advanced AC driving motor has high traction power and driving dynamics, the maintenance-free and high efficient AC motors guarantee a long battery operating life.
Specifiction parameters
| Model No. | TK15 | TK20 | TK25 | TK30 | TK35 | |||
| Standard | Power Type | Battery | Battery | Battery | Battery | Battery | ||
| Operate Type | Seated | Seated | Seated | Seated | Seated | |||
| Rated Capacity | Q(kg) | 1500 | 2000 | 2500 | 3000 | 3500 | ||
| Load Center | C(mm) | 500 | 500 | 500 | 500 | 500 | ||
| Wheel | Wheel Type | Pneumatic tire | Solid tire | |||||
| Loading wheel | 5.00-8 | 18×7-8 | 18×7-8 | 18×7-8 | 18×7-8 | |||
| Driving wheel | 6.00-9 | 21×8-9 | 21×8-9 | 23×9-10 | 23×10-12 | |||
| Wheel read, drive | 910 | 950 | 960 | 970 | 1080 | |||
| Wheel read, load | 930 | 960 | 960 | 960 | 990 | |||
| Number of wheels. -front/rear (X=Drive wheel) | 2X / 2 | 2X / 2 | 2X / 2 | 2X / 2 | 2X / 2 | |||
| Dimension | Mast tilting | α/β(º) | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | |
| Lift Height | h1(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Height--Free Lift | h2(mm) | 135 | 140 | 145 | 145 | 150 | ||
| Height---Mast Lowered | h3(mm) | 1995 | 1995 | 1995 | 2110 | 2100 | ||
| Hegith-Mast Extended | h4(mm) | 4030 | 4030 | 4030 | 4256 | 4256 | ||
| Height-Overhead guard--mm | h6(mm) | 2100 | 2100 | 2100 | 2130 | 2130 | ||
| Mast Clearance | h8(mm) | 85 | 85 | 85 | 90 | 90 | ||
| Overall Length | 11(mm) | 3205 | 3410 | 3410 | 3620 | 3770 | ||
| Length-to Fork Face | 12(mm) | 2135 | 2340 | 2340 | 2550 | 2700 | ||
| Wheelbase | y(mm) | 1380 | 1505 | 1700 | 1700 | 1800 | ||
| Front Overhang | x(mm) | 380 | 420 | 425 | 433 | 484 | ||
| Overall Width | b1/b2(mm) | 1110 | 1160 | 1160 | 1200 | 1330 | ||
| Fork Dimensions | mm | 1070*100*35 | 1070*100*40 | 1070*100*45 | 1070*125*45 | 1070*125*50 | ||
| Fork outside width | b5(mm) | 222-1000 | 222-1000 | 222-1000 | 250-1050 | 250-1050 | ||
| Trurning radius | Wa(mm) | 2000 | 2100 | 2100 | 2300 | 2450 | ||
| Function | Driving speed, load/unload | km/h | 10/12 | 10/12 | 10/12 | 10/12 | 10/12 | |
| Max. gradeability,load/unload | % | 14/15 | 14/15 | 14/15 | 14/15 | 14/15 | ||
| Driving motor (S2-60min) | kw | AC6.8 | AC6.8 | AC6.8 | AC9.1 | AC14 | ||
| Lift motor type | DC | DC | DC | DC | DC | |||
| Lift motor (S3- 15%) | kw | 8.2 | 8.6 | 8.6 | 10 | 10 | ||
| Battery voltage/capacity | V/AH | 48/400 | 48/490 | 48/560 | 48/630 | 80/400 | ||
| Weight | Battery | kg | 645 | 750 | 885 | 980 | 1070 | |
| Service weight | kg | 2990 | 3380 | 3600 | 4370 | 4870 | ||
| Steering | Steering type | Full hydraulic | ||||||
| Parking brake model | Hydraulic power | |||||||
| Parking operation type | Pedal | |||||||
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Products Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
