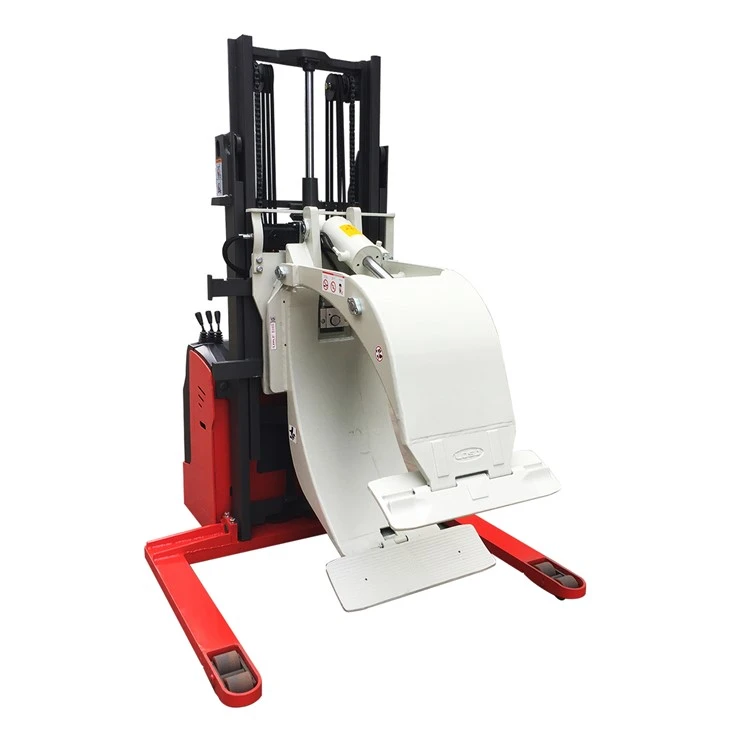

2tons Paper Roll Electric Stacker For Diamter Craft Paper
1.Station-driven steering makes the control more convenient and flexible.
2.The latest CURTIS AC control system is accurate, stable and eficient.
3.Station driving pedal adopts shock absorption design, which greatly improves station riding comfort and reduces long driving fatigue.
4.The integrated control handle is simple and beautiful, and all operation functions can be easily completed by one hand.
5.The frame is a high strength steel frame structure with 5 fulcrums and low center of gravity. It has a large redundant bearing capacity.Long service life;
6.he whole system adopts imported waterproof connectors, all wires and cables have reliable protection, greatly improving the electrical system.Relabilt;
7.It has three braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving.
8.The stand-and-ride guardrail is formed in one body, which can better protect operators.
9.Station-driven standard vehicle speed automatically reduces with the increase of steering angle.
10.It has the function of reducing buffer and effectively protects the safety of goods.
Send Inquiry
Product Introduction
PRODUCT DESCREPTION

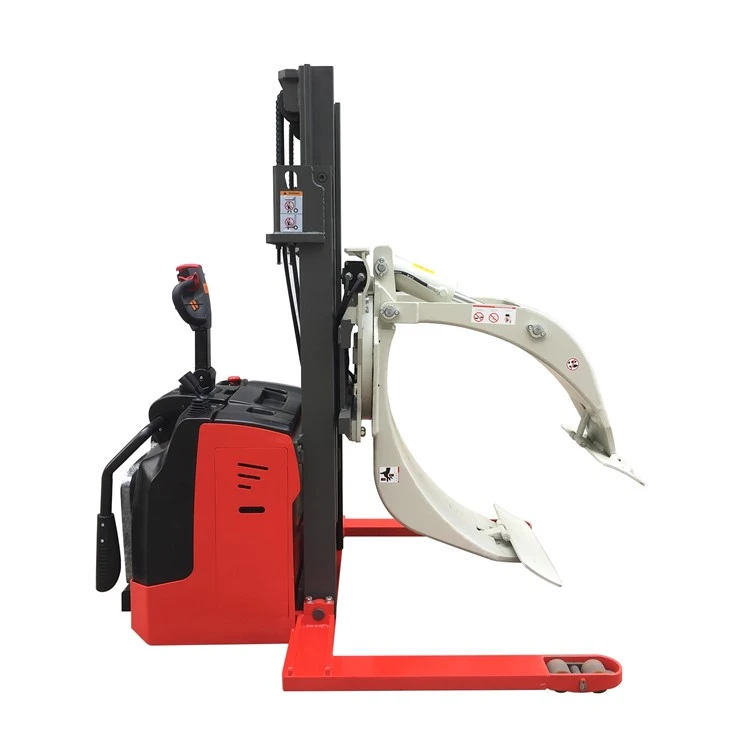

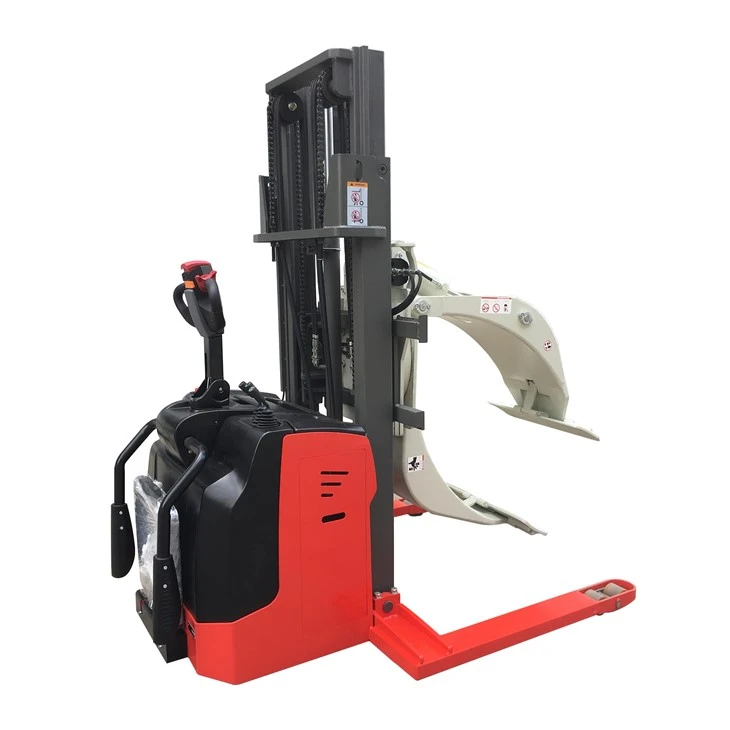

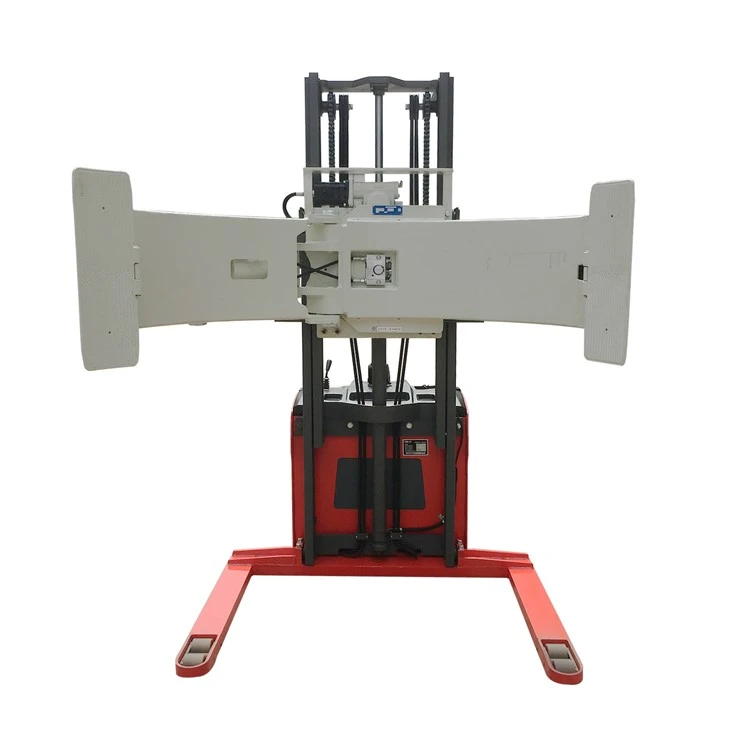

Paper roll Electric Pallet Stacker with Paper Roll Clamp Suitable for handling jumbo reels, paper rolls, craft paper rolls so on. FEATURE 24V Electric stacker TB Series rated Load Capacity: 1000-2000kg, lift height: 3000mm; Max. lifting height is 6000mm. 1.Speed Limited for high position,to aviod the possibility of products' overturning when high speed in high position; 2.Curve safe control,the forklift will reduce the speed automatic when turning, to aviod the ejection of operator and products from the vehicle by the high speed; 3.Regenerative braking function to reduce the operation cost; 4.Safe cutoff valve,to protect the operator and goods in well condition; 5.Shock Absorption of Pedal,to ensure the comfortable of working and reduce the fatigue.
PARAMETER
| Description | Electric pallet stacker | ||||||
| Model | TB10 | TB10 | TB10 | TB10 | TB15 | TB15 | TB20 |
| -16 | -25 | -30 | -35 | -25 | -30 | -16 | |
| Load capacity Kg | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | 2000 |
| Load center mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Max. lifting height mm | 1600 | 2500 | 3000 | 3500 | 2500 | 3000 | 1600 |
| Wheel type | Polyurethane solid tire | ||||||
| Pedal length mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Fork size(LxW)mm | 1150*190 | ||||||
| Width of forks(aptotic) mm | 680 | 680 | 680 | 680 | 680 | 680 | 680 |
| Overall length mm | 2023 | 2023 | 2023 | 2023 | 2023 | 2023 | 2023 |
| Overall width mm | 850 | 850 | 850 | 850 | 850 | 850 | 850 |
| Overall height(mast closed)mm | 2080 | 1795 | 2045 | 2295 | 1795 | 2040 | 2080 |
| Overall height fork raised mm | 2080 | 2970 | 3410 | 3910 | 2970 | 3220 | 2080 |
| Outside turning radius mm | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 |
| Front wheel to fork tip mm | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
| Min. intersecting aisle | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Max. walking speeds Km/h | 4.0/5.8 | 4.0/5.8 | |||||
| Grade abitity % | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Total weight( with battery) Kg | ~880 | ~935 | ~950 | ~975 | ~940 | ~950 | ~905 |
| Driving wheel mm | Φ215*75 | ||||||
| Front wheel mm | Φ80*70 | ||||||
| Balance wheel mm | Φ150*50 | ||||||
| Battery V/Ah | 24/210 | ||||||
| Charger V/A | 24/30 | ||||||
| Driving motor Kw | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| R series Paper roll clamps | |||||||||
| Capacity@Max. diameter | Catalog order no. | Opening range | Mounting Class | Long Arm Length | Short Arm Length | Arm Thickness | Weight | Available Forklift | Delivery time |
| kg@mm | mm | mm | mm | mm | kg | days | |||
| 10000@1600 | ZJ10R-A1 | 560-1600 | II | 995 | 675 | 45 | 420 | 1-2.5T | 7 |
| 1300@1150 | ZJ13R-A1 | 330-1150 | II | 745 | 535 | 45 | 325 | 1-25T | 7 |
| 2000@1350 | ZJ20R-A13 | 690-1350 | II | 920 | 650 | 50 | 740 | 2-2.5T | 7 |
