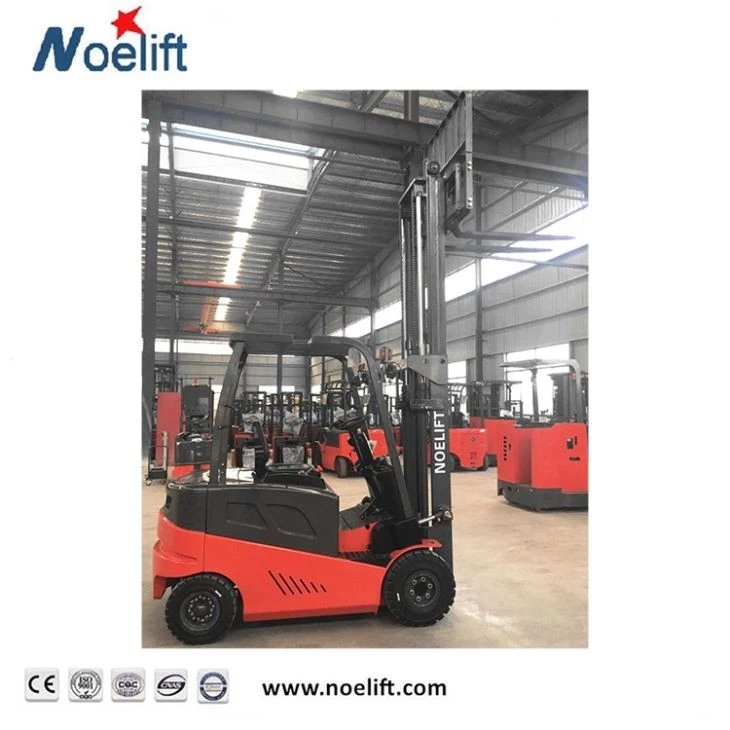

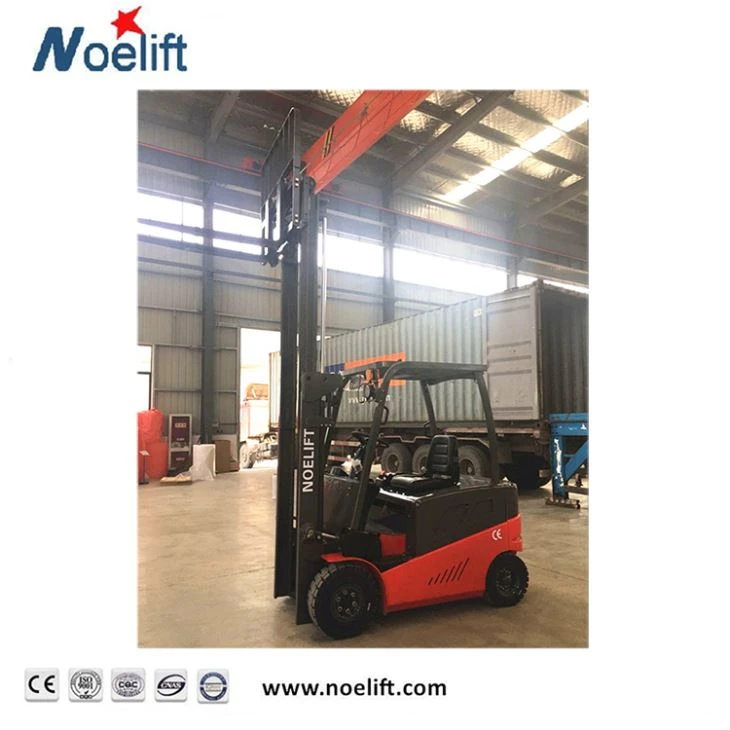

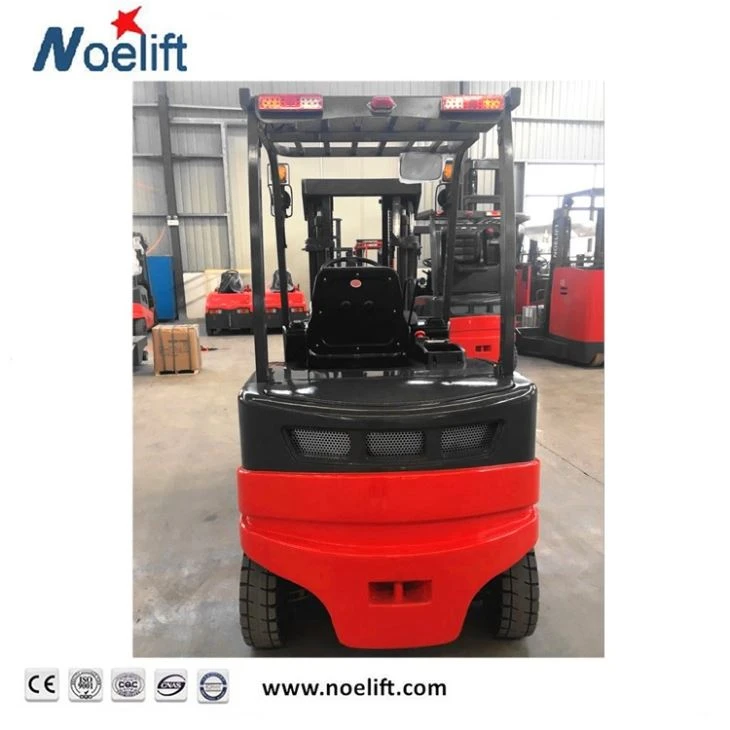

Electric Forklift Solid Tyre Easy Replacing Battery
Rated load capacity: 1500-3000kg,
lift height: 3000-6000mm,
Using in container
Send Inquiry
Product Introduction
Advantages:
1.With low engergy cost, it can meet the common working time.
2.Three sets braking system: hand brake, foot brake, AC driving regenerative brake 3. It is comfortable with big operate space
| Model No. | TK15 | TK20 | TK25 | TK30 | TK35 | |||
| Standard | Power Type | Battery | Battery | Battery | Battery | Battery | ||
| Operate Type | Seated | Seated | Seated | Seated | Seated | |||
| Rated Capacity | Q(kg) | 1500 | 2000 | 2500 | 3000 | 3500 | ||
| Load Center | C(mm) | 500 | 500 | 500 | 500 | 500 | ||
| Wheel | Wheel Type | Pneumatic tire | Solid tire | |||||
| Loading wheel | 5.00-8 | 18×7-8 | 18×7-8 | 18×7-8 | 18×7-8 | |||
| Driving wheel | 6.00-9 | 21×8-9 | 21×8-9 | 23×9-10 | 23×10-12 | |||
| Wheel read, drive | 910 | 950 | 960 | 970 | 1080 | |||
| Wheel read, load | 930 | 960 | 960 | 960 | 990 | |||
| Number of wheels. -front/rear (X=Drive wheel) | 2X / 2 | 2X / 2 | 2X / 2 | 2X / 2 | 2X / 2 | |||
| Dimension | Mast tilting | α/β(º) | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | |
| Lift Height | h1(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Height--Free Lift | h2(mm) | 135 | 140 | 145 | 145 | 150 | ||
| Height---Mast Lowered | h3(mm) | 1995 | 1995 | 1995 | 2110 | 2100 | ||
| Hegith-Mast Extended | h4(mm) | 4030 | 4030 | 4030 | 4256 | 4256 | ||
| Height-Overhead guard--mm | h6(mm) | 2100 | 2100 | 2100 | 2130 | 2130 | ||
| Mast Clearance | h8(mm) | 85 | 85 | 85 | 90 | 90 | ||
| Overall Length | 11(mm) | 3205 | 3410 | 3410 | 3620 | 3770 | ||
| Length-to Fork Face | 12(mm) | 2135 | 2340 | 2340 | 2550 | 2700 | ||
| Wheelbase | y(mm) | 1380 | 1505 | 1700 | 1700 | 1800 | ||
| Front Overhang | x(mm) | 380 | 420 | 425 | 433 | 484 | ||
| Overall Width | b1/b2(mm) | 1110 | 1160 | 1160 | 1200 | 1330 | ||
| Fork Dimensions | mm | 1070*100*35 | 1070*100*40 | 1070*100*45 | 1070*125*45 | 1070*125*50 | ||
| Fork outside width | b5(mm) | 222-1000 | 222-1000 | 222-1000 | 250-1050 | 250-1050 | ||
| Trurning radius | Wa(mm) | 2000 | 2100 | 2100 | 2300 | 2450 | ||
| Function | Driving speed, load/unload | km/h | 10/12 | 10/12 | 10/12 | 10/12 | 10/12 | |
| Max. gradeability,load/unload | % | 14/15 | 14/15 | 14/15 | 14/15 | 14/15 | ||
| Driving motor (S2-60min) | kw | AC6.8 | AC6.8 | AC6.8 | AC9.1 | AC14 | ||
| Lift motor type | DC | DC | DC | DC | DC | |||
| Lift motor (S3- 15%) | kw | 8.2 | 8.6 | 8.6 | 10 | 10 | ||
| Battery voltage/capacity | V/AH | 48/400 | 48/490 | 48/560 | 48/630 | 80/400 | ||
| Weight | Battery | kg | 645 | 750 | 885 | 980 | 1070 | |
| Service weight | kg | 2990 | 3380 | 3600 | 4370 | 4870 | ||
| Steering | Steering type | Full hydraulic | ||||||
| Parking brake model | Hydraulic power | |||||||
| Parking operation type | Pedal | |||||||
