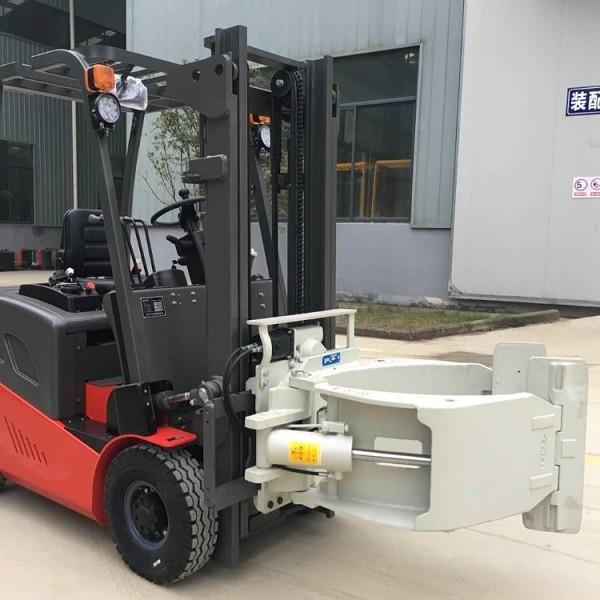

ELECTRIC FORKLIFT WITH PAPER ROLL CLAMP
TK series; Max load capacity: optional from 1.5t-5T,
max. lift height: 6000mm,
min. lift height: 3m.
stable performance, comfortable operation
Electric Forklift Specifications
Max load capacity: optional from 1.5t-5T, max. lift height: 6000mm, min. lift height: 3m.
stable performance, comfortable operation, the advantages are as follows:
1. Initiative shocking proof system, to make sure the forklift more safe and stability;
2. Strenghen mast with high safety factor;
3. Durability: all electric connector with water-proof design;
4. The advanced safe system for mast pipeline, to aviod the out of control for mast when hydraulic system have fault, to ensure the good safe;
5. To use MOSFET controller, it's can provide the smooth and cyclic regenerative braking, to extend the working life of motor and battery;
6. The double pump in one technology, to lower the motor' steering nosie and save the energy;
7. The advanced rear structure design, to increase the working life of driving wheel;
8. The heat-removal system for electric controller, it's can protect the controller and extend the workling life;
9. The main parts are famous brand;
10. Ergonomics' configuration and design to make the operator more comfortable.
Application
Jumbo roll paper Tissue jombo roll paper Thermal-paper roller
Advantage
1. Machine Operation desk, Clear and ergonomical design ,Easy operation
2. High capacity industrial Lead-acid Battery
3. A set of LED lights in high quality and efficiency.

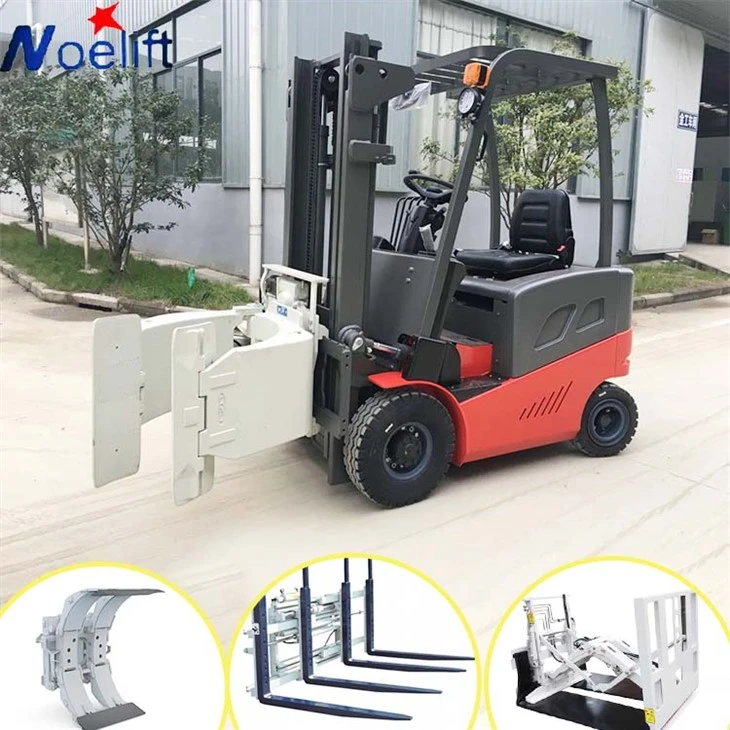

4. Optional various attachments, such as paper roll clamp, bale clamp, wood clamp so on.
Specifiction parameters
|
TK series 4 wheel electric forklift
|
|||
|
load capacity
|
1500kg
|
2000kg
|
2500kg
|
|
Power type
|
Battery power
|
||
|
Load center
|
500mm
|
||
|
Tire type
|
Pneumatic tire(optional solid tire)
|
||
|
Tire size(Front)
|
5.00-8
|
18x7-8
|
18x7-8
|
|
Tire size(Rear)
|
6.00-9
|
21x8-9
|
21x8-9
|
|
Standard Lift height
|
3000mm
|
||
|
Mast lowered height
|
1990mm
|
1995mm
|
1995mm
|
|
Fork size(LxWxH)
|
1070x100x35
|
1070x100x40
|
1070x100x45
|
|
Mast mini. ground clearance
|
80mm
|
||
|
Turning radius(with 1000x1200mm pallet)
|
3580mm
|
3720mm
|
3730mm
|
|
Controller
|
US CURTIS
|
||
|
Driving motor
|
AC/6.8kw
|
AC/6.8kw
|
AC/6.8kw
|
|
Lifting motor
|
8.2kw
|
7.5kw
|
10kw
|
|
Battery
|
48/400 V/Ah
|
48/490 V/Ah
|
48/560 V/Ah
|
|
Total weight(with total weight)
|
2850kg
|
3850kg
|
4100kg
|
| Paper Roll Clamp OPTIONS | ||||
| Capacity@Max. diameter(kg@mm) | Opening range(mm) | Long Arm Length(mm) | Model | |
| 1 | 1300@1150 | 330-1150 | 745 | ZJ13R-A1 |
| 2 | 2000@1350 | 690-1350 | 920 | ZJ20R-A13 |
