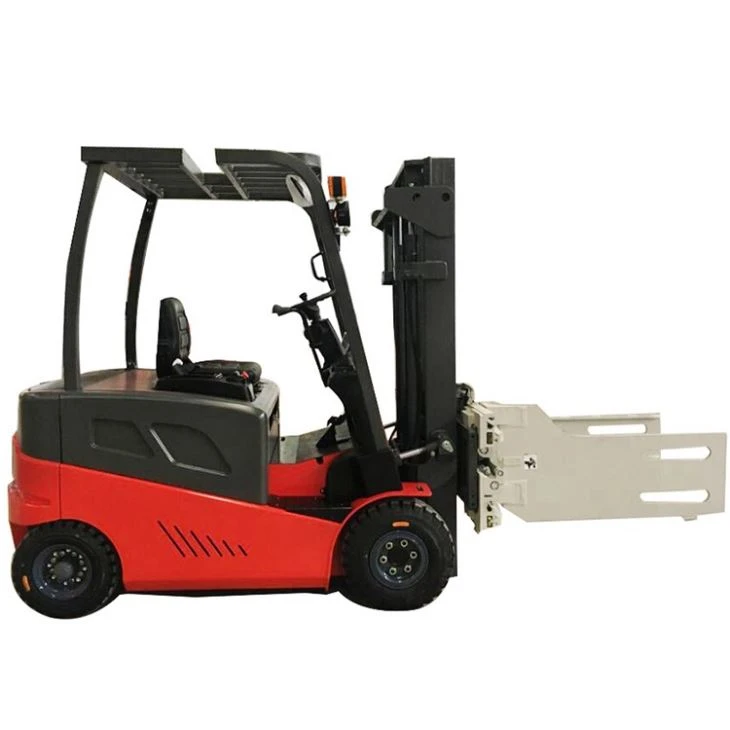

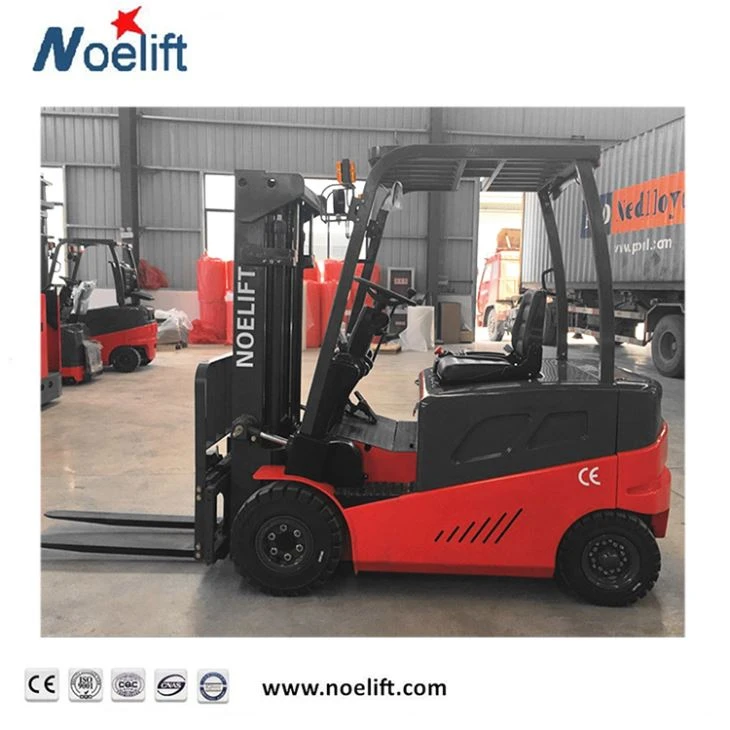

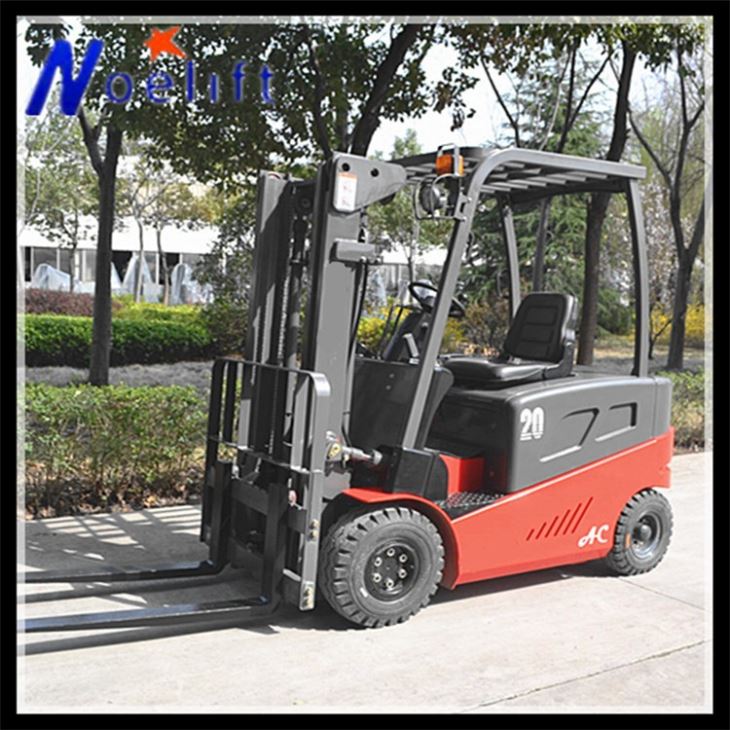

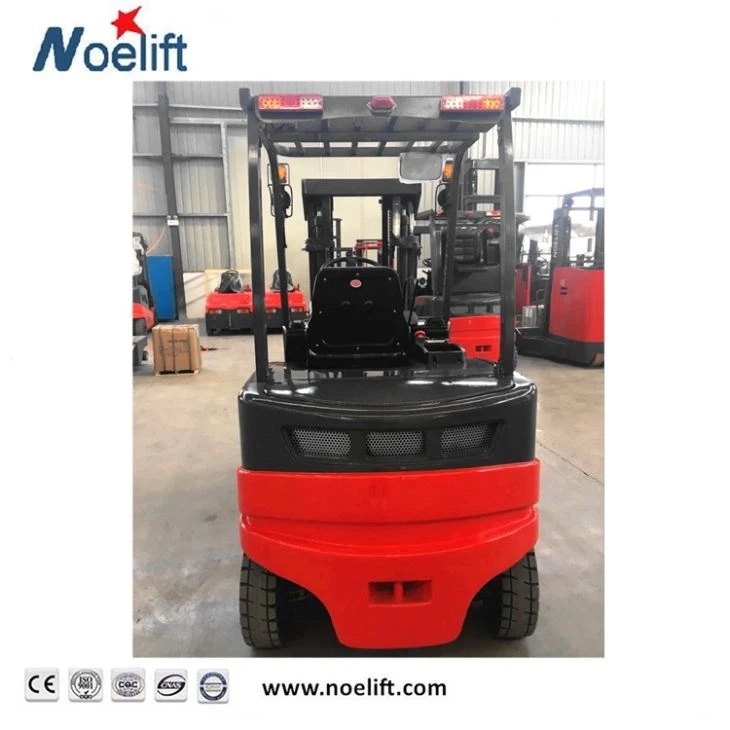

Electric Forklift With 2 Stage 3 Stage Mast

1.Hydraulic mechanical safety protection: fast cut off valve, lowering speed valve, locked tilting valve, overloading valve

2.Electric system safety protection: limited tilting speed function at high position, undervoltage protection function, relay fuse assembly,natural cooling and fan cooling

Model No.			TK15	TK20		TK25	TK30	TK35
Standard	Power Type		Battery	Battery		Battery	Battery	Battery
	Operate Type		Seated	Seated		Seated	Seated	Seated
	Rated Capacity	Q(kg)	1500	2000		2500	3000	3500
	Load Center	C(mm)	500	500		500	500	500
Wheel	Wheel Type		Pneumatic tire					Solid tire
	Loading wheel		5.00-8		18×7-8	18×7-8	18×7-8	18×7-8
	Driving wheel		6.00-9		21×8-9	21×8-9	23×9-10	23×10-12
	Wheel read, drive		910		950	960	970	1080
	Wheel read, load		930		960	960	960	990
	Number of wheels. -front/rear (X=Drive wheel)		2X / 2		2X / 2	2X / 2	2X / 2	2X / 2
Dimension	Mast tilting	α/β(º)	6/10		6/10	6/10	6/10	6/10
	Lift Height	h1(mm)	3000		3000	3000	3000	3000
	Height--Free Lift	h2(mm)	135		140	145	145	150
	Height---Mast Lowered	h3(mm)	1995		1995	1995	2110	2100
	Hegith-Mast Extended	h4(mm)	4030		4030	4030	4256	4256
	Height-Overhead guard--mm	h6(mm)	2100		2100	2100	2130	2130
	Mast Clearance	h8(mm)	85		85	85	90	90
	Overall Length	11(mm)	3205		3410	3410	3620	3770
	Length-to Fork Face	12(mm)	2135		2340	2340	2550	2700
	Wheelbase	y(mm)	1380		1505	1700	1700	1800
	Front Overhang	x(mm)	380		420	425	433	484
	Overall Width	b1/b2(mm)	1110		1160	1160	1200	1330
	Fork Dimensions	mm	1070*100*35		1070*100*40	1070*100*45	1070*125*45	1070*125*50
	Fork outside width	b5(mm)	222-1000		222-1000	222-1000	250-1050	250-1050
	Trurning radius	Wa(mm)	2000		2100	2100	2300	2450
Function	Driving speed, load/unload	km/h	10/12		10/12	10/12	10/12	10/12
	Max. gradeability,load/unload	%	14/15		14/15	14/15	14/15	14/15
	Driving motor (S2-60min)	kw	AC6.8		AC6.8	AC6.8	AC9.1	AC14
	Lift motor type		DC		DC	DC	DC	DC
	Lift motor (S3- 15%)	kw	8.2		8.6	8.6	10	10
	Battery voltage/capacity	V/AH	48/400		48/490	48/560	48/630	80/400
Weight	Battery	kg	645		750	885	980	1070
	Service weight	kg	2990		3380	3600	4370	4870
Steering	Steering type		Full hydraulic
	Parking brake model		Hydraulic power
	Parking operation type		Pedal

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

1. One-stop solutions offer

2. OEM services offer

3. 24 hours non stop service offer

4. Track the products for you once every two days, until you get the products.

5. During warrarnty, spare parts delivery within one week for free.

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
