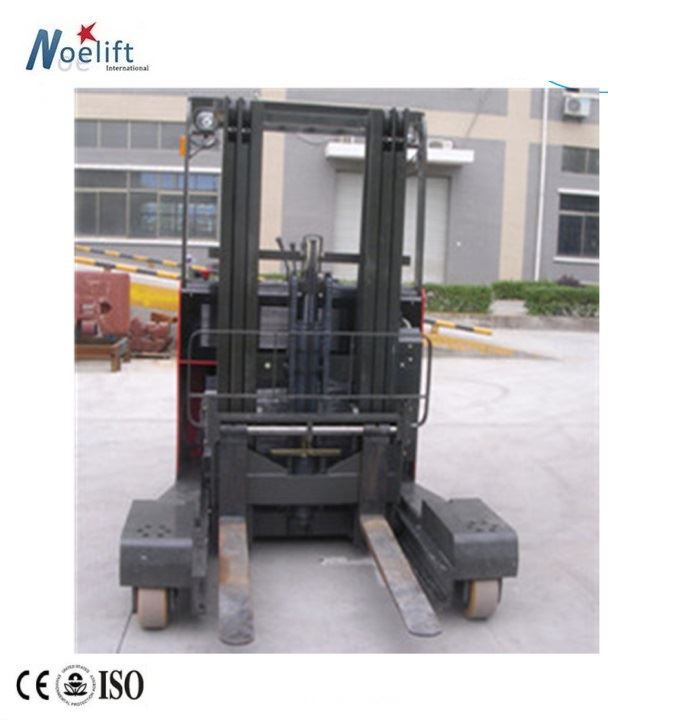

Four Way Driving Reach Truck
Optional lift height: 3000-7200mm.
four-way driving forklift Specifications
The TQB25 forklift is a four-way driving forklift suitable for stacking operations in narrow lanes and handling long materials, with a lifting height of 3.0m～8.0m. Compared with ordinary forward-moving forklifts, it has the function of sideways driving, so it is mainly used to fork long-shaped goods. Such as metal profiles, steel bars, plates, etc.
ELECTRIC REACH TRUCK FEATURE
1. Optional capacity: 1.5tons, 2tons, 2.5tons. Optional lift height: 3000-7200mm.
2. Environment-Friendly: Low noise and non-pollution electricity enegy adopted ensure Noelift 4- direction electric reach truck Environment-Friendly.
3. Cost-Saving:Brushless AC driving motor, side-pull battery, ensure 30% energy saving, lower maintenance cost. American imported CURTIS controller, quick reaction, strong ability of accerleration and deceleration control, ensure equipment longer service life.
4. Labor-Saving:Strong industrial 48V battery, 5.5V strong driving motor ensure Lalor-Saving.
5. Strict Quality Inspection System:
ISO9001-2008, CE approved.
P.S. When lift height ≧4.5m, the equipment with colored monitor.
Specifiction parameters
|
Manufacturer/brand |
NOELIFT |
||
|
Description |
4-direction electric reach truck |
||
|
Model |
TFB15 |
TFB20 |
TFB25 |
|
Loading capacity Kg |
1500 |
2000 |
2500 |
|
Loading center mm |
500 |
500 |
500 |
|
Lifting height mm |
3000 |
3000 |
3000 |
|
Fork size mm |
1070×100×35 |
1070×100×45 |
1070×100×45 |
|
Overall length(with forks) mm |
2267 |
2488 |
2488 |
|
Overall width mm |
1640 |
1800 |
1800 |
|
Overhead guard height mm |
2320 |
2320 |
2320 |
|
Mast forwarding length mm |
545 |
710 |
710 |
|
Total weight(with battery) Kg |
2808 |
3480 |
3814 |
|
Battery Ah |
48V/300Ah |
48V/400Ah |
48V/400Ah |
|
Driving motor Kw |
5.5(AC) |
5.5(AC) |
5.5(AC) |
|
Lifting motor Kw |
6.3 |
7.5 |
7.5 |
HIGH MAST PARAMETERS
|
Mast |
Full free |
Lifting height |
Lowered height of mast |
Free lift height |
Loading capacity @ MAX. height |
|
|
TFB15 |
TFB20 |
|||||
|
Duplex |
NO |
3000mm |
2120mm |
0mm |
1500kg |
2000kg |
|
NO |
3500mm |
2370mm |
0mm |
1200kg |
1500kg |
|
|
NO |
4000mm |
2620mm |
0mm |
1000kg |
1200kg |
|
|
Triplex |
YES |
5000mm |
2340mm |
1670mm |
900kg |
1000kg |
|
YES |
5500mm |
2450mm |
1850mm |
800kg |
900kg |
|
|
YES |
6000mm |
2680mm |
2000mm |
700kg |
800kg |
|
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Products Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
