TF15-30 electric reach truck 1500mm 3000kg
China electric reach truck Rated capacity 1500kg 3000mm
The TF series is a new forward-moving forklift with a carrying capacity of 1.2 to 3.0 tons. The mast can be moved forward or retracted as a whole, with a smaller body and turning radius and higher efficiency.
Feature at a glance
PRODUCT ADVANTAGE
1. The maintenance-free AC drive system enables the vehicle to respond more quickly and accurately.
2. Equipped with pure electric steering, which makes steering more labor-saving, reduces fatigue strength and improves efficiency.
3. The ingenious mast design increases the free lifting height (TF15).
4. The mechanical disc brake is released when the brake pedal is stepped on to ensure safe operation.
5. Smaller body size, smaller turning radius and right-angle stacking channel.
6. With turning speed limit function, turning automatically slows down, effectively protecting the safety of cargo and operators.
7. Ergonomic design, easy-to-operate valve stem and multi-function intelligent instrument, some models have wheel display function.

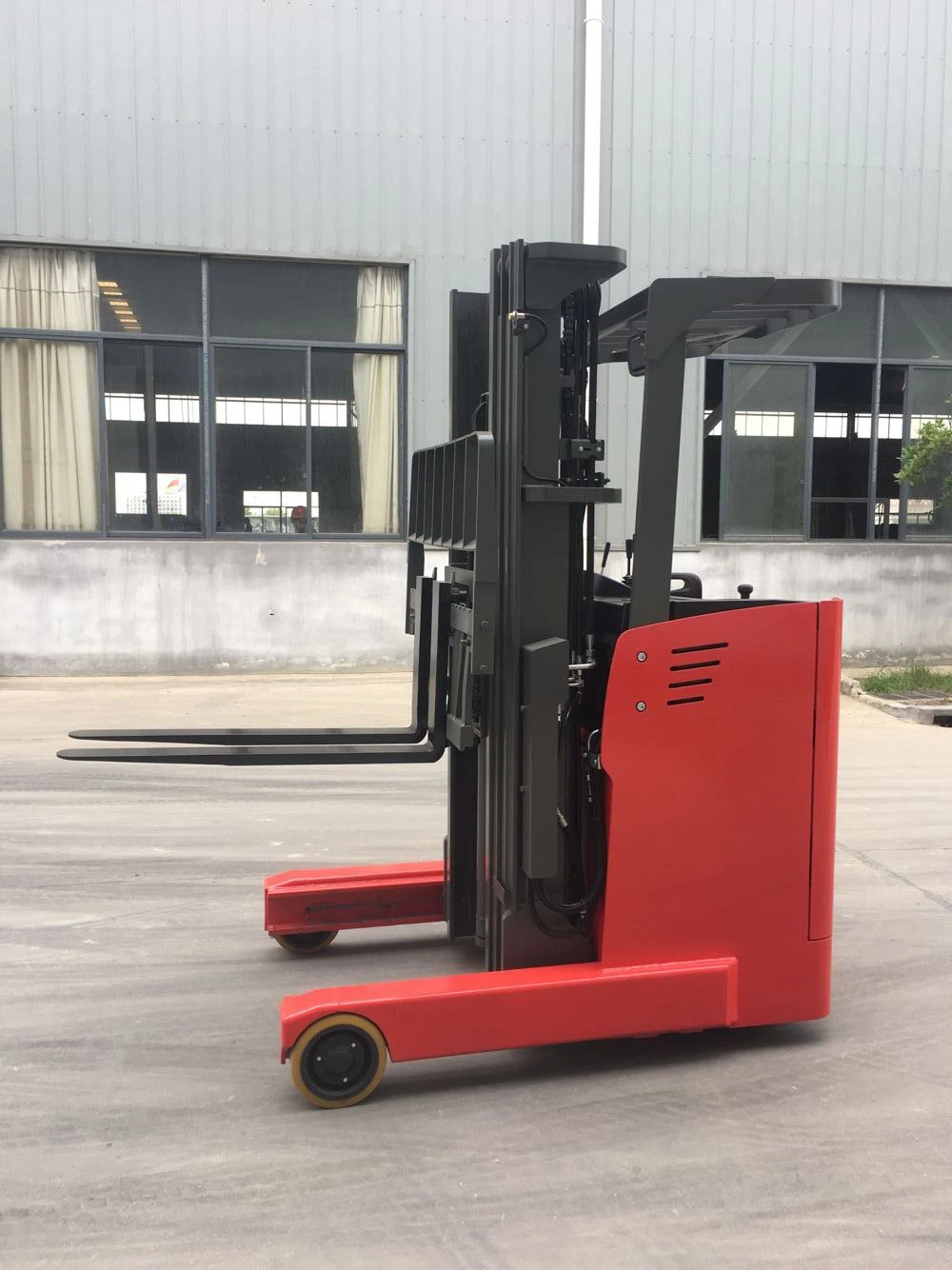

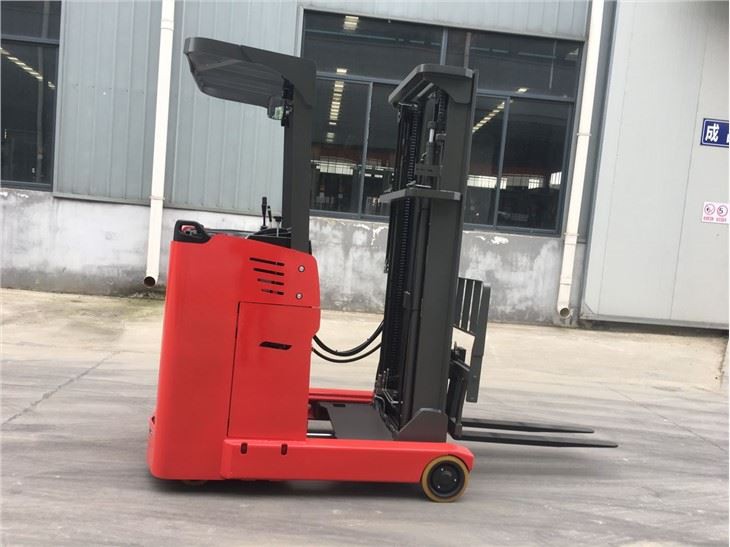

product picture
| Brand | NOELIFT | NOELIFT | |
| Model | TF20(Duplex mast) | TF20(Triplex full free mast) | |
| Power type | Battery | Battery | |
| Operation type | Stand on | Stand on | |
| Rated capacity | Q(kg) | 2000 | 2000 |
| Load center | C(mm) | 500 | 500 |
| Front overhang | x(mm) | 180 | 180 |
| Wheelbase | y(mm) | 1545 | 1545 |
| Service weight(incl. battery) | kg | 2750 | 2950 |
| Mast closed height | h1(mm) | 2082 | 2142 |
| Lift height | h3(mm) | 3000 | 4500 |
| Overall length | l1(mm) | 2299 | 2336 |
| Overall width | b1/b2(mm) | 1090/1170 | 1090/1170 |
| Fork size | l/e/s(mm) | 1070/122/40 | 1070/122/40 |
| Turning radius | Wa(mm) | 1784 | 1784 |
| Brake type | Mechanical | Mechanical | |
| Battery voltage/capacity | V/Ah | 48/300 | 48/300 |
| Battery weight | kg | 500 | 500 |
| Steering system | EPS | EPS |
