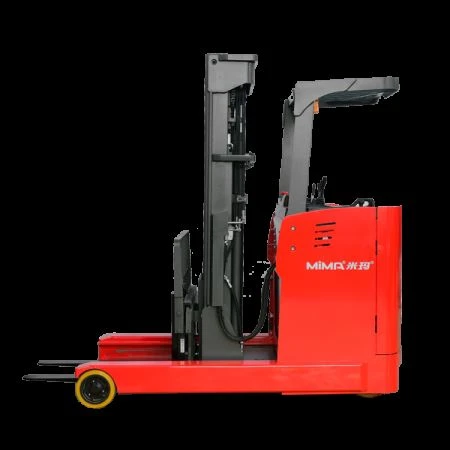

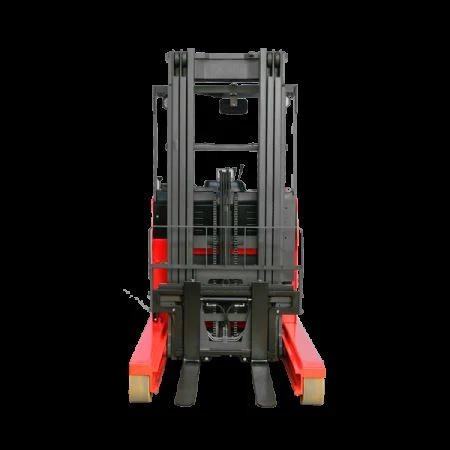

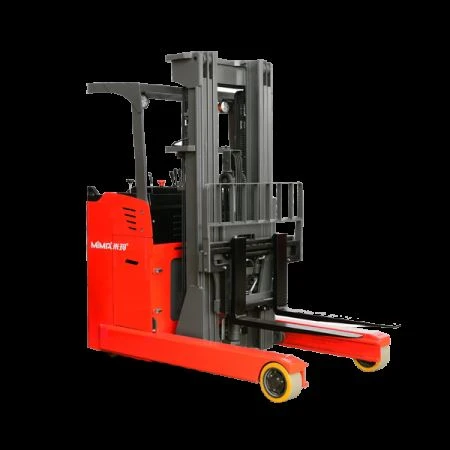

Noelift 2.0T Stand On Electric Reach Truck
The TF series is a stand on type reach truck with load 2.0T - 3.0T. The gantry can be moved forward or retracted as a whole, with a small body and turning radius and higher efficiency.Applicable to: Medium storage density, high turnover rate conditions; Stacking in narrower channels.
Manufacturer | NOELIFT | |||
Model | TF20 | TF25 | TF30 | |
Power type | Battery | Battery | Battery | |
Operate type | Stand on | Stand on | Stand on | |
Service weight（incl.battery） | kg | 2750 | 3300 | 3400 |
Load capacity | kg | 2000 | 2500 | 3000 |
Load center | mm | 500 | 500 | 500 |
Lift height | mm | 3000 | 3000 | 3000 |
Fork size | mm | 1070/100/40 | 1070/100/45 | 1070/125/45 |
Front overhang | mm | 180 | 185 | 185 |
Turning radius | Mm | 1784 | 1995 | 2192 |
Lifting speed,Laden/unladen | mm/s | 220/380 | 240/320 | 220/320 |
Lowering speed,Laden/unladen | mm/s | 310/260 | 340/290 | 340/290 |
