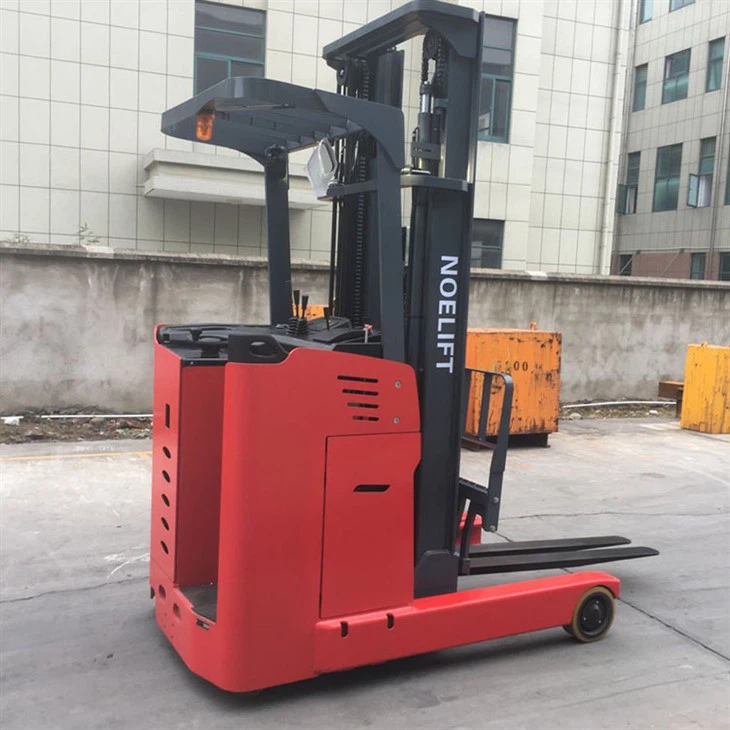

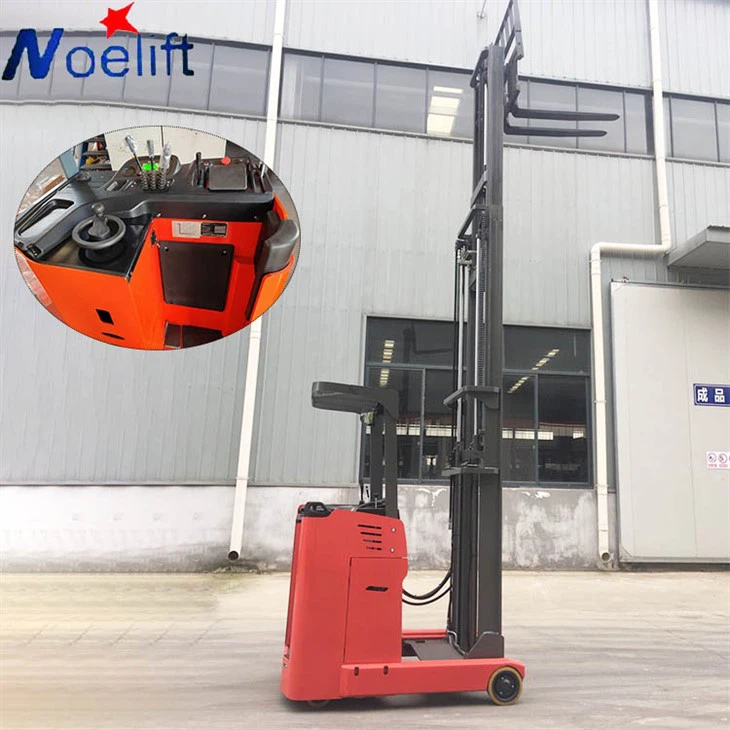

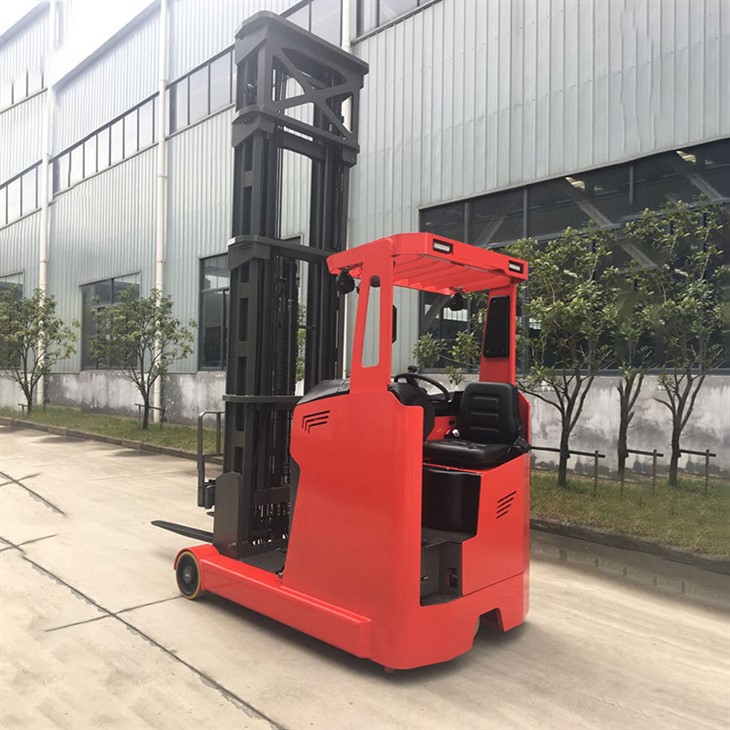

Reach Function Forklift Truck TF
Relevant to:
narrow aisle stacking, a high working turnover rate, and a medium storage density
Reach Truck Specifications
Retraction of the mast causes the reach truck, an electric forklift, to move towards its centre of gravity and enable it to turn and lift objects.
Because of this characteristic, these forklifts perform better while loading things like storage racks and are lighter than counterbalanced forklifts. They can also manoeuvre in aisles that are ±2.68 metres narrower without obstructions.
However, in order to store or retrieve pallets from a racking unit, the machine is positioned in front of the unit load and the mast extends outward, simplifying operation even if the mast and prongs resemble those of a counterbalanced forklift. Over ten metres of load can be lifted by certain forklifts. Installation of support devices can facilitate operations at the highest level.
Therefore, reach forklifts are currently the most commonly used machines in warehouses.
terms of delivery ： EXW, FOB, CFR, CIF, DDU.
rider walkie type reach stacker manual electric powered
Selling Units:Single item
Single package size: 247.5X125.8X232 cm
Single gross weight:2960.0 kg
Specifiction parameters
| 1 | Description | Electric reach truck | ||
| 2 | Model | TF15-30 | TF20-30 | TF25-30 |
| 3 | Load capacity Kg | 1500 | 2000 | 2500 |
| 4 | Load center mm | 500 | 500 | 500 |
| 5 | Max. lifting height mm | 3000 | 3000 | 3000 |
| 6 | Tilting angle (forward- backward) deg | 3/5 | 3/5 | 3/5 |
| 7 | Wheel type | Polyurethane solid tire | ||
| 8 | Mast forwarding length mm | 560 | 675 | 675 |
| 9 | Fork size LxWxTmm | 1070x100x35 | 1070x122x40 | 1070x122x40 |
| 10 | Fork spread mm | 220-740 | 220-900 | 220-900 |
| 11 | Overall length(with forks)mm | 2240 | 2450 | 2450 |
| 12 | Overall width mm | 1090 | 1250 | 1250 |
| 13 | Overall height mast closed mm | 2100 | 2100 | 2100 |
| 14 | Overall height fork raised(with backrest)mm | 3900 | 3900 | 3900 |
| 15 | Overhead guard height mm | 2340 | 2340 | 2340 |
| 16 | Outside turning radius mm | 1615 | 1965 | 1965 |
| 17 | Min. intersecting aislemm | 2608 | 2879 | 2879 |
| 18 | Max. walking speeds km/h | 7.5/8.5 | 7.0/8.0 | 7.0/8.0 |
| 19 | Lifting speeds (Loaded/ Unloaded) mm/s | 117/243 | 110/243 | 110/243 |
| 20 | Grade abitity % | ≤10 | ≤10 | ≤10 |
| 21 | Total weight( with battery) Kg | 2300 | 2600 | 2600 |
| 22 | Driving wheel mm | Φ343*108 | Φ343*108 | Φ343*108 |
| 23 | Front wheel mm | Φ267*114 | Φ267*114 | Φ267*114 |
| 24 | Balance wheel mm | Φ180*76 | Φ180*76 | Φ180*76 |
| 25 | Min. under-clearance mm | 80 | 80 | 80 |
| 26 | Service brake | mechanical + electric | ||
| 27 | Parking brake | mechanical | ||
| 28 | Battery V/Ah | 48/300 | 48/400 | 48/400 |
| 29 | Charger V/A | 48/40 | 48/50 | 48/50 |
| 30 | Driving motor Kw | 5.5 AC | 5.5 AC | 5.5 AC |
| 31 | Lifting motor Kw | 6.3 | 7.5 | 7.5 |
| 32 | Control system | MOSFET | ||
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Products Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
