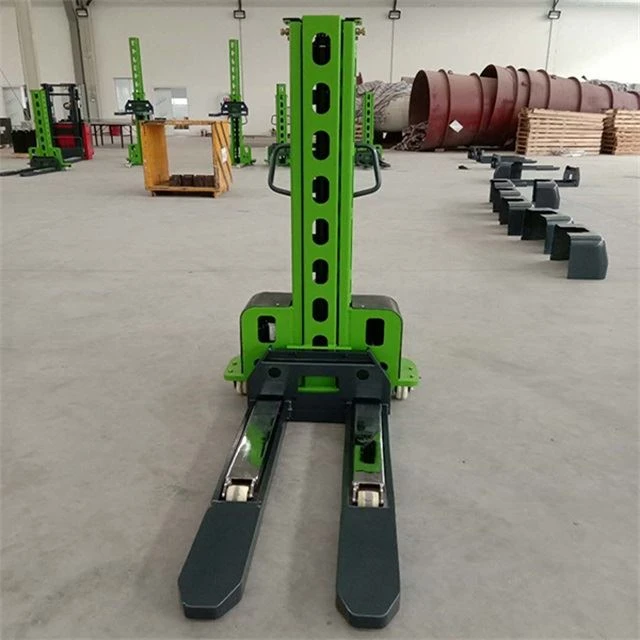

Warehouse Electric Pallet Stacker Car Loading And Unloading Stackers Lifter
Opeartion:Walkie
Capacity:500kg
Lifing Height:800-1300mm
Details
Function
Parameter
| Manufacturer | NOELIFT | |||
| Model | CDD05Z | |||
| Operation | Manual Driving, Electrical Lifting | |||
| capacity | kg | 500 | 500 | 500 |
| loading center | mm | 400 | 400 | 400 |
| wheelbase | mm | 860 | 860 | 860 |
| front wheel distance | mm | 380 | 380 | 380 |
| rear track | mm | 670 | 670 | 670 |
| min.fork height | mm | 90 | 90 | 90 |
| max.fork height | mm | 800 | 1000 | 1300 |
| steeling wheel | mm | Φ100x45 | Φ100x45 | Φ100x45 |
| loading wheel | mm | Φ70x60 | Φ70x60 | Φ70x60 |
| overall lenghth | mm | 1600 | 1600 | 1600 |
| overall width | mm | 780 | 780 | 780 |
| fork size | mm | 1150*540 | 1150*540 | 1150*540 |
| forkwidth | mm | 535 | 535 | 535 |
| turning radius | mm | 1100 | 1200 | 1200 |
| lifting speed | mm/s | 80 | 80 | 80 |
| descent speed | mm/s | 90 | 90 | 90 |
| lifting motor power | kw | 12v/0.8 | 12v/0.8 | 12v/0.8 |
| battery | V/AH | 12/45 | 12/45 | 12/45 |
| type of driving | pedestrian | pedestrian | pedestrian | |
| material of wheel | Polyurethane | Polyurethane | Polyurethane | |
| net weight | kg | 193 | 200 | 219 |
Contact
1. How about our production strength?
We are a manufacturer specializing in the manufacture of storage and handling equipment.
The workshop has laser cutting machine,large tonnage punching machine, welding manipulator, CNC lathe, shot blasting
machine,powder coating assembly line, advancedproduction equipment, and relatively short delivery time.
2. How is the quality of the products we provide?
We have 5 technical engineers with more than 10 years of industry experience and 3 quality inspectors. We control the
productionquality of products in multiple links.
3. Is there a requirement for the MOQ?
If it is FCA, there is no MOQ requirement. If it is FOB/CIF or other terms, there may be certain requirements depending on the
product.
4. How long is the after-sales warranty?
1 year warranty
5. What is the production process?
Sending requirements—business docking—confirming requirements (the product itself, trade terms, etc.)—paying advance
payment—starting production—confirming the product before shipping—paying the balance payment—arranging delivery
