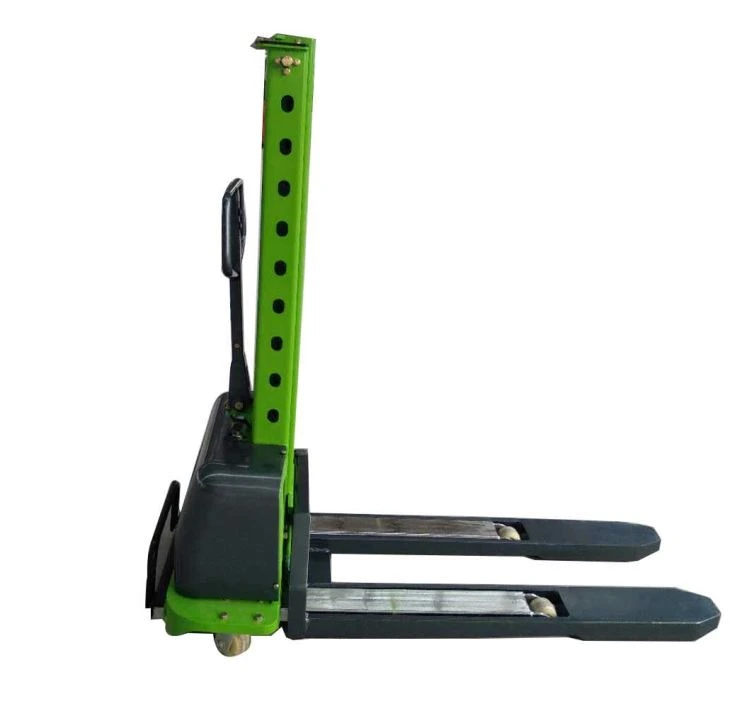

500kg Semi Electric Self Loading Pallet Stacker
500kg Semi Electric Self Loading Pallet stacker
1.Germany system technology of warehousing equipment and leading international level.
2. The product with the principle of human engineering fully-humanized design.
3. Easy-controlling by operator and flexible when carrying cargoes.
4. Using the USA or Italy electronic assembly control, the German import control handles and Italy Metalrota driving wheel, and fully guarantee the stability of the vehicle.
5. Newly designed by a domestic well-known designer, with a beautiful appearance.

Self-loading pallet stacker; Rated capacity: 500kg
Max. lifting height: 1.3M; Power: Lift electronic, drive manual; Battery: 12V/45AH
| Main Specification | |
| Power unit | Battery |
| Operator type | Manual Driving, Electrical Lifting |
| Rated load | 500kg |
| Operating weight | 245kg |
| Battery performance | 12V/45AH |
| Max. lifting height | 1300mm |
| Load center | 400mm |
| Max. fork width | 535mm |
| Lowered fork height | 85mm |
| Overall dimension(L*W*H) | 1570*786*1597mm |
| Min. turning radius | 1100mm |
| Rated power | DC0.8kw |
| Lifting speed | 55mm/s |
| Lowering speed | 70mm/s |
| Mast | Single mast |
