Self Loading Forklift Truck
PRODUCT DESCRIPTION

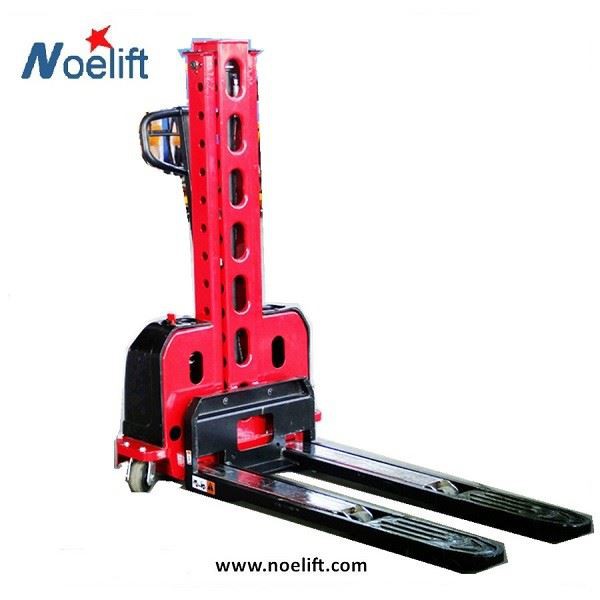

Self elevator stacker/self loading forklift innolift
Advantages:
1. Portable mini machine
2.Tight structure ensure Low overall height, enter van/cargo without problem
3. Lady can operate it freely!
The self loader is a Pallet & Freight loader that is designed for vans and other commercial vehicles.
It is the only Manual lift loader that lifts a wide range of goods to a range of heights and then lifts itself in and out of the delivery vehicle.
load capacity: 500kg, lift height, 800mm, 1m & 1.3m optional.
1. Steering Chain auxiliary device;
2. The foot brake, more stable;
3. Sealed batteries free of maintenance;
safe operation and no pollution;
4. Explosion-proof valve design
down more stable and reliable;
5. Over discharge protection, extending battery life.
Responsible
Workplace managers have a responsibility to eliminate unsafe manual handling practices..
Some of the benefits are reduced insurance premiums and improved employee wellbeing and performance.
With Noelift equipment used by major companies in Europe, the reputation is excellent.
Q1. What is your terms of packing?
A: Generally, we pack our goods in plastic films+cardboard+knit belt. It is ok to pack it based on customized requirements.


Packaging & Shipping: packed with thick plastic film+cardboard+wood pallet.
Delivery time: 20 days after 30% deposit received.

| 1 | Model | CDD05Z | ||
| 2 | Brand | NOELIFT | ||
| 3 | Operation | Manual Driving, Electrical Lifting | ||
| 4 | Capacity | 500Kg | 500Kg | 500Kg |
| 5 | Weight | 193Kg | 200Kg | 219Kg |
| 6 | Lift Height | 800mm | 1000mm | 1300mm |
| 7 | Height in Lowerd Position | 1200mm | 1400mm | 1600mm |
| 8 | Overall length | 1600mm | 1600mm | 1600mm |
| 9 | Overall width | 786mm | 786mm | 786mm |
| 10 | Fork Length | 1250mm | 1250mm | 1250mm |
| 11 | Fork Width | 540mm | 540mm | 540mm |
| 12 | Material of Wheels | Polyurethane | Polyurethane | Polyurethane |
| 13 | Steering wheel size | 100x45 | 100x45 | 100x45 |
| 14 | Loading wheel size | 70x60 | 70x60 | 70x60 |
| 15 | Motor Power Lifting | 0.7kw | 0.7kw | 0.7kw |
| 16 | Battery | 12/45V/Ah | 12/45V/Ah | 12/45V/Ah |
| 17 | Charger Battery | inclusive | inclusive | inclusive |
| 18 | Brake Type | Mechanical | Mechanical | Mechanical |
| 19 | Lifting speed | 80Mm/s | 80Mm/s | 80Mm/s |
| 20 | Descend speed | 90Mm/s | 90Mm/s | 90Mm/s |
| 21 | Turning radius | 1100Mm | 1200Mm | 1200Mm |
