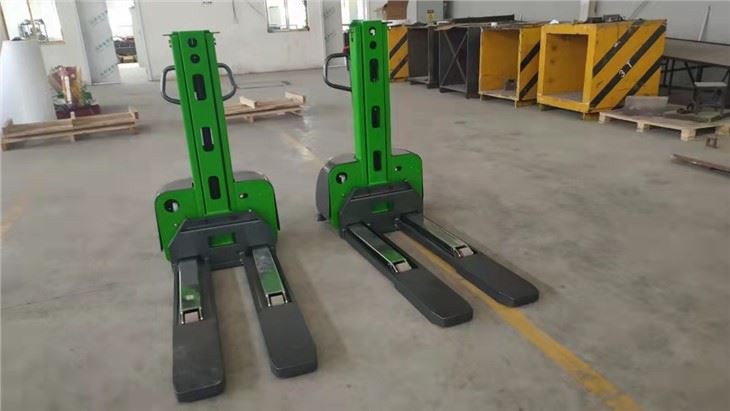

Portable Self-lifting Loader
Manufacturer:Noelift
Model:CDD
Capacity:500kg
Lifting height:800-1300mm
made in china
Model:CDD
Capacity:500kg
Lifting height:800-1300mm
made in china
Send Inquiry
Product Introduction
portable self-lifting loader
Advanage
Small and easy operation.
Electric lifting,effortless.
Stable structure and safer
Paramater
| Manufacturer | NOELIFT | |||
| Model | CDD05Z | |||
| Operation | Manual Driving, Electrical Lifting | |||
| capacity | kg | 500 | 500 | 500 |
| loading center | mm | 400 | 400 | 400 |
| wheelbase | mm | 860 | 860 | 860 |
| front wheel distance | mm | 380 | 380 | 380 |
| rear track | mm | 670 | 670 | 670 |
| min.fork height | mm | 90 | 90 | 90 |
| max.fork height | mm | 800 | 1000 | 1300 |
| steeling wheel | mm | Φ100x45 | Φ100x45 | Φ100x45 |
| loading wheel | mm | Φ70x60 | Φ70x60 | Φ70x60 |
| overall lenghth | mm | 1600 | 1600 | 1600 |
| overall width | mm | 780 | 780 | 780 |
| fork size | mm | 1150*540 | 1150*540 | 1150*540 |
| forkwidth | mm | 535 | 535 | 535 |
| turning radius | mm | 1100 | 1200 | 1200 |
| lifting speed | mm/s | 80 | 80 | 80 |
| descent speed | mm/s | 90 | 90 | 90 |
| lifting motor power | kw | 12v/0.8 | 12v/0.8 | 12v/0.8 |
| battery | V/AH | 12/45 | 12/45 | 12/45 |
| type of driving | pedestrian | pedestrian | pedestrian | |
| material of wheel | Polyurethane | Polyurethane | Polyurethane | |
| net weight | kg | 193 | 200 | 219 |
| Manufacturer | NOELIFT | |||
| Model | CDD05Z | |||
| Operation | Manual Driving, Electrical Lifting | |||
| capacity | kg | 500 | 500 | 500 |
| loading center | mm | 400 | 400 | 400 |
| wheelbase | mm | 860 | 860 | 860 |
| front wheel distance | mm | 380 | 380 | 380 |
| rear track | mm | 670 | 670 | 670 |
| min.fork height | mm | 90 | 90 | 90 |
| max.fork height | mm | 800 | 1000 | 1300 |
| steeling wheel | mm | Φ100x45 | Φ100x45 | Φ100x45 |
| loading wheel | mm | Φ70x60 | Φ70x60 | Φ70x60 |
| overall lenghth | mm | 1600 | 1600 | 1600 |
| overall width | mm | 780 | 780 | 780 |
| fork size | mm | 1150*540 | 1150*540 | 1150*540 |
| forkwidth | mm | 535 | 535 | 535 |
| turning radius | mm | 1100 | 1200 | 1200 |
| lifting speed | mm/s | 80 | 80 | 80 |
| descent speed | mm/s | 90 | 90 | 90 |
| lifting motor power | kw | 12v/0.8 | 12v/0.8 | 12v/0.8 |
| battery | V/AH | 12/45 | 12/45 | 12/45 |
| type of driving | pedestrian | pedestrian | pedestrian | |
| material of wheel | Polyurethane | Polyurethane | Polyurethane | |
| net weight | kg | 193 | 200 | 219 |
