Paper Roll Handler
China warehouse Equipments wholesale
China warehouse Equipments

Paper Roll Handler

Name: China Cheap Paper Roll Handler Manufacturers - Wholesale Paper Roll Handler Made in China
Brand: Noelift
SKU: 108910813

Product Description Product Application 2ton electric pallet stacker, TB Series steering wheel full electric pallet stacker with Paper Roll Clamp, rated load capacity: 2000kg, lift height: 1600-5000mm, used for single face pallet; loaing & unloading goods, carrying goods from warehouse to...

Send Inquiry

Product Introduction

Product Description

1.5ton / 2.0t full electric pallet stacker TB15 / TB20 model

TB Series steering wheel pallet stacker with different opening range paper roll clamp attachment,

rated load capacity: 1500kg / 2000kg.

lift height: 1600-4500mm, used for single face pallet;
Suitable for different size rolls, reels.

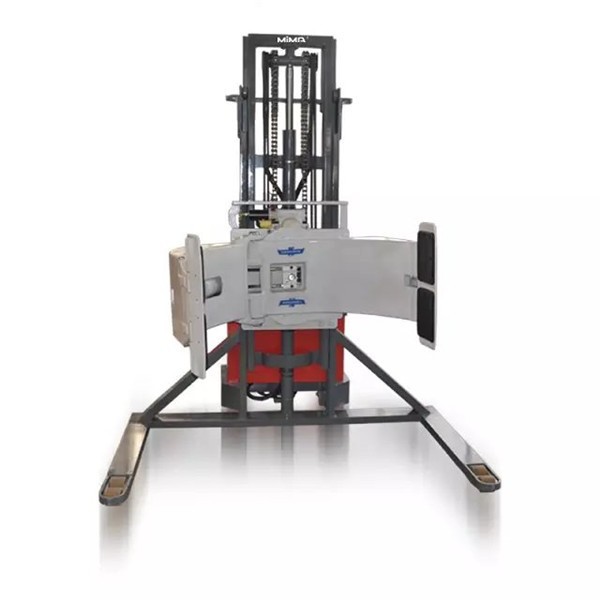

Walk-Behind Electric Stacker 2000kg with Paper Roll Clamp

Advantages:

1. With EPS steering system, energy-saving, easy to operate;
2. Electronic type braking;
3. To use intelligent charger,auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectivly;
4. Speed Limited for high position, to aviod the possibility of products' overturning when high speed in high position;
5. High Strength overhead guard to protect the operator.

6. PU tire, suitable for using indoors.

Walk-Behind Electric Stacker 2000kg with Paper Roll Clamp

Techenical details

1.0t/1.5t/2.0t electric pallet stacker
1.0t/1.5t/2.0t electric pallet stacker
1	Model		TB10	TB15	TB20
2	Power Type		BATTERY
3	Rated Capacity	kg	1000	1500	2000
4	Load Centre	mm	500
5	* Lift Height	mm	3000	3000	3000
6	* Fork Size (L×W×T)	mm	1150x190x75	1150X190X75	1150X190X75
7	Overall length (Without fork)	mm	2045	2045	2045
8	Overall Width	mm	850	850	850
9	Outer distance between forkd	mm	680	680	680
10	Aisle width for pallet 1000x1200mm crossway	mm	553	2553	2553
11	Turning radius	mm	1725	1725	1725
12	Wheel		PU	PU	PU
Lift height :1.6-6.0M
Additional : bale clamp / paper roll clamp
Customize disegn by your requirements.

Electric straddle stacker with foam clamp

Walk-Behind Electric Stacker 2000kg with Paper Roll Clamp

OUR CERTIFICATIONS

NOELIFT FACTORY

We engage in manufacturing of Electric Paper Reel Stacker which are used in Paper industry for the moving of Paper rolls from one places to another for more than 10 years.
