1500kg Adjustable Strradle Leg Electric Stacker
ELECTRIC PALLET STACKER Description

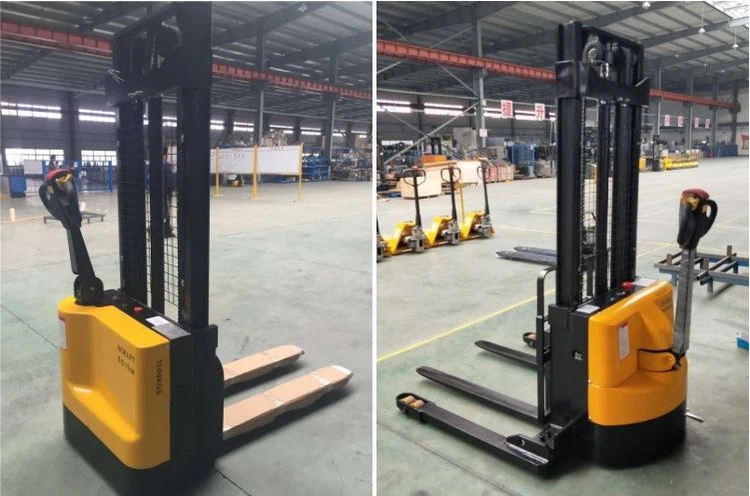

1.2t/1.5t Electric PALLET (STRADDLE) Stacker
· The ES15M is an economic walkie electric stacker, with rated capacity of 1500kg/3000lbs and lifting heights from 1600mm/63inch to 3500mm/138inch.
· The compact and light design is suitable for a variety of light duty applications in warehouses.
ADVANTAGES
· Ideal solution for light-duty applications.
· Battery discharge indicator with automatic lift cut-off function for higher battery lifetime.
· 4-wheel design with sideway tiller allowing high stability and perfect view.
· Built-win charger for high autonomy.
Important parameters
| MODEL | ES15M/ES15MS | |
| POWER | ELECTRIC | |
| OPERATION | WALKIE | |
| TRAVELING MOTOR | 0.75DC | |
| LIFTING MOTOR | DC 2.2kw | |
| RATED CAPACITY | kg | 1500 |
| LOAD CENTER | mm | 500 |
| LIFTING HEIGHT | Mm | 1.6m/2.5m/3.0m/3.3m |
| MAST CLOSED HEIGHT | mm | 2150/1785/2035/2185 |
| TOTAL LENGTH | mm | 1716 |
| TOTAL WIDTH | mm | 1270 |
| TURNING RADIUS | mm | 1378 |
| FORKS LOWERED HEIGHT | mm | 85 |
| SERVICE WEITHG(WITH BATTERY) | kg | 510/580/610/640 |
