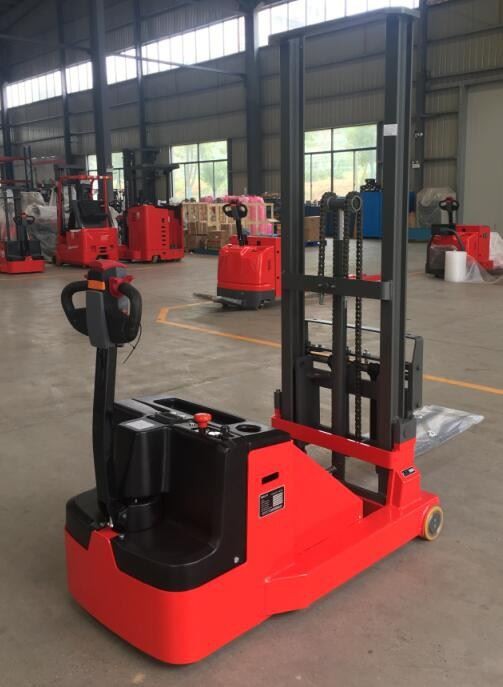

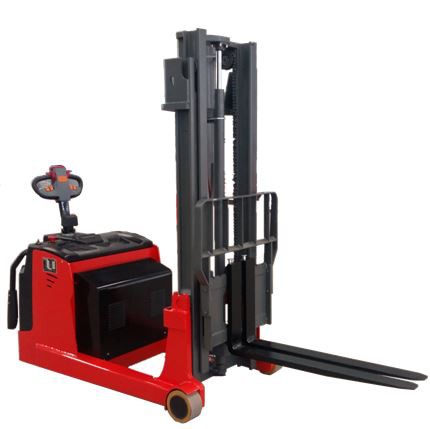

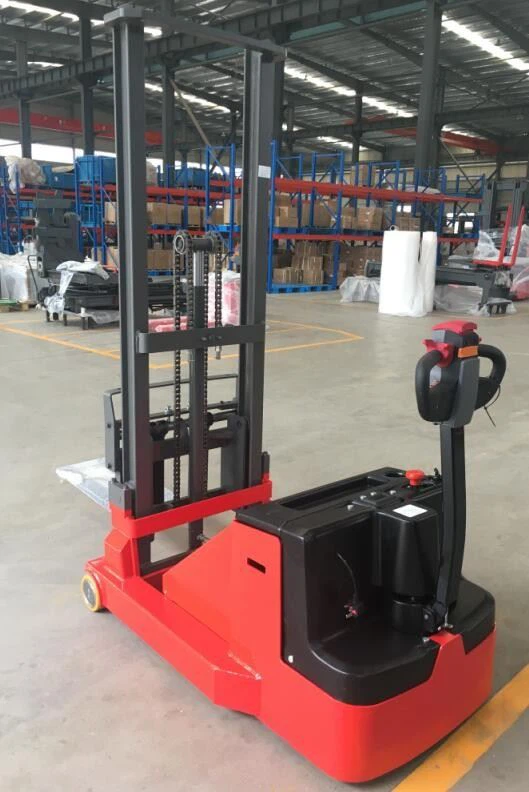

Single Or Double Side Pallet Electric Economic Pallet Lift Stacker
PRODUCT DESCREPTION
ELECTRIC PALLET STACKER FEATURE
TBB Series is counterbalance pallet stacker, rated load capacity: 1000KG, lift height: 3000mm, used for double/single face pallet; 1.Vertical Drive system,to save the energy and have long time working; 2.Regenerative braking function to reduce the operation cost; 3.Speed Limited for high position, to aviod the possibility of products' overturning when high speed in high position; 4.Shock Absorption of Pedal, to ensure the comfortable of working and reduce the fatigue;. 5.Reinforced Mast, to ensure the mast are not out of shape and lift the goods smoothly; 6.Ergonomics multi-functional operation handle to increase the comfortable degree.
ELECTRIC PALLET STACKER SPECIFICATIONS
Description | Electric pallet stacker with counterbalance-TBB | ||
Model | TBB10-16 | TBB10-25 | TBB10-30 |
Load capacity Kg | 1000 | 1000 | 1000 |
Load center mm | 500 | 500 | 500 |
Max. lifting height mm | 1600 | 2500 | 3000 |
Wheel type | Polyurethane solid tire | ||
Fork size(LxW)mm | 1070*100 | 1070*100 | 1070*100 |
Overall length mm | 2750 | 2750 | 2750 |
Overall width mm | 1010 | 1010 | 1010 |
Overall height mast closed mm | 2140 | 1856 | 2106 |
Overall height fork raised(with backrest) mm | 2460 | 3360 | 3860 |
Outside turning radius mm | 1510 | 1510 | 1510 |
Total weight( with battery) Kg | ~1700 | ~1755 | ~1770 |
Battery V/Ah | 24/210 | 24/210 | 24/210 |
Charger V/A | 24/30 | 24/30 | 24/30 |
CAPACITY CHART

Certifications

Our Services
NOELIFT service cover the whole life of the machine you purchase.When you first inquire our machine,we provide the full data and information to make sure this is the best choice for you.When the machine deliver to you,we will have professional maintenance advice and service manual to help you keep the machine under very good operation condition.Even if the machine have problem,we have a full time service system to make sure no deplay happen and minimize the downtime and maximize the machine efficiency.
Company Information
NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1 to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in International packing standard way with additional special fixed. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What's your warranty?
Key parts for 12?months. Easily damaged parts are not in the range of the warranty. During the warranty term, key parts are damaged (not caused by improper operation), seller will compensate buyer with the replacement parts free of charge. Buyer will show seller clear picture to verify they are damaged indeed. If necessary, seller can ask buyer to return the damaged parts.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Contact me right now for more information! Online 24 hours one day!
Hot Tags: single or double side pallet electric economic pallet lift stacker, China single or double side pallet electric economic pallet lift stacker manufacturers
